Panduit F1X4LG6 Narrow Slot Wiring Duct No Cover

Product Description

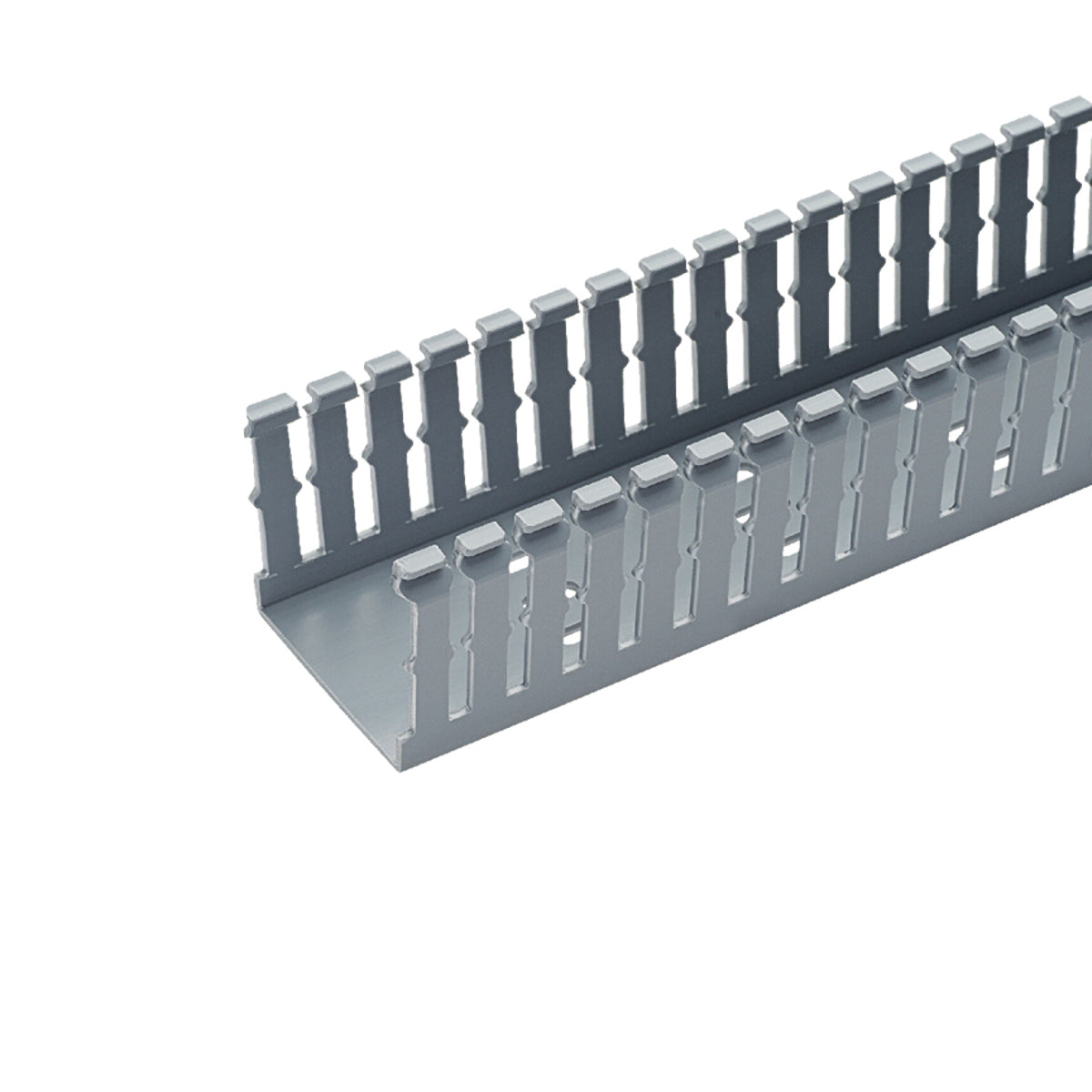

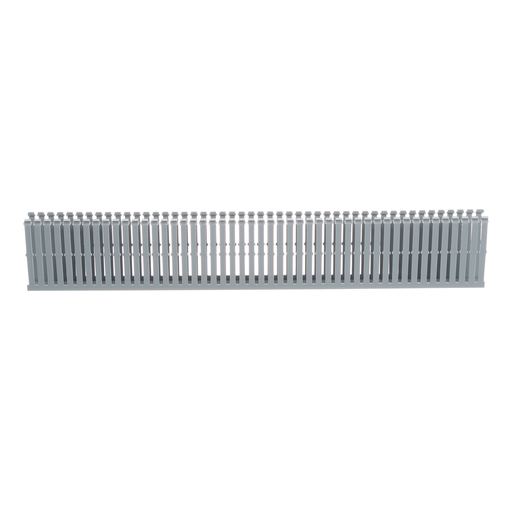

The Panduit F1X4LG6 is a narrow slot wiring duct made from lead-free PVC. It features a design that matches the spacing of high-density components. The product includes upper and lower scorelines for easy removal of parts, making installation straightforward. It has a UL 94 flame class rating of V-0 and can be used continuously at temperatures up to 122F (50C). The duct has mounting holes included for secure attachment. The dimensions are 4.1 inches by 1.25 inches and length of 6 feet. A cover is sold separately.

• Lead-free PVC construction
• Dimensions: 4.1 inches x 1.25 inches, 6 feet long
• UL recognized for flame class V-0

Product Highlights

Designed for high-density environments, this wiring duct is ideal for organizing and protecting wires in various applications.

Product Information

Standard Information

• Brand: Panduit
• MPN: F1X4LG6

Technical Specifications

• Material: Lead-free PVC
• Temperature Rating: 50C (122F)
• Flammability Rating: UL 94 V-0
• Dimensions: 4.1 inches x 1.25 inches
• Length: 6 feet
• Mounting Type: Mounting holes provided
• Color: Light Gray
• Slot Width: 0.2 inches
