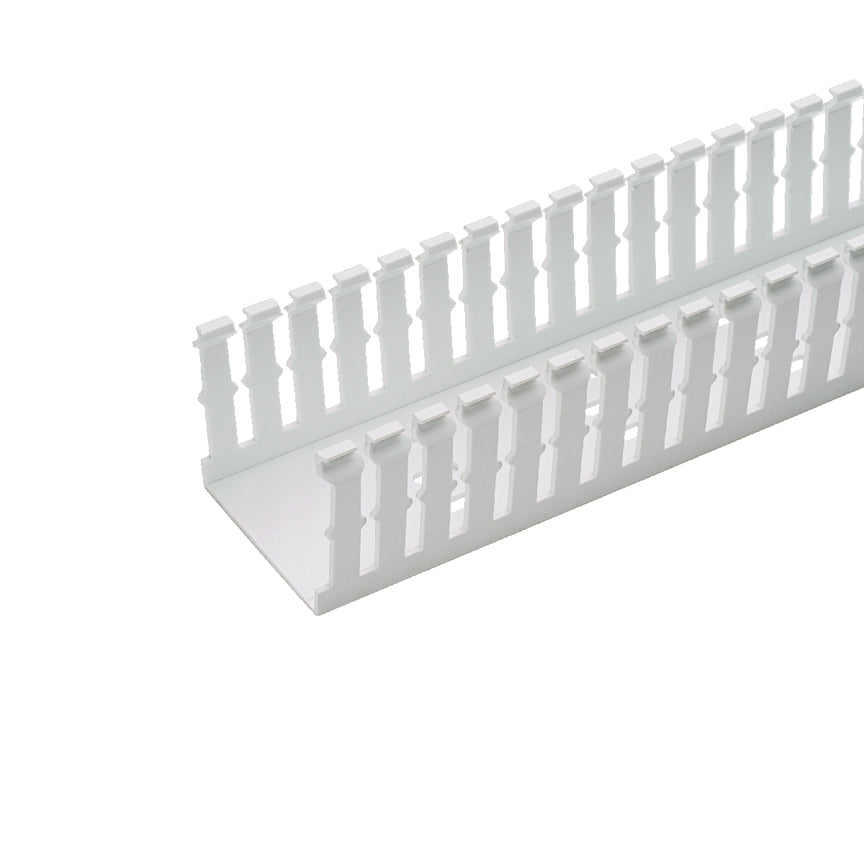

Panduit F1X3WH6 Base Wiring Duct

Product Description

The F1X3WH6 Base Wiring Duct by Panduit is designed for effective wiring management. The duct features a lead-free PVC construction with a narrow slot design that fits closely to the spacing of high-density components. It is equipped with upper and lower scorelines for easy removal of sidewall sections. The product has a UL 94 flame rating of V-0, suitable for continuous use at temperatures up to one hundred twenty-two degrees Fahrenheit. It includes mounting holes for straightforward installation.

• Lead-free PVC material
• UL recognized for safety with appropriate temperature ratings
• Narrow slot design for improved component fitting

Product Highlights

This duct is ideal for applications where organized and efficient wiring is critical. It supports high-density terminal blocks, effectively reducing scrap and labor costs during installation and maintenance.

Product Information

Standard Information

• Brand: Panduit
• MPN: F1X3WH6

Technical Specifications

• Material: Lead-free PVC
• Color: White
• Dimensions: 1 x 3 inches (25.4 mm x 76.2 mm)
• Length: 6 feet (1.83 m)
• Flame Rating: UL 94 V-0
• Continuous Use Temperature: Up to 122F (50C)
• Mounting Type: Holes provided for mounting
• Slot Style: Narrow Slot
• Slot Pitch: 0.2 inches
• Application: Suitable for high-density terminal blocks
• Country of Origin: United States
