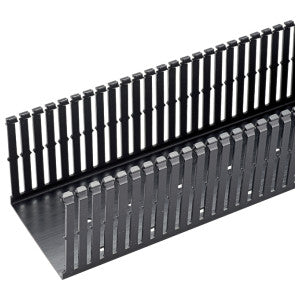

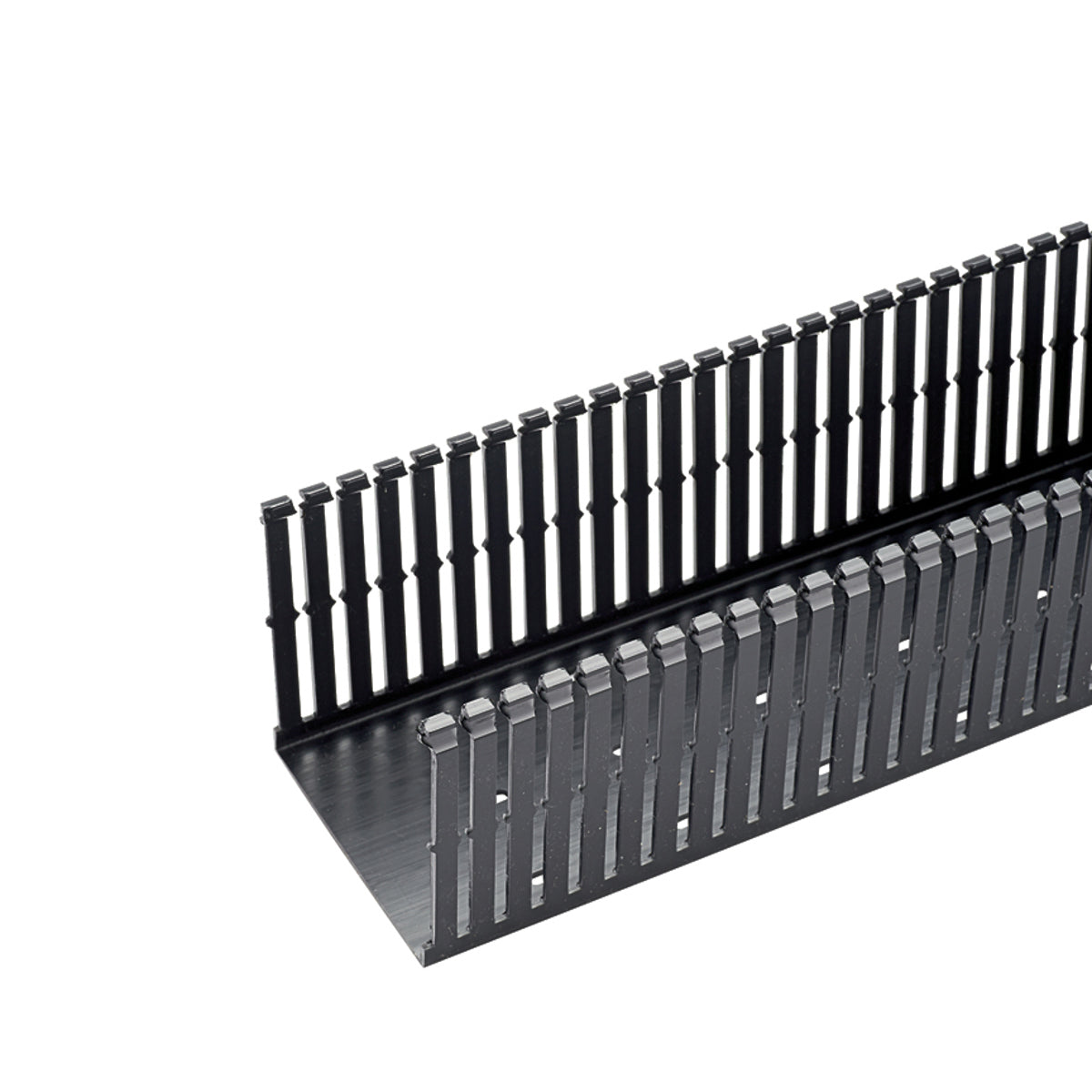

Panduit F1X3BL6 Panduct Base Wiring Duct 1 inches x 3 inches x 6ft

Product Description

The PANDUIT F1X3BL6 Panduct Lead-Free PVC Narrow Slot Wiring Duct features a narrow slot/finger design that closely matches the spacing of high-density components. Upper and lower scorelines allow for easy finger/sidewall section removal. Mounting holes are provided. It measures 1 x 3 (25.4 mm x 76.2 mm) and 6' (1.83 m) long.

• Narrow slot/finger design provides more slots to fit the spacing of high-density terminal block applications
• Features upper and lower scorelines for easy finger and sidewall section removals
• Provided with mounting holes

Product Highlights

The Panduit F1X3BL6 is a type F narrow slot wiring duct for efficient cable management in control panels. It provides a secure and organized solution for high-density wiring.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: F1X3BL6
• Country of Origin: USA

Technical Specifications

• Catalog Number: F1X3BL6
• Manufacturer: PANDUIT
• Brand: Panduit
• Sub Brand: Panduct
• Country of Origin: United States
• Made in USA: Yes
• Application: Narrow slot/finger design provides more slots to fit the spacing of high-density terminal block applications
• Color: Black
• Connection: Mounting Holes
• Material: PVC
• Slot Pitch: 0.2 IN
• Slot Style: Slotted
• Standard: RoHS Compliant, UL Recognized, CE Compliant
• UPC: 074983074648
• GTIN: 00074983074648
• Item Type: Base Wiring Duct
• Width: 1.25 in
• Size: 1.00 x 3.00
• Category: Cables, Wires - Management
• Wire Ducts, Raceways: Wire Ducts, Raceways
• Length: 6 ft
• Series: PANDUCT Type F
• Mounting Type: Mounting Holes
• Packaging: Bulk
• Wire Duct Type: Slotted (Raceway), Base
• Base Product Number: F1X3BL
• Height: 3.13 in
• Applications: Indoor
• Overall Length: 6 ft
• Buy American Compliant: Y
• Standards and Certifications: Standards Met: RoHS Compliant, UL Recognized, CE Compliant, BABA Compliant
• ECCN: EAR99
• Flammability Rating: UL94 V-0
• Color Family: Black
• Adhesive Backed: false
• Depth: 3 in
• Slot Size: 5.1 mm W
• Slot Type: Narrow
• Thickness: 0.09 in
• External Height - Metric: 79.4mm
• External Width - Metric: 32mm
• Length - Metric: 1.8m
• External Height - Imperial: 3.13"
• External Width - Imperial: 1.25"
• Length - Imperial: 6ft
• Raceway / Duct Color: Black
• Raceway / Duct Material: PVC (Polyvinylchloride)
• SVHC: No SVHC (04-Feb-2026)
