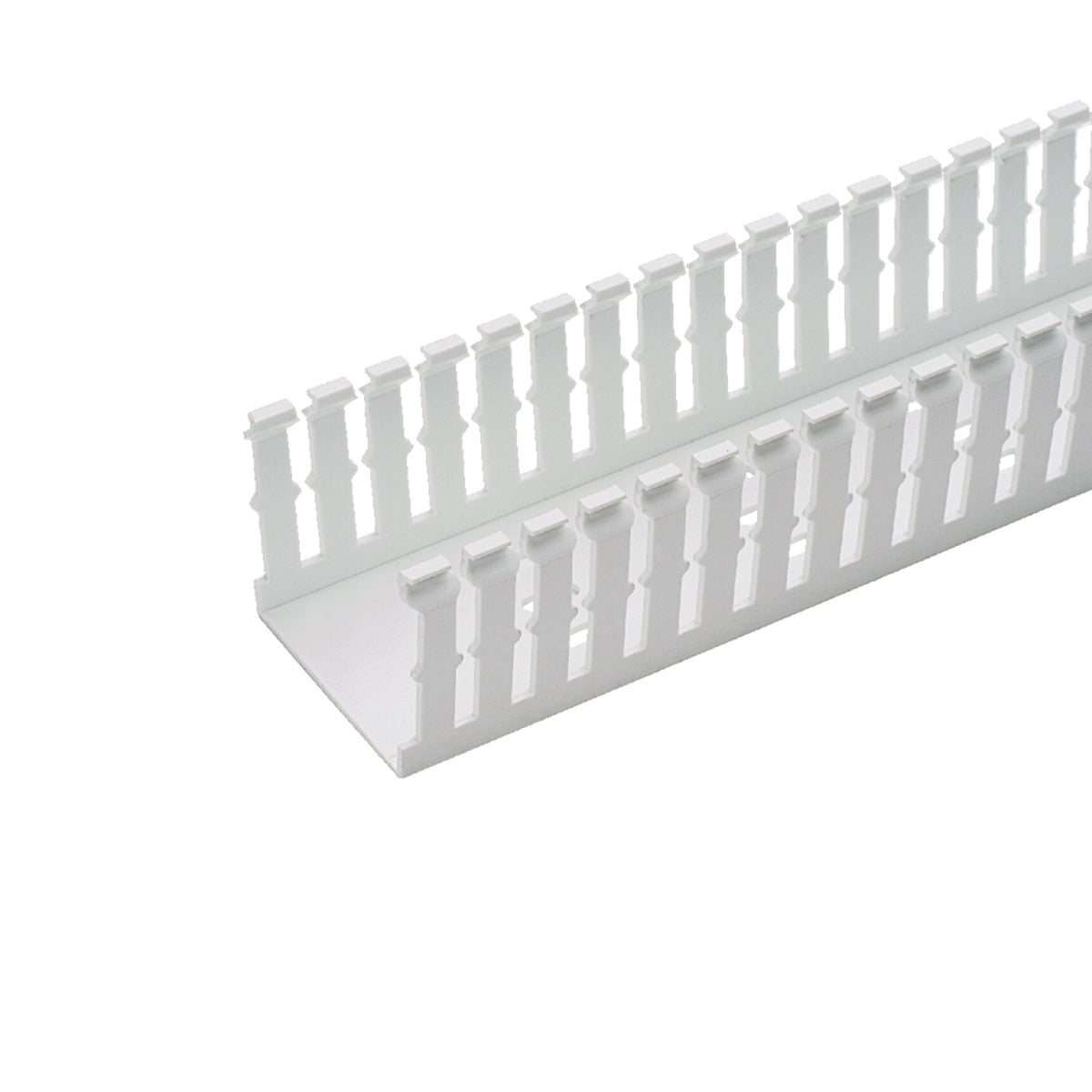

Panduit F1X2WH6 Sltd Wirg Duct 1.00 x 2.00

Product Description

The PANDUIT F1X2WH6 Panduct Lead-Free PVC Narrow Slot Wiring Duct features a narrow slot/finger design that closely matches the spacing of high-density components. Upper and lower scorelines allow for easy finger/sidewall section removal. It has UL 94 flame.

• Narrow slot/finger design provides more slots to fit the spacing of high-density terminal block applications
• Fits the spacing of high terminal blocks and other hardware
• Provided with mounting holes

Product Highlights

The PANDUIT F1X2WH6 is ideal for managing and organizing wiring with its narrow slot design and easy installation.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: F1X2WH6
• Country of Origin: United States

Technical Specifications

• IGCC: 5580
• Size: 1.00 x 2.00
• Type: Base Wiring Duct
• Color: White
• Width: 1.25 In.
• Height: 2.12 IN
• Length: NA
• Vendor: 74983
• Weight: 1.29
• Material: PVC
• Standard: RoHS Compliant, UL Recognized, CE Compliant; CSA Approved
• Connection: Mounting Holes
• Slot Pitch: 0.2 In.
• Slot Style: Slotted
• Application: Narrow slot/finger design provides more slots to fit the spacing of high-density
• Family group: WIRE MANAGEMENT/ID
• Manufacturer: PANDUIT
• Adhesive Backed: Mounting Holes
• WES Product code: 2885400131
• Catalog Number: F1X2WH6
• Brand: Panduit
• Sub Brand: Panduct
• Country of Origin: United States
• Made in USA: Yes
• UPC: 074983375103
• GTIN: 00074983375103
• Item Type: Base Wiring Duct
• Width UOM: Inch
• ECCN: EAR99
• UNSPSC: 39131712
• Connection Type: Standard Mounting Holes
• Flammability Rating: UL94V-0
• Color Family: White
• Adhesive_Backed: False
• Special Features: Narrow finger and slot design closely matches the spacing of high-density components Upper and lower scorelines allows easy finger and sidewall section removals
• Thickness: 2
• Sub_Brand: Panduit
• Overall Width: 1.25 in, 31.8 mm
• Overall Height: 2.12 in, 53.8 mm
• Overall Length: 1.8 m, 6 ft
• Slot Width: .2 in, 5.1 mm
• Product Type: Narrow Slot Wiring Duct
• SKU: PANF1X2WH6
• Item Diameter: 3
• Maximum Operating Temperature: 50 °C (122 °F)
• Flexibility: Semi-Flexible
