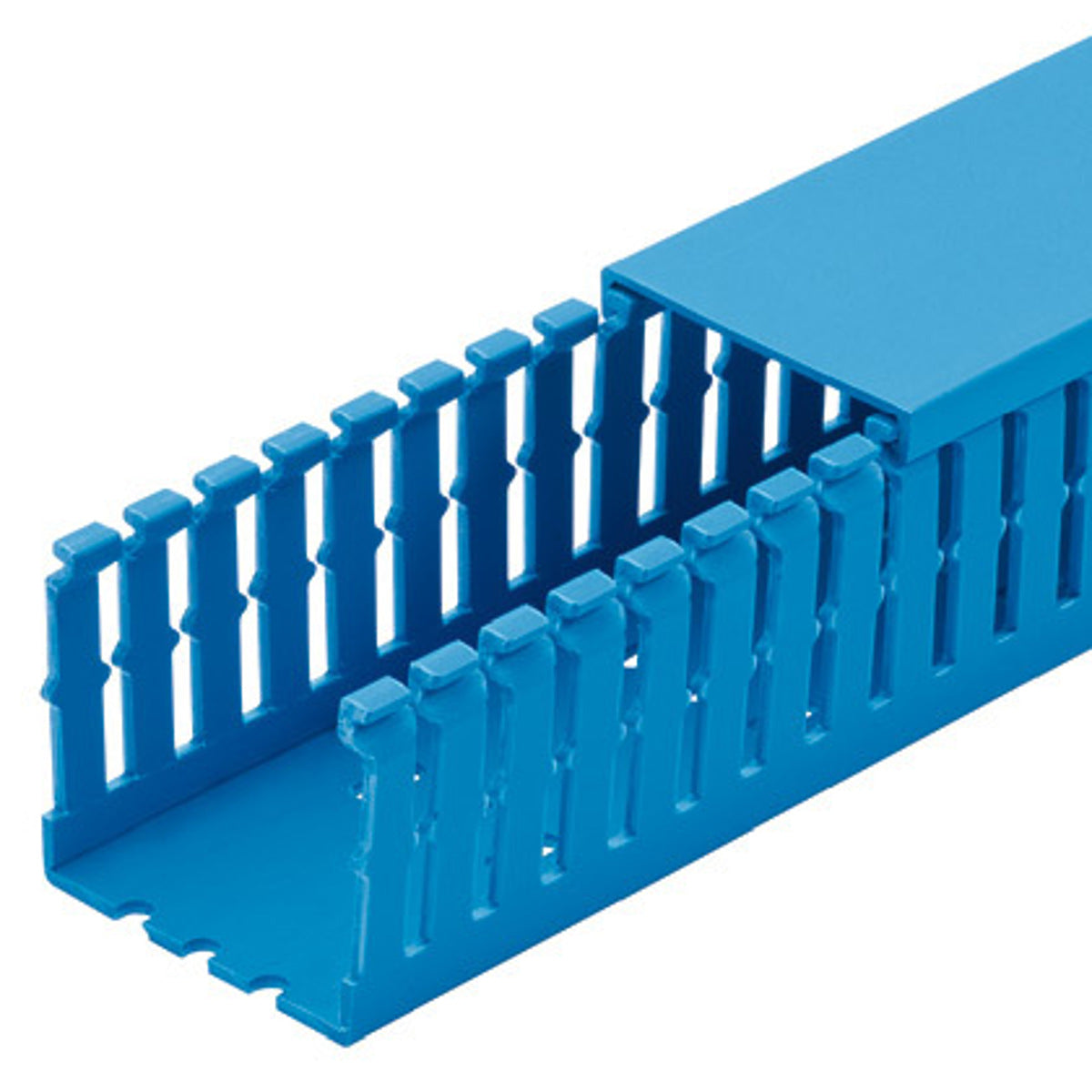

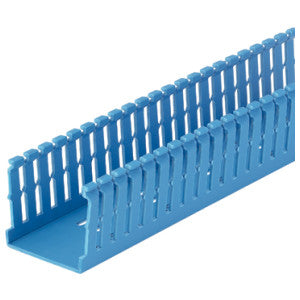

Panduit F1X2IB6 Panduct Base Wiring Duct 1 x 2

Product Description

The PANDUIT F1X2IB6 Panduct Lead-Free PVC Narrow Slot Wiring Duct features a narrow slot/finger design that closely matches the spacing of high-density components. Upper and lower scorelines allow for easy finger/sidewall section removal. It has mounting holes and measures 1 x 2 (25.4 mm x 50.8 mm) and 6' (1.83 m) long.

• Narrow slot/finger design provides more slots to fit the spacing of high-density terminal block applications
• Easy finger/sidewall section removal
• Mounting holes provided

Product Highlights

The F1X2IB6 wiring duct is ideal for cable organization with high-density components. It is RoHS and CE compliant and UL Recognized.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: F1X2IB6
• Country of Origin: United States

Technical Specifications

• Catalog Number: F1X2IB6
• Manufacturer: Panduit
• Brand: Panduit
• Sub Brand: Panduct
• Country of Origin: United States
• Made in USA: Yes
• Application: Narrow slot/finger design provides more slots to fit the spacing of high-density terminal block applications
• Material: PVC
• Slot Pitch: 0.2 IN
• Slot Style: Slotted
• Special Features: Narrow Slotted
• Standard: RoHS Compliant, UL Recognized, CE Compliant
• UPC: 074983017966
• GTIN: 00074983017966
• Item Type: Base Wiring Duct
• Width: 1.25 Inch
• Size: 1.00 x 2.00
• Thickness: 0.08 IN
• Category: Cables, Wires - Management
• Wire Ducts, Raceways: Wire Ducts, Raceways
• Length: 6.00' (1.83m)
• Series: PANDUCT Type F
• Mounting Type: Screw
• Packaging: Bulk
• Part Status: Active
• Wire Duct Type: Slotted (Raceway), Base
• Base Product Number: F1X2IB
• Height: 2.010" (51.05mm)
• Overall Width: 1.25 in, 31.8 mm
• Overall Height: 2.12 in, 53.8 mm
• Overall Length: 1.8 m, 6 ft
• Slot Width: .2 in, 5.1 mm
• Product Type: Cable Organizer
• SKU: PANF1X2IB6
• Environmental Initiative: ROHS
• Compliant: Yes
• Type: Base Type F Narrow slot
• Slot Size: 5 mm
• TC Connection: Standard Mounting Holes
• 12-Digit UPC: 074983017966
• Depth: 2 Inch
• Standards Met: RoHS Compliant, UL Recognized, CE Compliant, BABA Compliant
• ECCN: EAR99
• Flammability Rating: UL94 V-0
• Color Family: Blue
• ADI Part Number: P9-F1X2IB6
• Manufacturer Part Number: F1X2IB6
• Packaged Quantity: 6
• Product Line: Panduct
• Product Name: Panduct Cover
• Environmentally Friendly: Yes
• UNSPSC Code: 39131712
• Components: SLOTTED DUCT HIGH DENSITY
