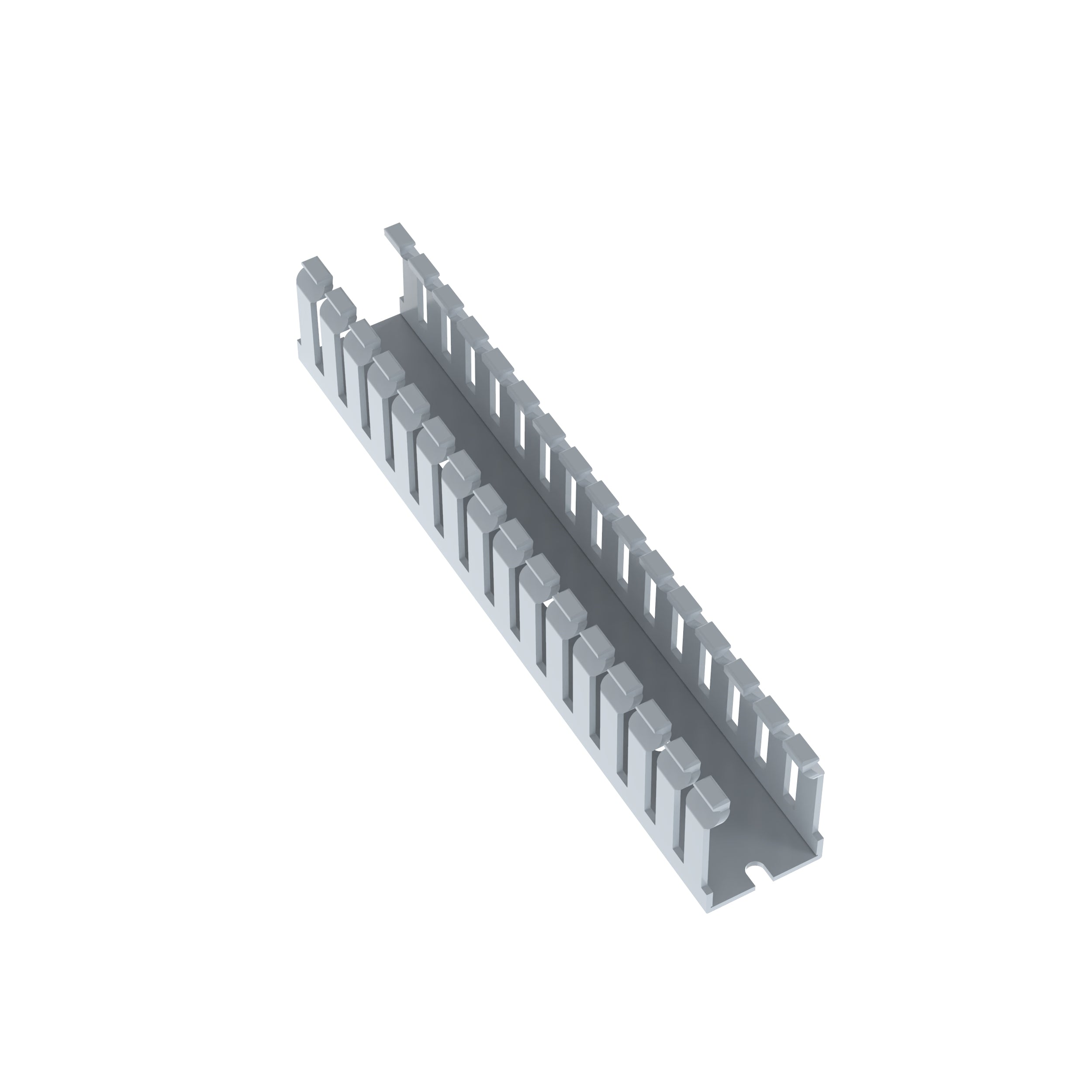

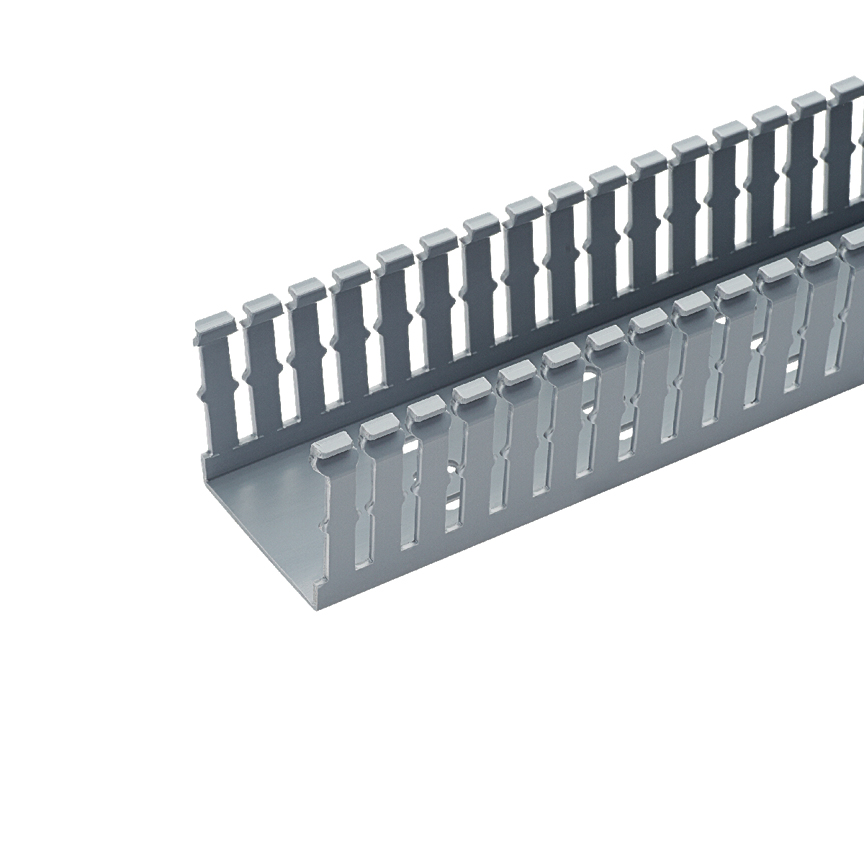

Panduit F1X1.5LG6 narrow slotted wiring duct 6 foot

Product Description

The PANDUIT F1X1.5LG6 Panduct Lead-Free PVC Narrow Slot Wiring Duct features a narrow slot/finger design that closely matches the spacing of high-density components. Upper and lower scorelines allow for easy finger/sidewall section removal. Mounting holes are provided. It is 1.62" x 1.25" (41.1 mm x 31.8 mm) and 6' (1.83 m) long.

• Narrow finger and slot design closely matches the spacing of high density components
• Upper and lower scorelines allows easy finger and sidewall section removals
• Provided with mounting holes

Product Highlights

The F1X1.5LG6 is ideal for use with high density terminal blocks and other hardware. It reduces scrap and labor costs by protecting the surface during storage, handling, installation and use.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: F1X1.5LG6
• Country of Origin: USA

Technical Specifications

• Manufacturer Part Number: F1X1.5LG6
• Adhesive Backed: Yes
• Application: For reducing scrap and labor costs by protecting the surface during storage, handling, installation and use with high density terminal blocks and other hardware
• Color: Light Gray
• Depth: 1-1/2 in
• Includes: Base and Cover
• Length: 6 ft
• Material: PVC
• Mounting Type: Hole
• Slot Size: 0.2 in
• Slot Type: Narrow Slot
• Standards/Approvals: ARRA Compliant|ASTM D882|Buy American Act Compliant|CE Marked|CSA Certified|NFPA 79|RoHS Compliant|UL Listed|UL94 V-0 Flammability Rated
• Type: Type F
• Width: 1-1/4 in
• Category: Cables, Wires - Management
• Wire Ducts, Raceways: Wire Ducts, Raceways
• Series: PANDUCT Type F
• Packaging: Bulk
• Base Product Number: F1X1.5
• Height: 1.510" (38.35mm)
• RoHS Status: ROHS3 Compliant
• Applications: For Indoor use
• Brand: Panduit Corp.
• Sub Brand: Panduct
• Overall Length: 6 ft
• Thickness: 0.07 IN
• Buy American Compliant: Y
• Country of Origin: USA
• Standards Met: RoHS Compliant, UL Recognized, CE Compliant, BABA Compliant
