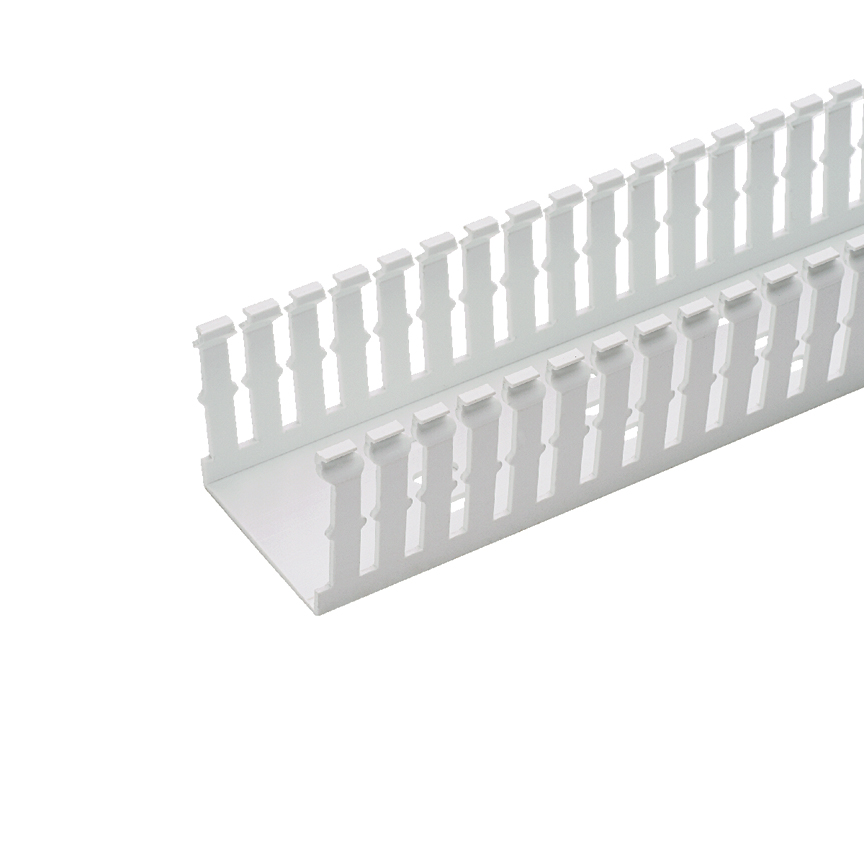

Panduit F1.5X4WH6 Type F Narrow Slotted Duct, PVC, White

Product Description

The Panduit F1.5X4WH6 Type F Narrow Slotted Duct is made of PVC. It has a width of 1-3/4 in, a depth of 4 in, and a length of 6 ft. Designed with narrow slots and mounting holes, it reduces scrap and labor costs by protecting the surface during storage, handling, installation and use with high density terminal blocks and other hardware.

• Narrow finger and slot design closely matches the spacing of high density components
• Upper and lower scorelines allows easy finger and sidewall section removals
• Provided with mounting holes

Product Highlights

The Panduit F1.5X4WH6 is ideal for organizing and protecting wires in high-density applications.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: F1.5X4WH6

Technical Specifications

• Brand: Panduit
• Model / MPN: F1.5X4WH6
• MPN: F1.5X4WH6
• Manufacturer: Panduit
• Adhesive Backed: Yes
• Application: For reducing scrap and labor costs by protecting the surface during storage, handling, installation and use with high density terminal blocks and other hardware
• Color: White
• Depth: 4 in
• Includes: Base and Cover
• Length: 6 ft
• Material: PVC
• Mounting Type: Hole/Threaded
• Slot Size: 0.2 in
• Slot Type: Narrow Slot
• Standards/Approvals: ARRA Compliant|ASTM D882|Buy American Act Compliant|CE Marked|CSA Certified|NFPA 79|RoHS Compliant|UL Listed|UL94 V-0 Flammability Rated
• Type: Type F
• Width: 1-3/4 in
• Thickness: 0.1 in
• Flammability Rating: UL94V-0
• Series: Panduct PanelMax Series
• Height: 4.1"
• Product Type: Cable Routing
• Wire Duct Type: Slotted (Raceway), Base
