Product Description

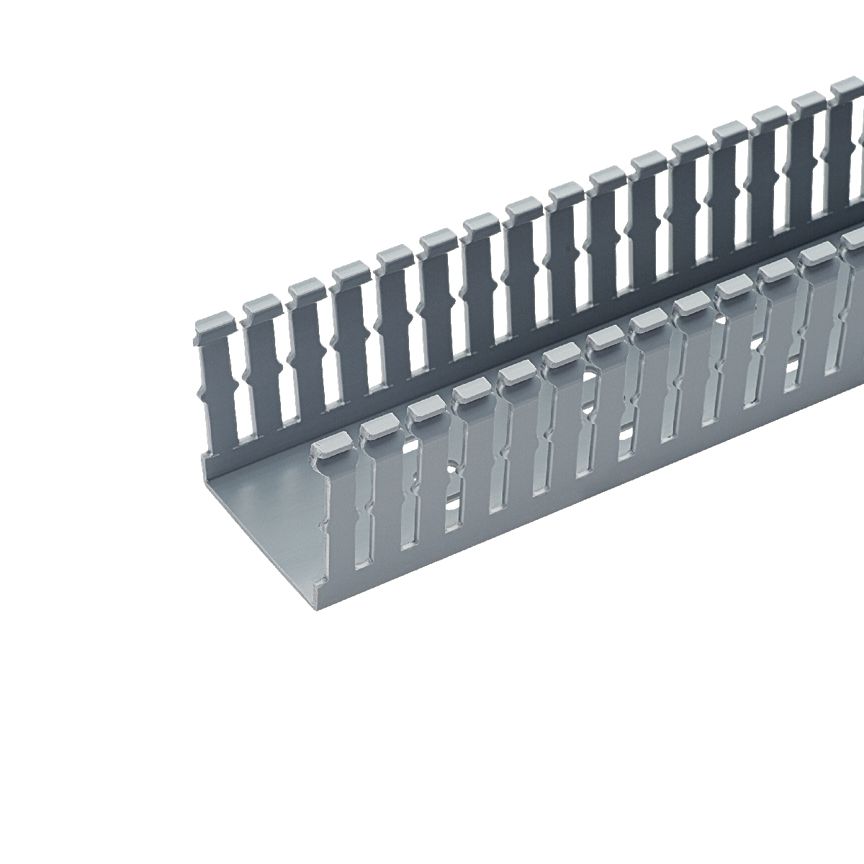

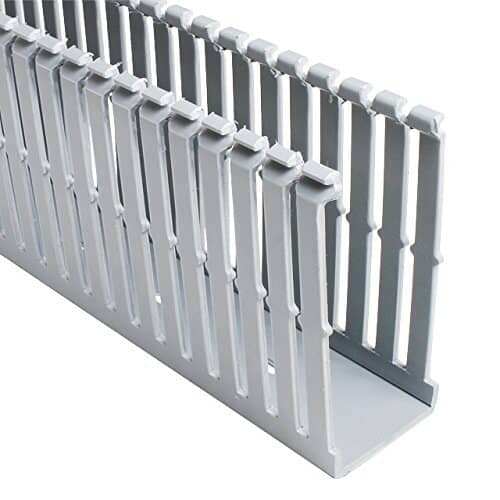

The PANDUIT F1.5X4LG6 Panduct Base Wiring Duct, Type F, with a width of 1-3/4 inches and a depth of 4 inches, comes in a 6 ft length. Features a narrow finger and slot design closely matching the spacing of high-density components. Upper and lower scorelines allow easy finger and sidewall section removals. Provided with mounting holes.
- Narrow finger and slot design closely matches the spacing of high density components
- Upper and lower scorelines allows easy finger and sidewall section removals
- Provided with mounting holes
Product Highlights
The F1.5X4LG6 wiring duct is designed for use with high density terminal blocks and other hardware, reducing scrap and labor costs.
Product Information
Standard Information
-
Brand: PANDUIT
-
Manufacturer Part Number: F1.5X4LG6
-
Country of Origin: USA
Technical Specifications
-
Adhesive Backed: Yes
-
Application: For reducing scrap and labor costs by protecting the surface during storage, handling, installation and use with high density terminal blocks and other hardware
-
Depth: 4 in
-
Includes: Base and Cover
-
Length: 6 ft
-
Manufacturer Part Number: F1.5X4LG6
-
Material: PVC
-
Mounting Type: Hole
-
Slot Size: 0.2 in
-
Slot Type: Narrow Slot
-
Standards/Approvals: ARRA Compliant|ASTM D882|Buy American Act Compliant|CE Marked|CSA Certified|NFPA 79|RoHS Compliant|UL Listed|UL94 V-0 Flammability Rated
-
Type: Type F
-
Width: 1-3/4 in
-
Slot Size (inches): 0.2
-
Brand: Panduit Corp.
-
Sub Brand: Panduct
-
Height: 4.1 Inch
-
Overall Length: 6 ft
-
Thickness: 0.11 IN
-
BAA | Buy American Compliant: Y
-
Standards Met: RoHS Compliant, UL Recognized, CE Compliant, BABA Compliant
-
ECCN: EAR99
-
Country of Origin: US - United States
-
UNSPSC: 39131712
-
Standard: RoHS Compliant, UL Recognized, CE Compliant; CSA Approved
-
Connection Type: Standard Mounting Holes
-
Flammability Rating: UL94V-0
-
Color Family: Gray
