Product Description

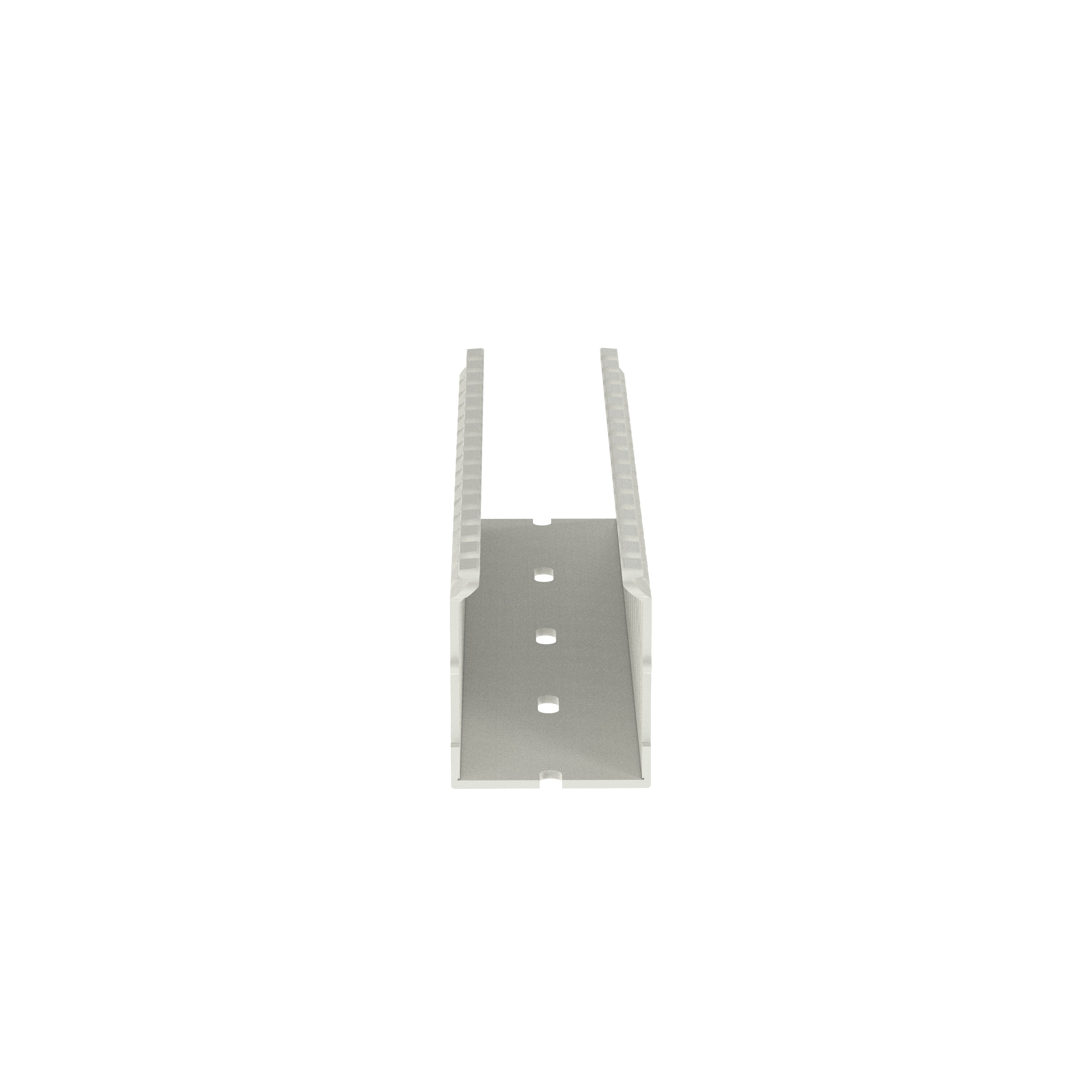

The Panduit F1.5X2WH6 Narrow Slot Wiring Duct is made of lead-free PVC. This wiring duct features a narrow slot design suitable for high-density components. It allows for easy sidewall section removal due to upper and lower scorelines. The UL 94 flame rating of V-0 ensures safety with a recognized continuous use temperature of up to one hundred twenty-two degrees Fahrenheit. Mounting holes are provided for easy installation. Cover for the duct is sold separately.
- Made of lead-free PVC
- UL 94 Flame Class of V-0
- Dimensions: 2.12 inches by 1.75 inches, length 6 feet
Product Highlights
The narrow slot design provides more slots to fit high-density terminal blocks. It is designed for reducing scrap and labor costs during installation.
Product Information
Standard Information
-
Manufacturer: Panduit
-
MPN: F1.5X2WH6
Technical Specifications
-
Material: Lead-free PVC
-
Color: White
-
Height: 2.12 inches
-
Width: 1.75 inches
-
Length: 6 feet
-
Slot Width: 0.20 inches
-
Mounting Type: Hole
-
Flammability Rating: UL 94 V-0
-
Compliance: RoHS, UL recognized, CE compliant, CSA approved
