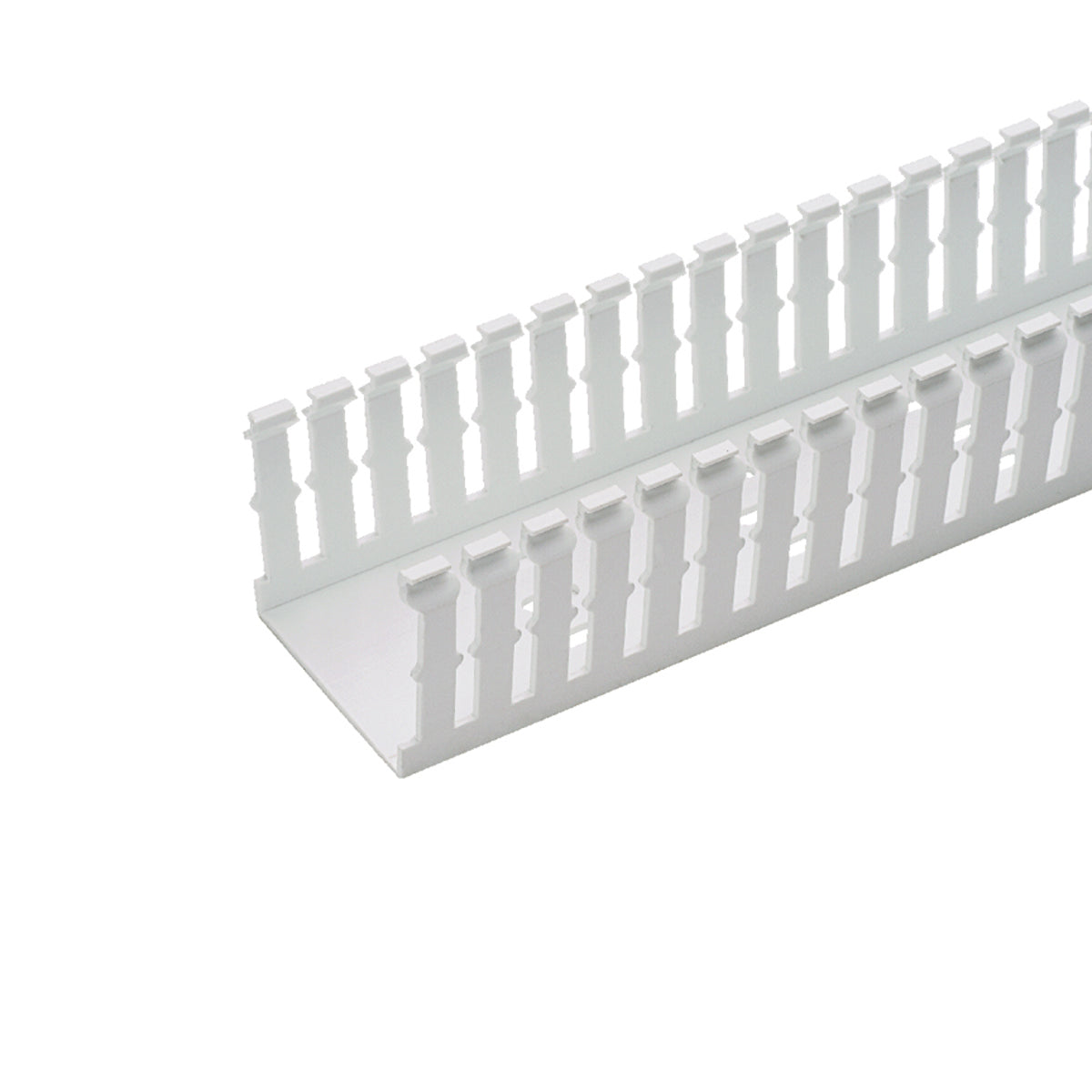

Panduit F.75X1.5WH6 Panduct Base Wiring Duct 0.75 x 1.50

Product Description

The PANDUIT F.75X1.5WH6 Panduct Lead-Free PVC Narrow Slot Wiring Duct features a narrow slot/finger design that closely matches the spacing of high-density components. Upper and lower scorelines allow for easy finger/sidewall section removal. Mounting holes are provided. Cover sold separately.

• Narrow slot/finger design provides more slots to fit the spacing of high-density terminal block applications
• Upper and lower scorelines allow for easy finger/sidewall section removal
• Mounting holes provided

Product Highlights

The PANDUIT F.75X1.5WH6 is ideal for high-density terminal block applications.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: F.75X1.5WH6
• Country of Origin: United States

Technical Specifications

• Catalog Number: F.75X1.5WH6
• Manufacturer: Panduit
• Brand: Panduit
• Sub Brand: Panduct
• Country of Origin: United States
• Made in USA: Yes
• Application: Narrow slot/finger design provides more slots to fit the spacing of high-density terminal block applications
• Color: White
• Connection: Mounting Holes
• Material: PVC
• Slot Pitch: 0.2 IN
• Slot Style: Slotted
• Standard: RoHS Compliant, UL Recognized, CE Compliant; CSA Approved
• UPC: 074983374960
• GTIN: 00074983374960
• Item Type: Base Wiring Duct
• Width: 0.94
• Width UOM: Inch
• Size: 0.75 x 1.50
• Category: Cables, Wires - Management
• Wire Ducts, Raceways: Wire Ducts, Raceways
• Length: 6.00' (1.83m)
• Series: PANDUCT Type F
• Mounting Type: Hole
• Packaging: Bulk
• Part Status: Active
• Wire Duct Type: Slotted (Raceway), Base
• Base Product Number: F.75X1
• Applications: Narrow slot/finger design provides more slots to fit the spacing of high-density terminal block applications
• TC Connection: Mounting Holes
• Type: Type F
• Pkg Qty: 6
• 12-Digit UPC: 074983374960
• Overall Length: 6 ft
• Thickness: 0.07 IN
• Buy American Compliant: Y
• Standards Met: RoHS Compliant, UL Recognized, CE Compliant, BABA Compliant
• ECCN: EAR99
• UNSPSC: 39131712
• Flammability Rating: UL94V-0
• Color Family: White
• Depth: 1-1/2 in
• Manufacturer Name: Panduit
• Slot Size: 0.2 in
• Slot Type: Narrow Slot
