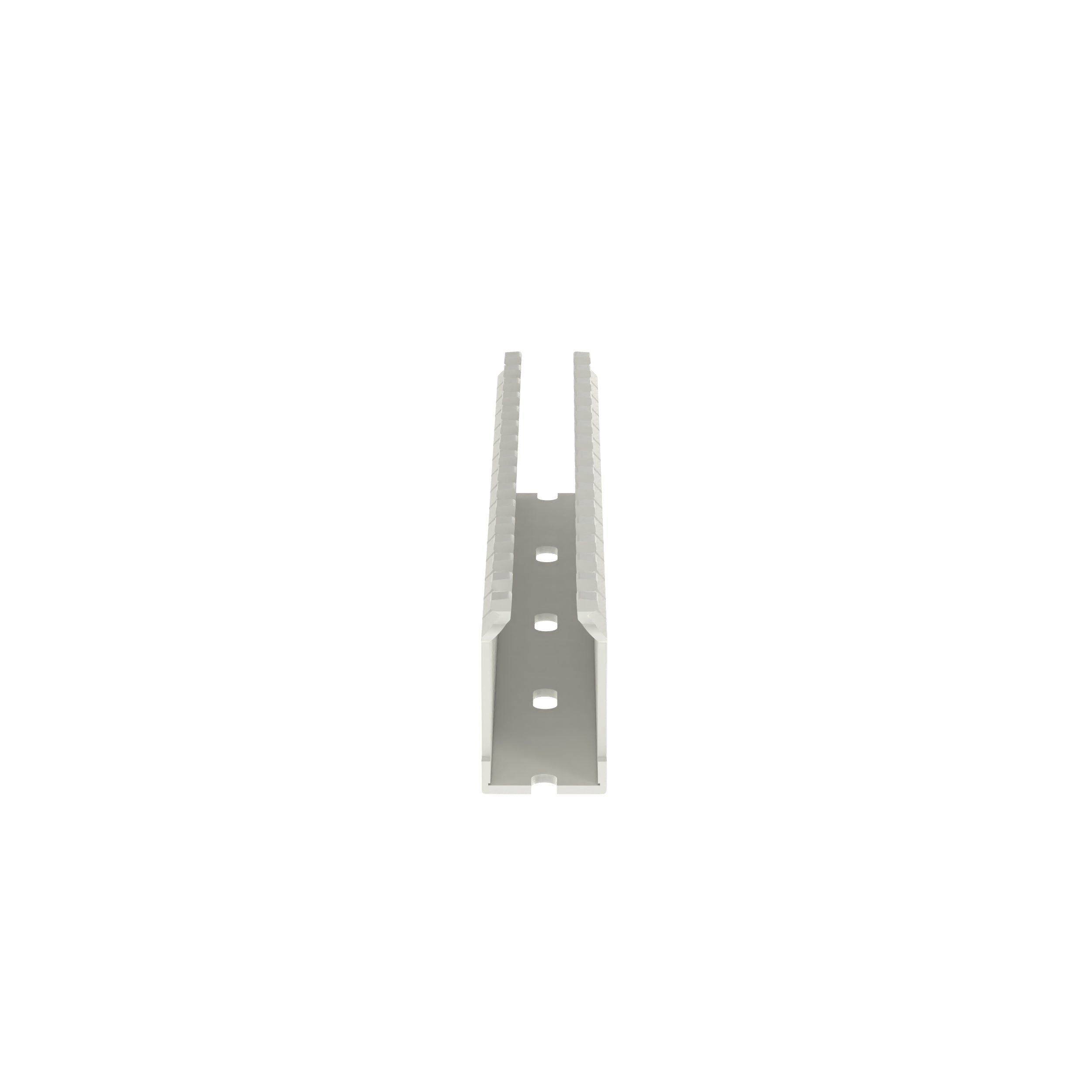

Panduit F.75X1.5WH6 Narrow Slot Wiring Duct No Cover

Product Description

The Panduit F.75X1.5WH6 is a lead-free PVC narrow slot wiring duct designed for high-density applications. This wiring duct features a narrow finger design that allows it to match the spacing of high-density components closely. It includes upper and lower scorelines for easy removal of sidewall sections. The duct is UL 94 flame class V-0 rated and can handle continuous use temperatures up to 122F (50C). Additionally, mounting holes are available for easier installation. This product measures one point five inches in height and point seventy-five inches in width, and comes in a six-foot length. Covers are sold separately.

• Lead-free PVC construction
• UL Recognized continuous-use temperature: 122F (50C)
• Mounting holes for easy installation

Product Highlights

The wiring duct is ideal for routing electrical wires and cables while maintaining a clean appearance in any installation environment. Its design allows for maximum capacity of wiring while ensuring compliance with safety standards.

Product Information

Standard Information

• Brand: Panduit
• Manufacturer Part Number: F.75X1.5WH6

Technical Specifications

• Type: Wiring Duct
• Material: PVC
• Finish: White
• Slot Pitch: 0.2 inches
• Width: 0.94 inches
• Height: 1.5 inches
• Length: 6 feet
• Flammability Rating: UL94 V-0
• UNSPSC Code: 39131712
