Panduit EV18-14RB-Q StrongHold Insulated Ring Terminal 22-18 AWG (Pack of 25)

Product Description

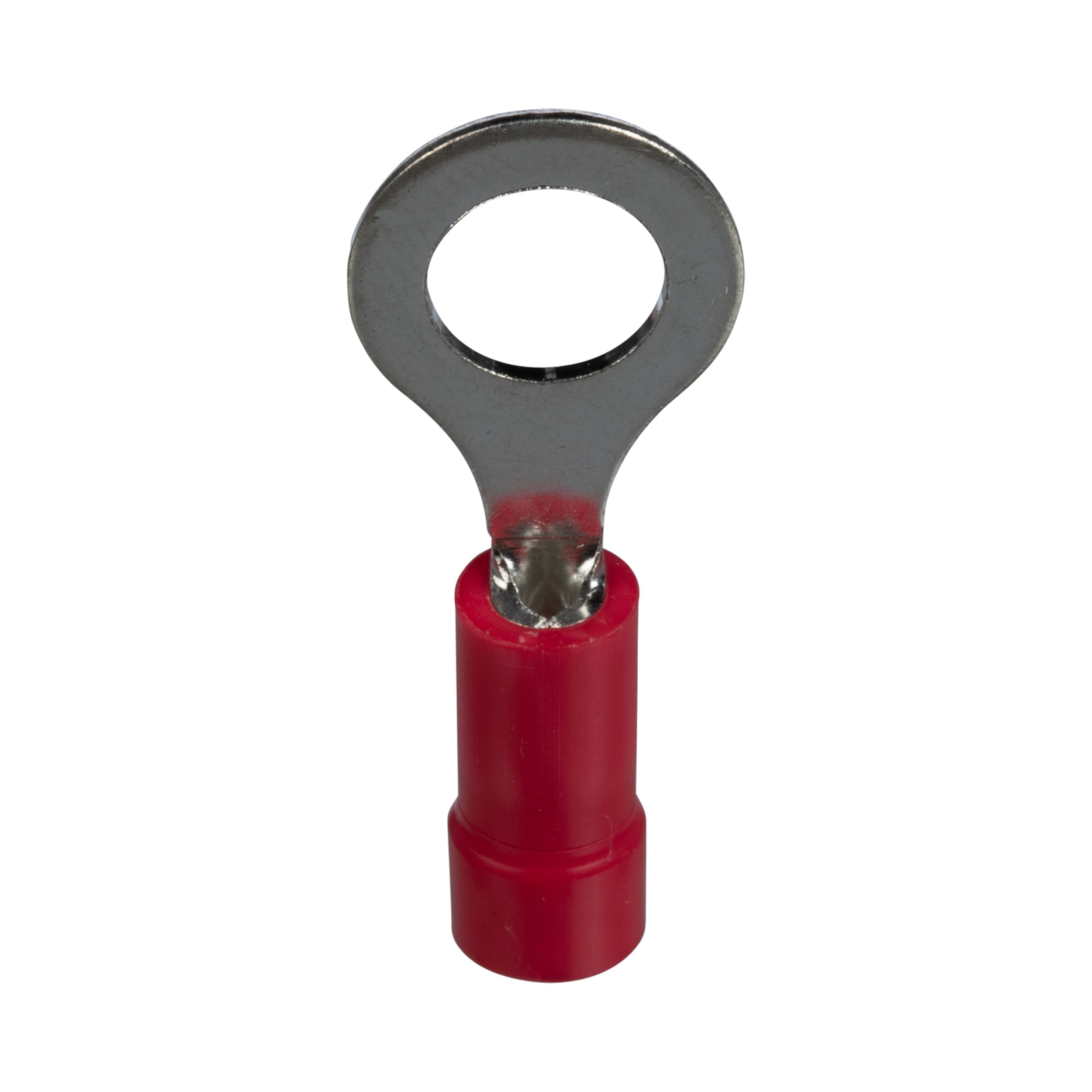

The PANDUIT EV18-14RB-Q StrongHold Insulated Ring Terminals are a reliable option for general-purpose applications. The ring tongue design ensures a secure connection, especially in high vibration environments. These terminals accommodate 22-18 AWG wires and are compatible with #1/4 studs (M6). They feature internal barrel serrations for good wire contact and maximum tensile strength and come in packages of 25.

• Ring tongue design assures a secure connection in high vibration applications.
• Internal barrel serrations assure good wire contact and maximum tensile strength.
• Accommodates 22-18 AWG wire.

Product Highlights

StrongHold insulated ring terminals for secure electrical connections in various applications, withstanding vibration and ensuring reliable performance.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: EV18-14RB-Q
• Country of Origin: Mexico

Technical Specifications

• Type: RING TERMINAL
• UNSPSC Code: 39121400
• Application: General Purpose Applications
• Color: Red
• Conductor Size: 18 AWG
• Conductor Type: Solid/Stranded
• Finish: Tin Plated
• Length: 1.11 in
• Manufacturer Part Number: EV18-14RB-Q
• Material: Copper
• Specifications: 0.31 in Mounting Hole Size, 5/16 in L Wire Strip, Vinyl Insulation
• Standards/Approvals: ARRA Compliant|Buy American Act Compliant|CSA File No. LR31212|RoHS Compliant|UL 587H File No. E52164|UL94 V-0 Flammability Rated
• Stud Size: 1/4 in
• Temperature Rating: 221 deg F
• Tongue Size: 0.46 in W x 0.032 in THK
• Tongue Type: Ring
• Voltage Rating: 600 V
• Seam: Butted
• Features: Funnel Entry
• Wire Range: 22 to 18 AWG
• Insulation Dia: 0.15 in
• Insulation Type: Vinyl
• Connection Material: Copper
• Overall Length: 1.11 in
• Series: EV18
• Barrel Style: Funnel
• Contact Finish: Tin
• Package Qty: 25
• Strip Length: 3/8 in
• Terminal Shape: Ring
• Ring Length: 0.56 in
• Ring Thickness: 0.03 in
• Maximum Temperature: 221 °F
• Maximum Voltage: 600 V
• Maximum Wire Size: 18 AWG
• Minimum Wire Size: 22 AWG
• Tongue Width: 0.46 in
