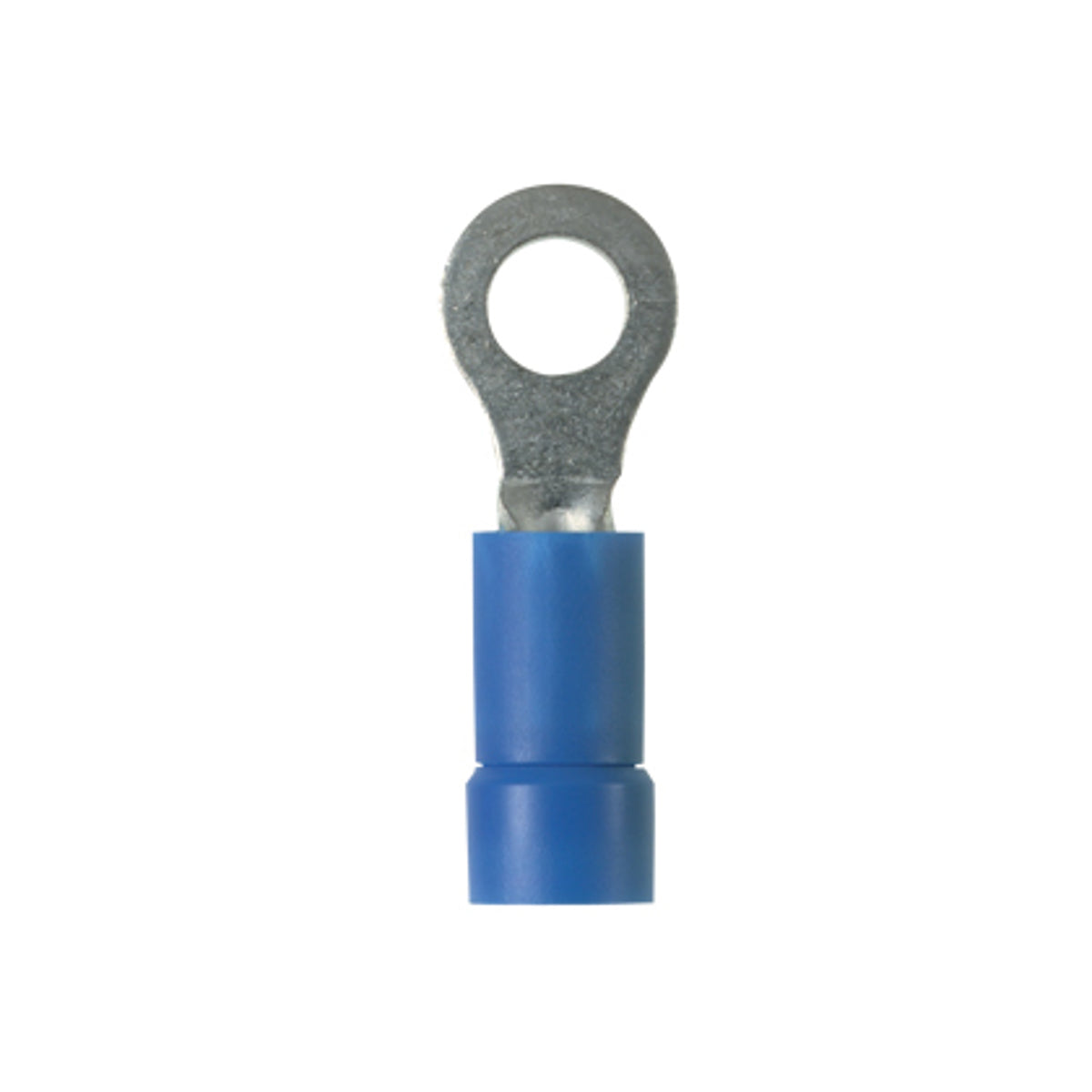

Panduit EV14-8RB-Q StrongHold Insulated Ring Terminal

Product Description

The PANDUIT EV14-8RB-Q StrongHold Contractor Grade Insulated Ring Terminals are a reliable and economical option for general-purpose applications. The ring tongue design ensures a secure connection, especially in high vibration environments. These terminals accommodate 16-14 AWG wires and are compatible with #8 studs (M4).

• Ring tongue design assures a secure connection in high vibration applications
• Internal barrel serrations assure good wire contact and maximum tensile strength
• Brazed seam protects terminal barrel from splitting during the crimp process

Product Highlights

Insulated ring terminals for secure connections in various applications, featuring a ring tongue design and durable construction.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: EV14-8RB-Q
• Country of Origin: Mexico

Technical Specifications

• Type: RING TERMINAL
• UNSPSC Code: 39121400
• Catalog Number: EV14-8RB-Q
• Manufacturer: Panduit
• Brand: Panduit
• Sub Brand: StrongHold™
• Country of Origin: Mexico
• Made in USA: No
• Finish: Tin-Plated
• Insulation: Vinyl
• Material: Copper
• Standard: UL Listed 587H E52164; CSA Certified LR31212
• UPC: 613056367319
• GTIN: 00613056367319
• Item Type: Ring Terminal
• Size: #8
• Voltage Rating: 600 V
• Wire Size: #14 AWG
• Application: General Purpose Applications
• Conductor Size: 14 AWG
• Conductor Type: Stranded
• Manufacturer Part Number: EV14-8RB-Q
• Stud Size: #8
• Temperature Rating: 221 deg F
• Tongue Type: Ring
• IGCC: 4543
• WES Product code: 2885083609
