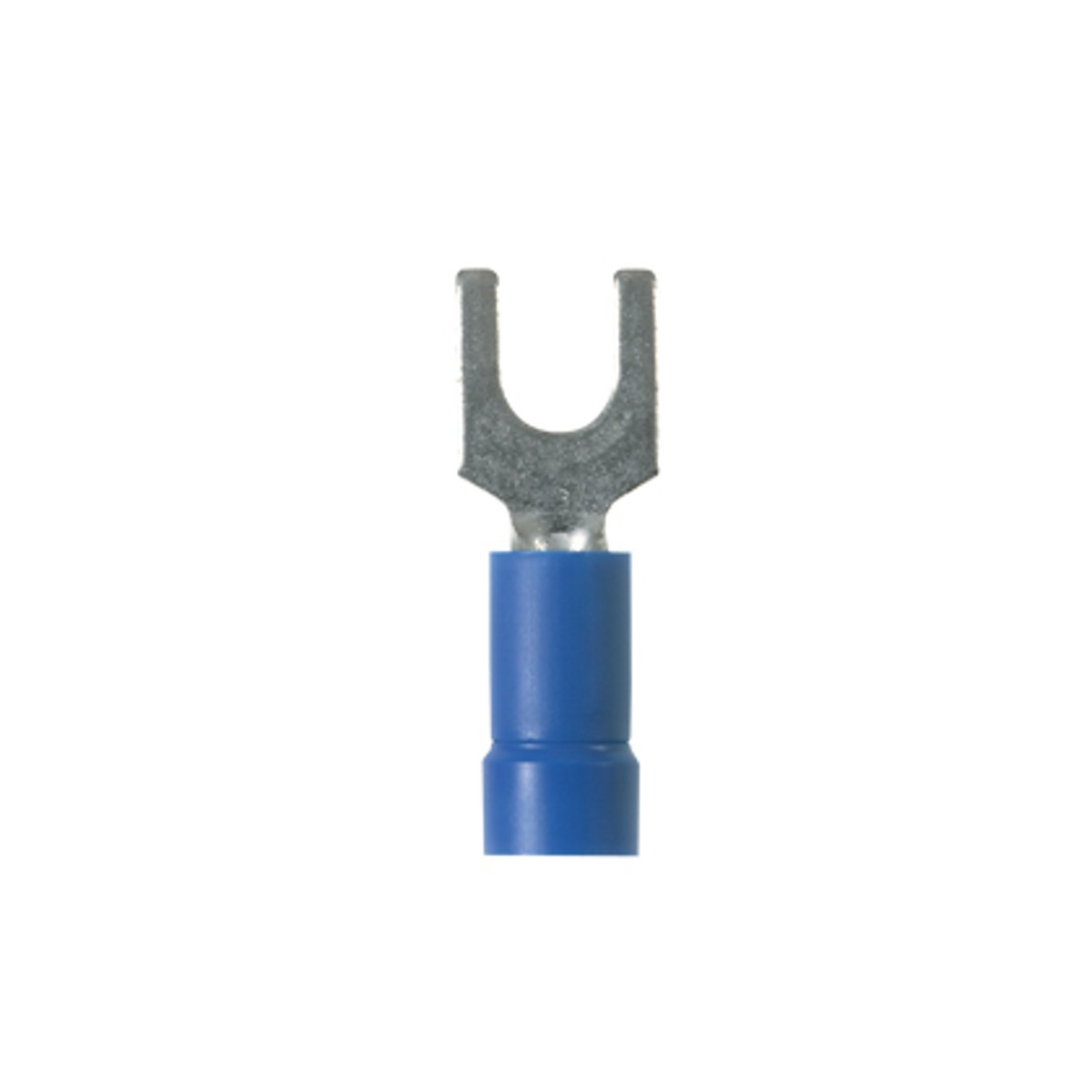

Panduit EV14-8FB-Q Stronghold Fork Terminal 16-14 AWG (Pack of 25)

Product Description

The PANDUIT EV14-8FB-Q StrongHold Contractor Grade Insulated Fork Terminals are a reliable and economical option for general-purpose applications. The fork design allows for fast and easy installation without removing the fastener. These terminals accommodate 16-14 AWG wire and are compatible with a #8 stud (M4).

• Fork design provides for fast and easy installation, without the need to remove fastener
• Internal barrel serrations assure good wire contact and maximum tensile strength
• Barrel of terminal internally beveled to provide quick and easy wire insertion

Product Highlights

These insulated fork terminals are suitable for various applications, ensuring secure and efficient connections. They are UL Listed and CSA Certified.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: EV14-8FB-Q
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: EV14-8FB-Q
• Manufacturer: Panduit
• Brand: Panduit
• Sub Brand: StrongHold™
• Country of Origin: Mexico
• Made in USA: No
• Connection: Funnel
• Finish: Tin-Plated
• Insulation: Vinyl
• Material: Copper
• Standard: UL Listed 587H E52164; CSA Certified LR31212
• UPC: 613056366428
• GTIN: 00613056366428
• Item Type: Fork Terminal
• Size: #8
• Wire Size: 16 to 14 AWG
• Application: For use with CT-100A, CT-600-A, CT-1550, CT-1551, CT-2300/ST and CT-2500/L crimping tools
• Conductor Type: Stranded Copper
• Length: 0.9 in
• Stud Size: #8
• Temperature Rating: 221 deg F
• Tongue Size: 0.31 in W x 0.03 in THK
• Tongue Type: Fork
• Type: Type EV-FB Loose Piece
• Voltage Rating: 600 V
• Overall Length: 0.9 in
• Insulation Type: Vinyl
