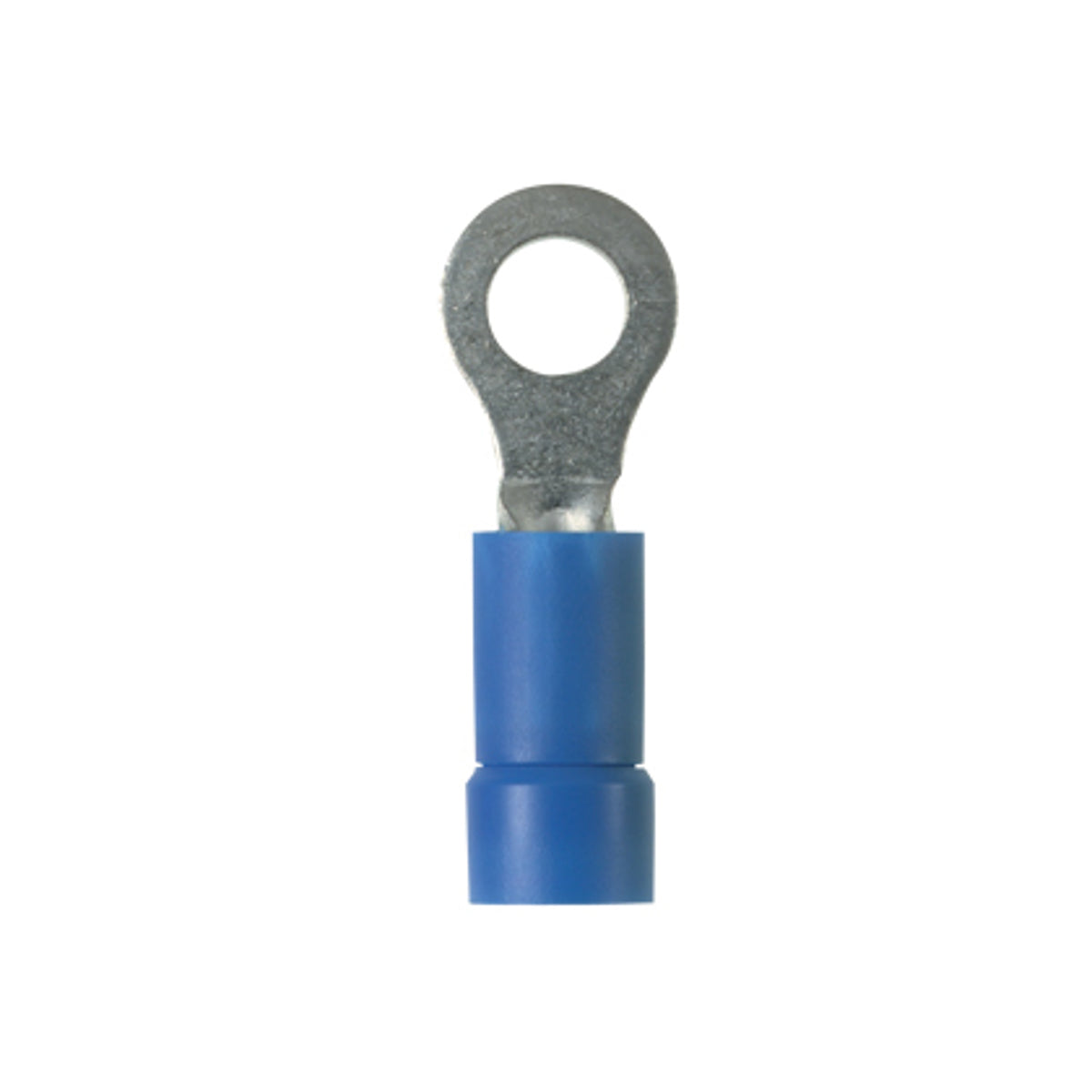

Panduit EV14-10RB-Q Stronghold Ring Terminal 1/5 inches Stud, 16-14 AWG, PK25

Product Description

The PANDUIT EV14-10RB-Q StrongHold Contractor Grade Insulated Ring Terminals are a reliable and economical option for general-purpose applications. The ring tongue design ensures a secure connection, even in high vibration environments. These ring terminals accommodate 16-14 AWG wire and are compatible with a #10 stud (M5).

• Ring tongue design assures a secure connection
• Accommodates 16-14 AWG wire
• Compatible with #10 Stud (M5)

Product Highlights

The PANDUIT EV14-10RB-Q ring terminals provide secure electrical connections for various applications. They are UL Listed and CSA Certified.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: EV14-10RB-Q
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: EV14-10RB-Q
• Manufacturer: Panduit
• Brand: Panduit
• Sub Brand: StrongHold™
• Country of Origin: Mexico
• Made in USA: No
• Finish: Tin-Plated
• Insulation: Vinyl
• Material: Copper
• Standard: UL Listed 587H E52164; CSA Certified LR31212
• UPC: 613056367326
• GTIN: 00613056367326
• Item Type: Ring Terminal
• Size: #10
• Voltage Rating: 600
• Wire Size: #14 AWG
• RoHS Flag: Yes
• Barrel Diameter: 0.17 Inch
• Barrel Configuration: Funnel
• Temperature Rating: 105 deg C
• Wire Strip Length: 0.3125
• Stud Size: #10
• Environmental Conditions: V0 Flammability Rated Per UL94
• Conductor Size: 16-14 AWG
• UNSPSC: 43223301
• Type: Ring Terminal
• Series: EV14
• Barrel Style: Funnel Entry
• Contact Finish: Tin
• Contact Material: Copper
• Insulation Material: Vinyl
• Maximum Temperature: 221 °F
• Maximum Voltage: 600 V
• Maximum Wire Size: 14 AWG
• Minimum Wire Size: 16 AWG
• Overall Length: 0.92 in
• Package Qty: 25
• Tongue Width: 0.31 in
• Seam Style: Butted
• Strip Length: 3/8 in
• Terminal Shape: Ring
• Ring Length: 0.46 in
• Ring Thickness: 0.03 in
