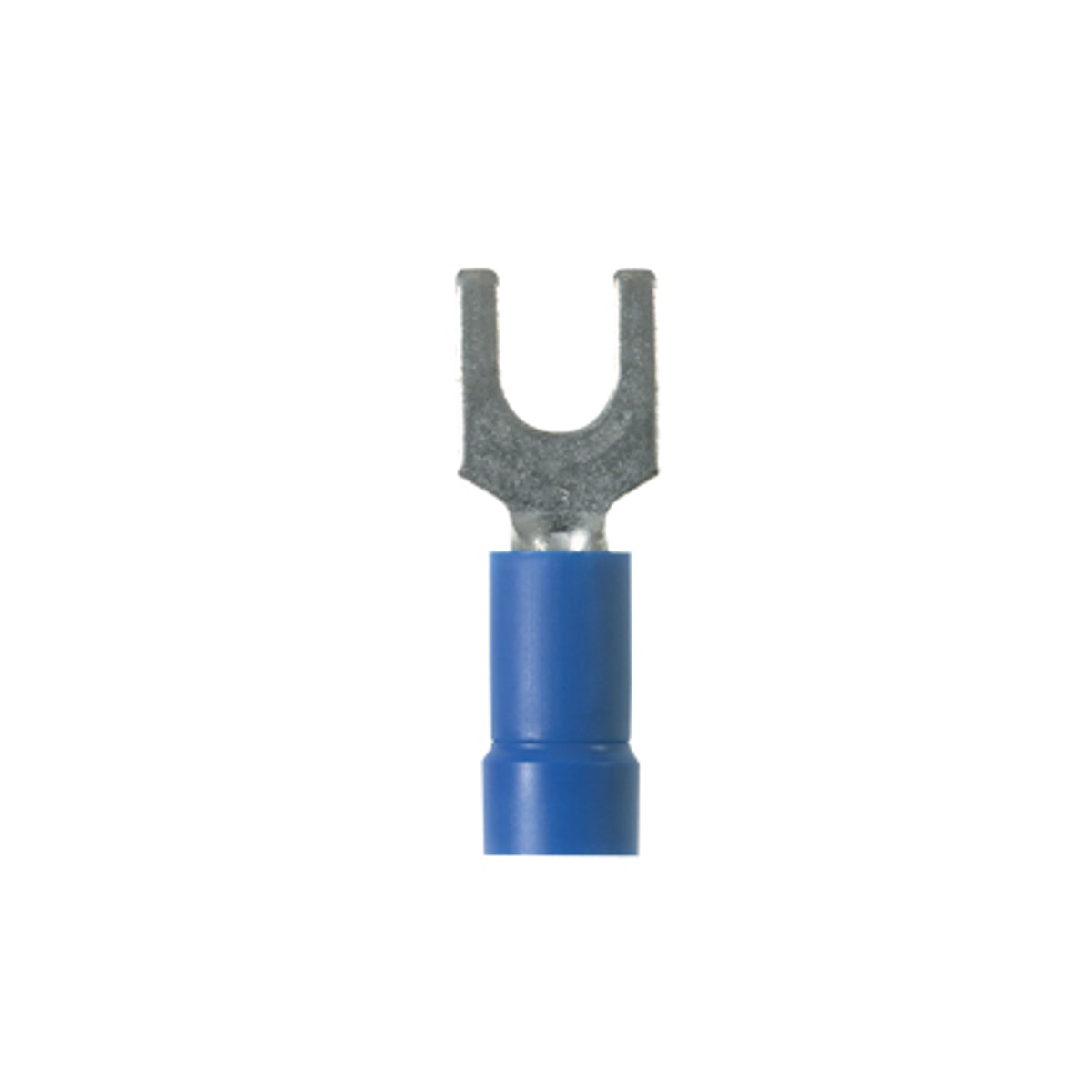

Panduit EV14-10FB-Q StrongHold Insulated Fork Terminal

Product Description

The PANDUIT EV14-10FB-Q StrongHold Contractor Grade Insulated Fork Terminals are a reliable and economical option for general-purpose applications. The fork design allows for quick installation without removing the fastener. This terminal accommodates 16-14 AWG and is compatible with a #10 stud (M5).

• Fork design for fast and easy installation
• Accommodates 16-14 AWG wire sizes
• Compatible with #10 stud (M5)

Product Highlights

The PANDUIT EV14-10FB-Q StrongHold fork terminals offer a reliable connection for various applications, ensuring secure and efficient installations.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: EV14-10FB-Q
• Country of Origin: Mexico

Technical Specifications

• Type: FORK TERMINAL
• UNSPSC Code: 39121400
• Catalog Number: EV14-10FB-Q
• Manufacturer: Panduit
• Brand: Panduit
• Sub Brand: StrongHold™
• Country of Origin: Mexico
• Made in USA: No
• Finish: Tin-Plated
• Insulation: Vinyl
• Material: Copper
• Standard: UL Listed 587H E52164; CSA Certified LR31212
• UPC: 613056366435
• GTIN: 00613056366435
• Item Type: Fork Terminal
• Size: #10
• Wire Size: #14 AWG
• Connection: Funnel
• Application: For use with CT-100A, CT-600-A, CT-1550, CT-1551, CT-2300/ST and CT-2500/L crimping tools
• Conductor Size: 14 AWG
• Conductor Type: Stranded Copper
• Length: 0.92 in
• Stud Size: #10
• Temperature Rating: 221 deg F
• Tongue Size: 0.34 in W x 0.03 in THK
• Tongue Type: Standard Fork
• Voltage Rating: 600 V
• Series: EV-FB
• Barrel Type: Butted Seam/Funnel Entry/Standard
