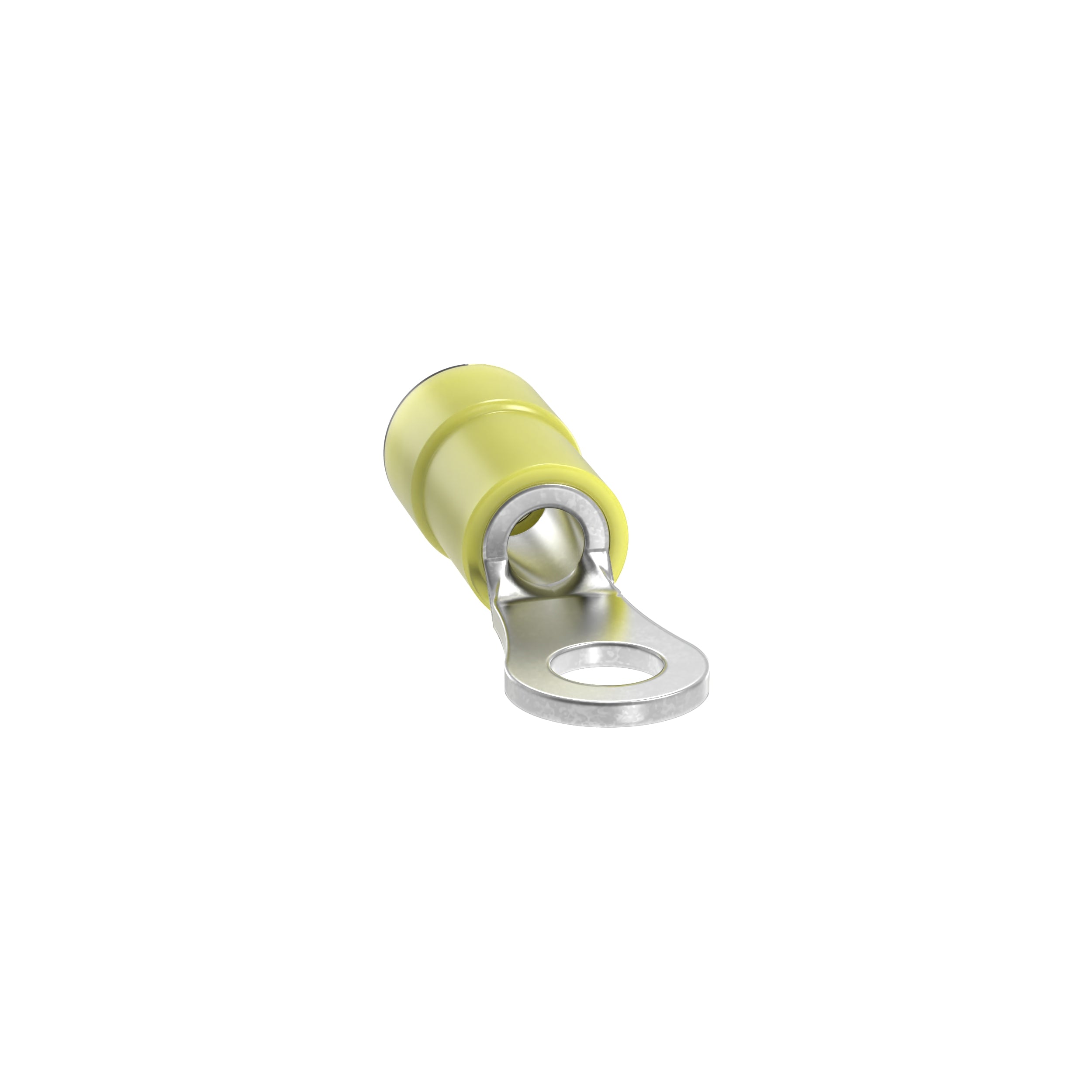

Panduit EV10-8RB-Q StrongHold Ring Terminal #12-10 25pk

Product Description

The Panduit EV10-8RB-Q StrongHold Ring Terminal, type EV-RB, is designed for stranded conductors and 10 AWG wire. Featuring a #8 stud size and 1.05 in length, it has a butted seam, funnel entry, and internal serration barrel. Suitable for general purpose applications with a voltage rating of 600 V.

• Ring tongue design assures a secure connection in high vibration applications
• Internal barrel serrations assure good wire contact and maximum tensile strength
• Without insulation

Product Highlights

The Panduit StrongHold ring terminal ensures secure electrical connections with its robust design and high-quality materials.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: EV10-8RB-Q
• Country of Origin: Mexico

Technical Specifications

• application: General Purpose Applications
• color: Yellow
• conductor_size: 10 AWG
• conductor_type: Stranded
• finish: Tin Plated
• length: 1.05 in
• manufacturer_part_number: EV10-8RB-Q
• material: Copper
• stud_size: #8
• temperature_rating: 221 deg F
• tongue_type: Ring
• type: Type EV-RB
• voltage_rating: 600 V
• series: EV10
• barrel_style: Funnel Entry
• contact_finish: Tin
• contact_material: Copper
• maximum_temperature: 221 °F
• maximum_voltage: 600 V
• maximum_wire_size: 10 AWG
• overall_length: 1.05 in
• package_qty: 25
• seam_style: Butted
• terminal_shape: Ring
• strip_length: 3/8 in
• ring_length: 0.53 in
• ring_thickness: 0.04 in
• tongue_width: 0.31 in
