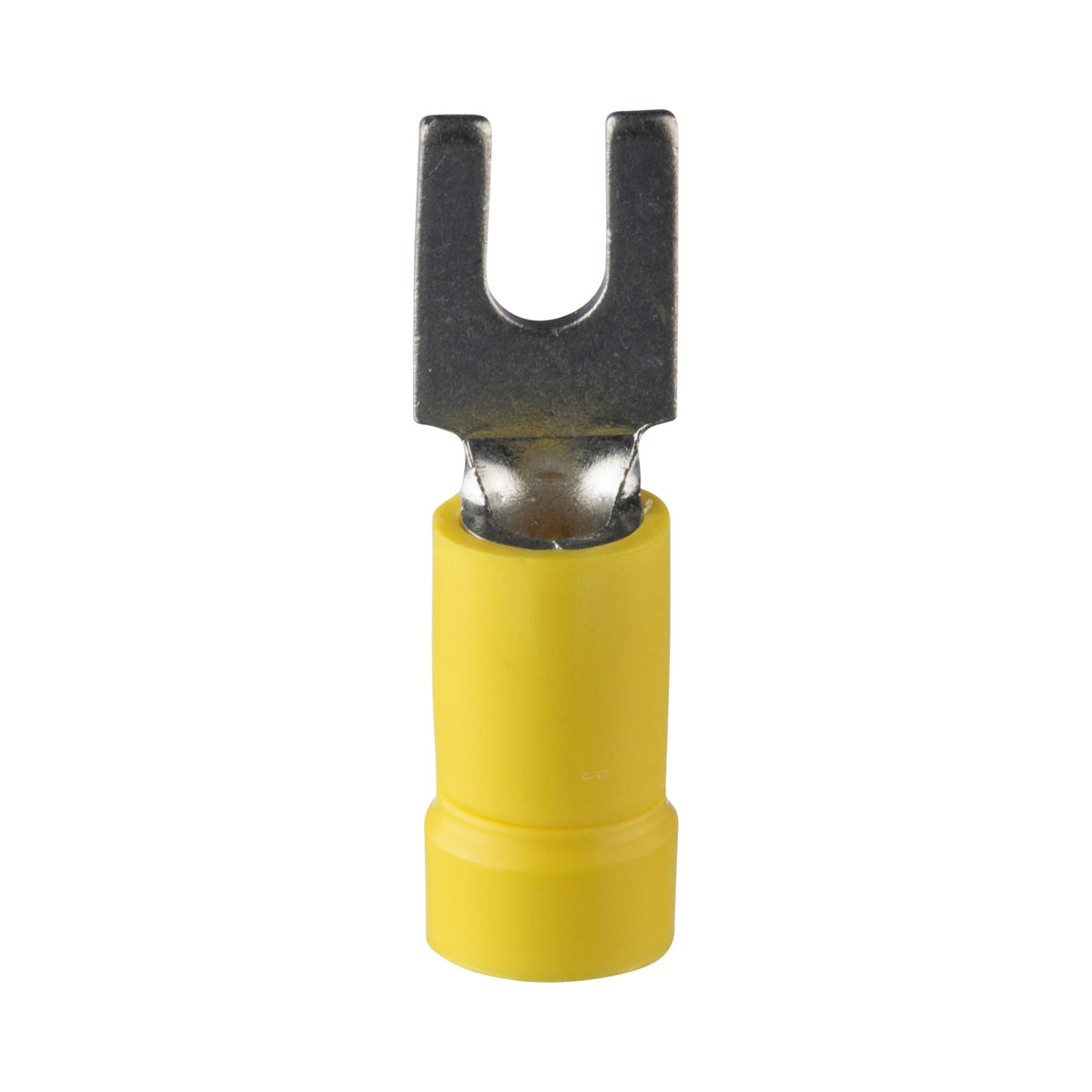

Panduit EV10-6FB-Q Stronghold EV10-6FB-Q Loose Piece Forks #6

Product Description

The PANDUIT EV10-6FB-Q StrongHold Contractor Grade Insulated Fork Terminals are a reliable and economical option for general-purpose applications. The fork design allows for quick installation without removing the fastener. Accommodates 12-10 AWG, compatible with #6 Stud (M3.5).

• Fork design provides fast and easy installation, eliminating the need to remove the fastener.
• Reliable and economical for a wide range of general-purpose applications.
• Creates a secure, long-lasting connection for wires to screws, studs, or terminal blocks.

Product Highlights

These insulated fork terminals provide a secure and efficient wire connection for various electrical applications.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: EV10-6FB-Q
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: EV10-6FB-Q
• Manufacturer: Panduit
• Brand: Panduit
• Sub Brand: StrongHold™
• Country of Origin: Mexico
• Made in USA: No
• Connection: Funnel
• Finish: Tin-Plated
• Insulation: Vinyl
• Material: Copper
• Standard: UL Listed 587H E52164; CSA Certified LR31219
• Item Type: Fork Terminal
• Size: #6
• Wire Size: 12-10 AWG
• IGCC: 4543
• Type: Fork Terminal
• Mounting: 0.31 In.
• Family group: CONNECTORS
• Fork Type: Standard
• Insulation Material: Vinyl
• Copper Conductor Size: 12-10 AWG
• Maximum Metric Conductor Size (mm²): 6
• Minimum Metric Conductor Size (mm²): 4
• Stud Size: #6
• Wire Strip Length (In.): 5/16
• Wire Strip Length (mm): 7.9
• Standards Met: UL Listed 587H E52164; CSA Certified LR31219
• Maximum Voltage (V): 600
• Maximum Voltage (kV): 0.6
• Minimum Voltage (V): 600
• Minimum Voltage (kV): 0.6
• Base Material: Copper
• Barrel Type: Butted Seam/Funnel Entry/Standard
• Barrel Length (In.): 0.51
• Barrel Length (mm): 12.8
• Flammability Rating: UL 587 H
• Insulation Diameter (In.): 0.23
• Insulation Diameter (mm): 5.7
• Maximum Operating Temperature (°C): 105
• Maximum Operating Temperature (°F): 221
• Minimum Operating Temperature (°C): 105
• Minimum Operating Temperature (°F): 221
• Seam Type: Butted
• Maximum Wire Insulation Diameter (In.): 0.23
• Maximum Wire Insulation Diameter (mm): 5.7
• Stud Hole Size (In.): #6
• Stud Hole Size (mm): 3.2
• Overall Length (In.): 1.01
• Overall Length (mm): 25.7
• Overall Width (In.): 0.31
• Overall Width (mm): 7.9
• Tongue Length (In.): 0.51
• Tongue Length (mm): 12.8
• Tongue Width (In.): 0.31
• Tongue Width (mm): 7.9
• Tongue Thickness (In.): 0.04
• Tongue Thickness (mm): 1
• Packaging Type: Loose Piece
• Product Type: Fork Terminal
• For Use With: CT-100A*, CT-600-A (CT-550CH), CT-1550, CT-1551, CT-2500 (CT-2550CH), CT-160, CT-260, CT-400, CT- 460
• Conductor Type: Stranded Copper
• Series: EV-FB
• Temperature Rating: 221 deg F
• Voltage Rating: 600 VAC
