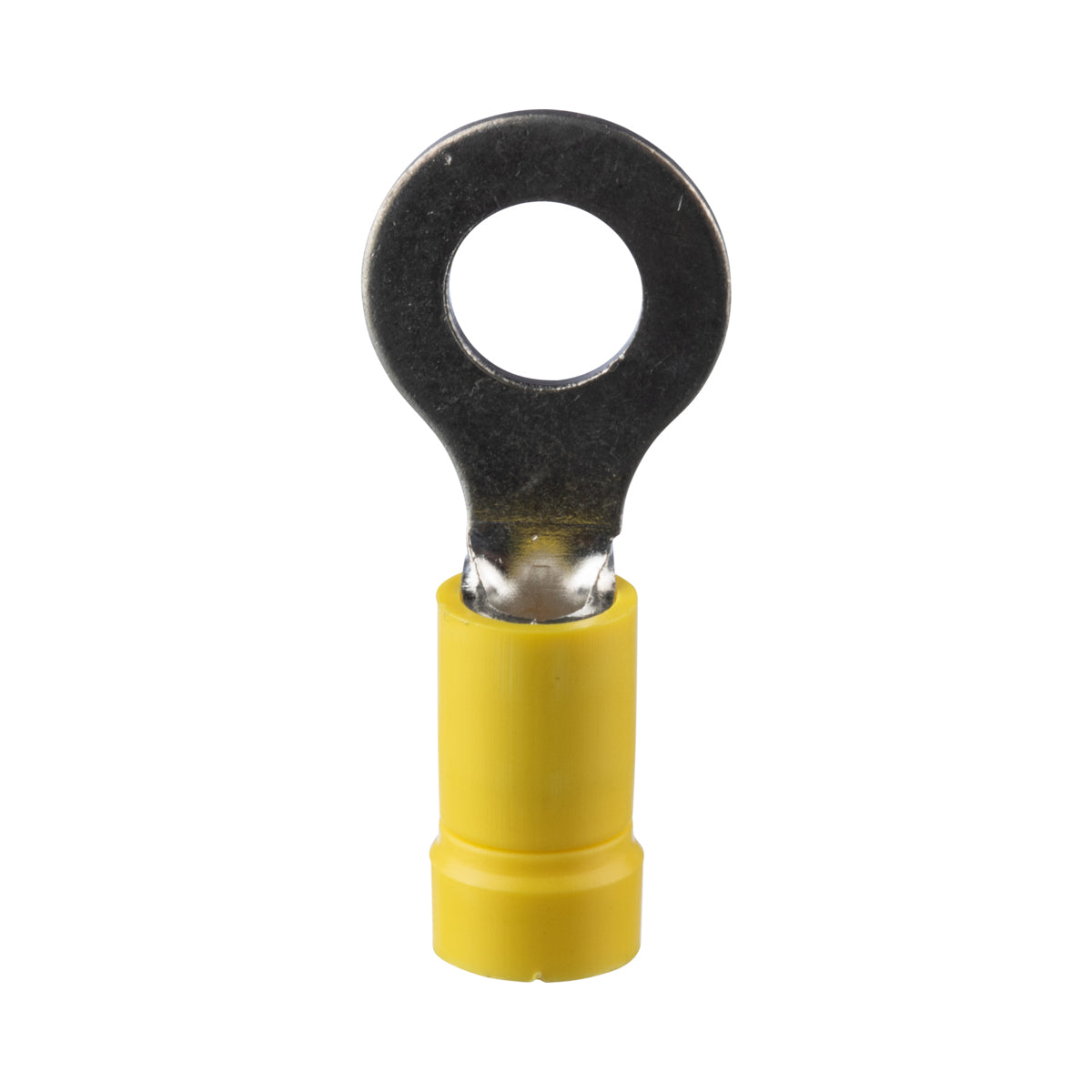

Panduit EV10-14RB-Q StrongHold Insulated Ring Terminal 1/4 inches

Product Description

The PANDUIT EV10-14RB-Q StrongHold Contractor Grade Vinyl Insulated Ring Terminals are a reliable and economical option for general-purpose applications. The ring tongue design ensures a secure connection, even in high vibration environments. These terminals accommodate 12-10 AWG and are compatible with #1/4 Stud (M6).

• Reliable and economical option
• Withstand a wide range of general-purpose applications
• Ring tongue design assures a secure connection in high vibration applications

Product Highlights

These ring terminals are ideal for electrical connections requiring secure and vibration-resistant performance.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: EV10-14RB-Q
• Country of Origin: Mexico

Technical Specifications

• Type: RING TERMINAL
• UNSPSC Code: 39121400
• Catalog Number: EV10-14RB-Q
• Manufacturer: Panduit
• Brand: Panduit
• Sub Brand: StrongHold™
• Country of Origin: Mexico
• Made in USA: No
• Color: Yellow
• Finish: Tin-Plated
• Insulation: Vinyl
• Material: Copper
• Standard: UL Listed 587H E52164; CSA Certified LR31212
• Item Type: Ring Terminal
• Size: 1/4"
• Voltage Rating: 600
• Wire Size: #10 AWG
• Application: General Purpose Applications
• Conductor Size: 10 AWG
• Conductor Type: Stranded
• Length: 1.23 in
• Stud Size: 1/4 in
• Temperature Rating: 221 deg F
• Tongue Type: Ring
• Wire Range [Specifications]: 12 to 10 AWG
• Max. Temp. [Specifications]: 221 Degrees F
• Max. Voltage [Specifications]: 600V
• Terminal Type [Specifications]: Ring Tongue
• Insulation Dia [Specifications]: 0.23 in
• Overall Length [Specifications]: 1.23 in
