Panduit EV10-10FB-Q StrongHold Loose Piece Forks 1/5 inches Stud

Product Description

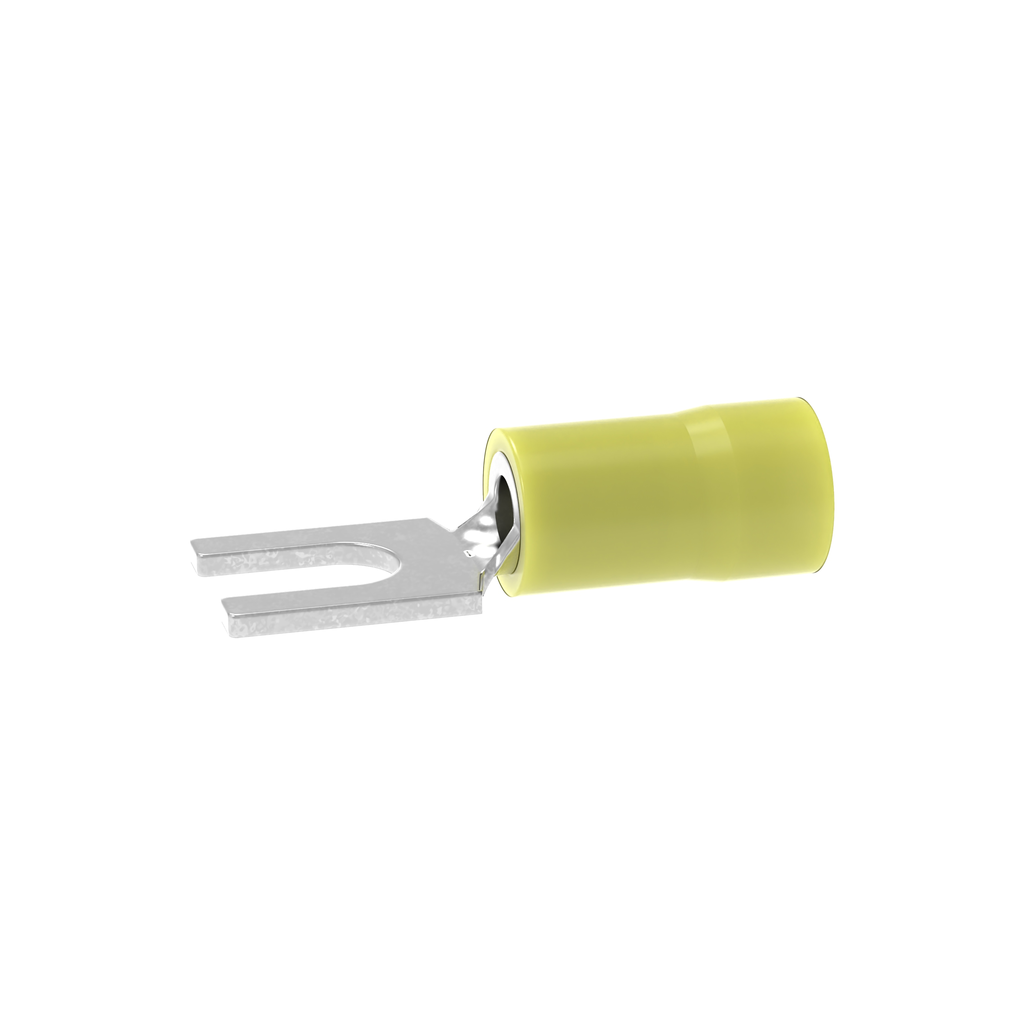

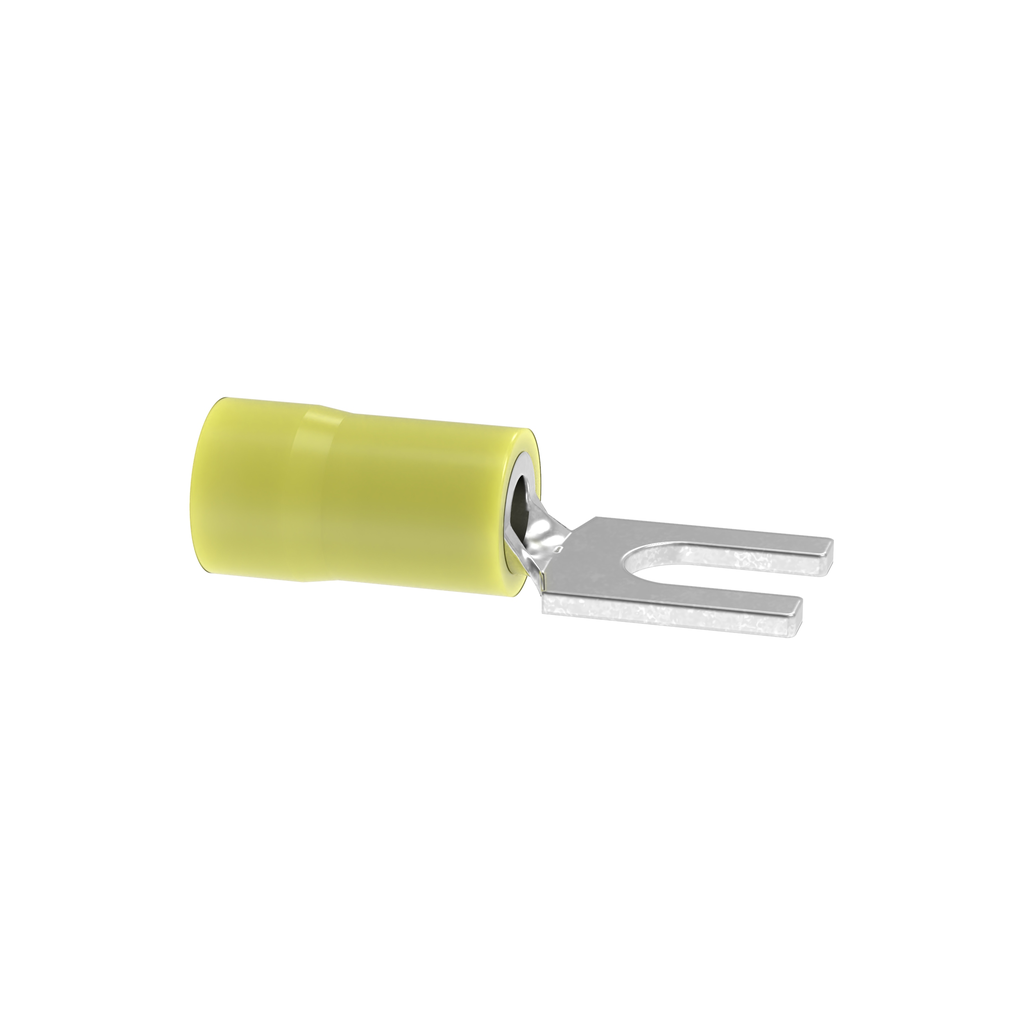

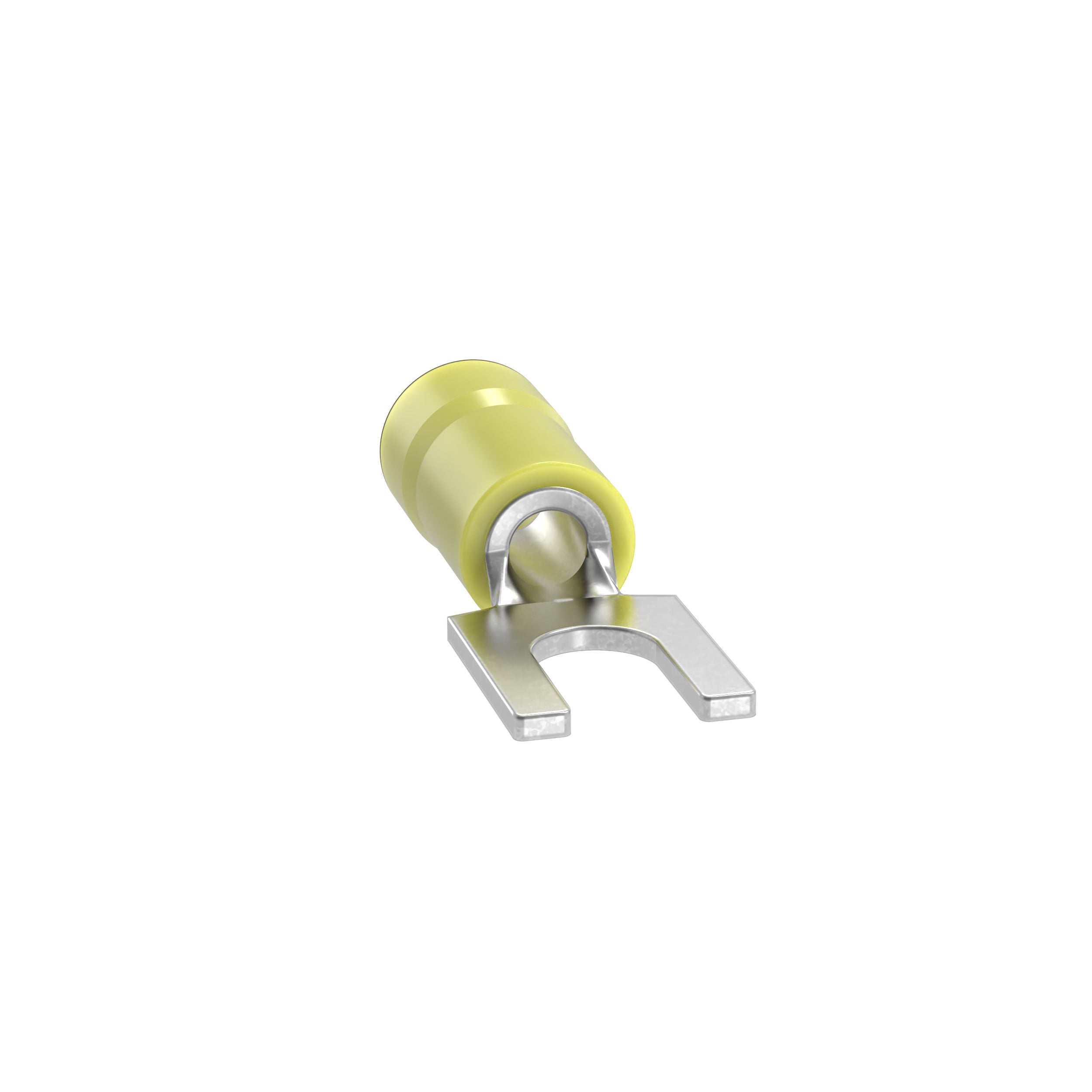

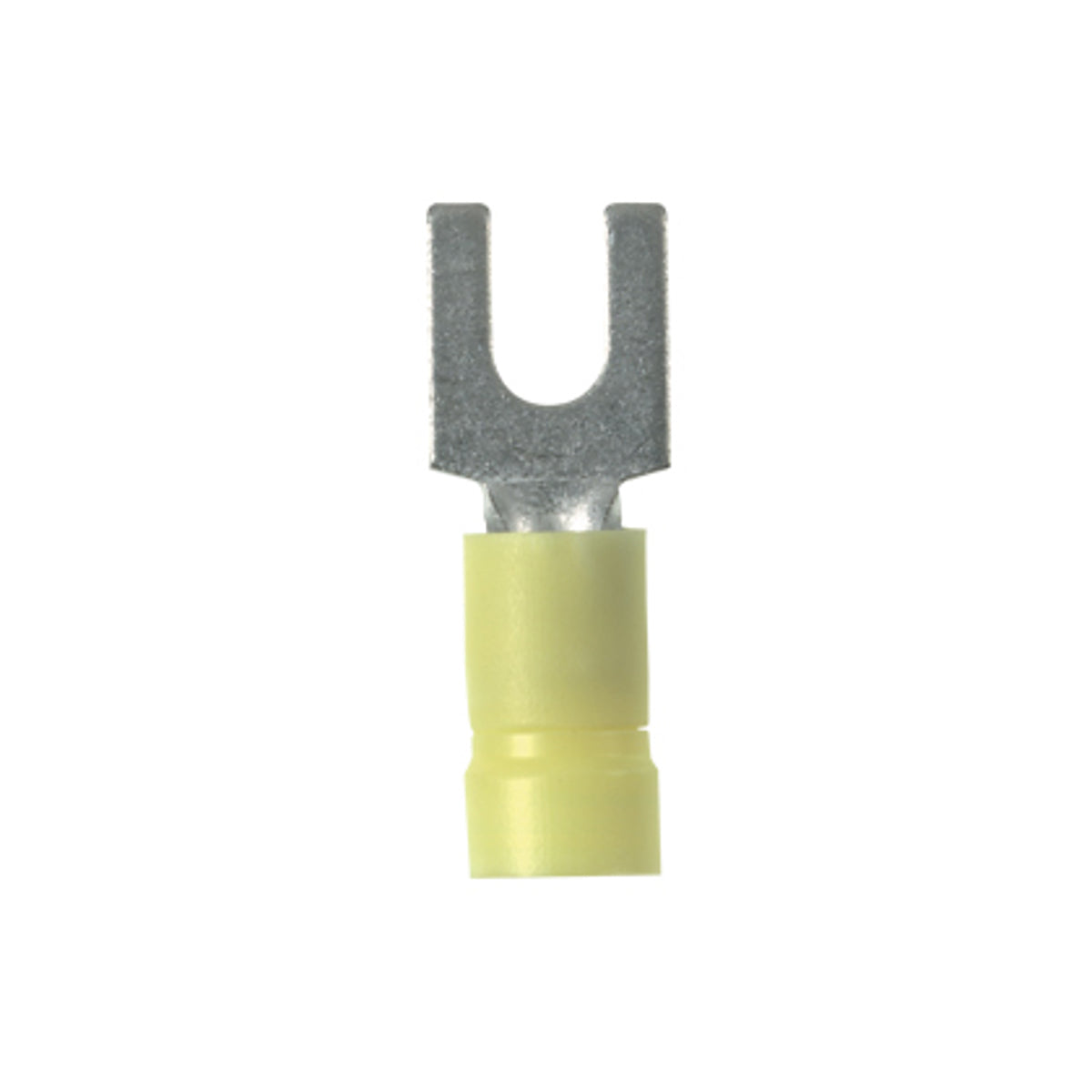

The PANDUIT EV10-10FB-Q StrongHold Contractor Grade Vinyl Insulated Fork Terminals are a reliable and economical option for general-purpose applications. These fork terminals accommodate 12-10 AWG wire gauge and are compatible with #10 studs. They feature a funnel entry and are tin-plated for enhanced conductivity and corrosion resistance. These terminals are UL Listed and CSA Certified.

• Accommodates 12-10 AWG wire gauge
• Compatible with #10 Stud
• Tin-plated copper construction

Product Highlights

The PANDUIT EV10-10FB-Q fork terminals provide a secure and efficient connection for a variety of electrical applications.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: EV10-10FB-Q
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: EV10-10FB-Q
• Manufacturer: Panduit
• Brand: Panduit
• Sub Brand: StrongHold™
• Country of Origin: Mexico
• Made in USA: No
• Color: Yellow
• Connection: Funnel
• Finish: Tin-Plated
• Insulation: Vinyl
• Material: Copper
• Standard: UL Listed 587H E52164; CSA Certified LR31213
• UPC: 074983280209
• GTIN: 00074983280209
• Item Type: Fork Terminal
• Size: #10
• Wire Size: 10 AWG
• Application: For CT-100A, CT-600-A, CT-1550, CT-1551, CT-2300/ST and CT-2500/L crimping tools
• Conductor Type: Stranded Copper
• Length: 1.04 in
• Stud Size: #10
• Temperature Rating: 221 deg F
• Tongue Size: 0.37 in W x 0.04 in THK
• Tongue Type: Fork
• Type: Type EV-FB Loose Piece
• Voltage Rating: 600 VAC
• Barrel Length: 0.52 in
• Barrel Type: Funnel
• Color Coding: Yellow
• Max Operating Temperature: 105 degrees C
• Min Operating Temperature: 105 degrees C
• TC Connection: Funnel
• Tongue Thickness: 0.04 in
• Packaging: Pkg Qty 25
• Product UPC: 07498328020
• Buy American Compliant: Y
• Standards Met: UL Listed 587H E52164; CSA Certified LR31213
