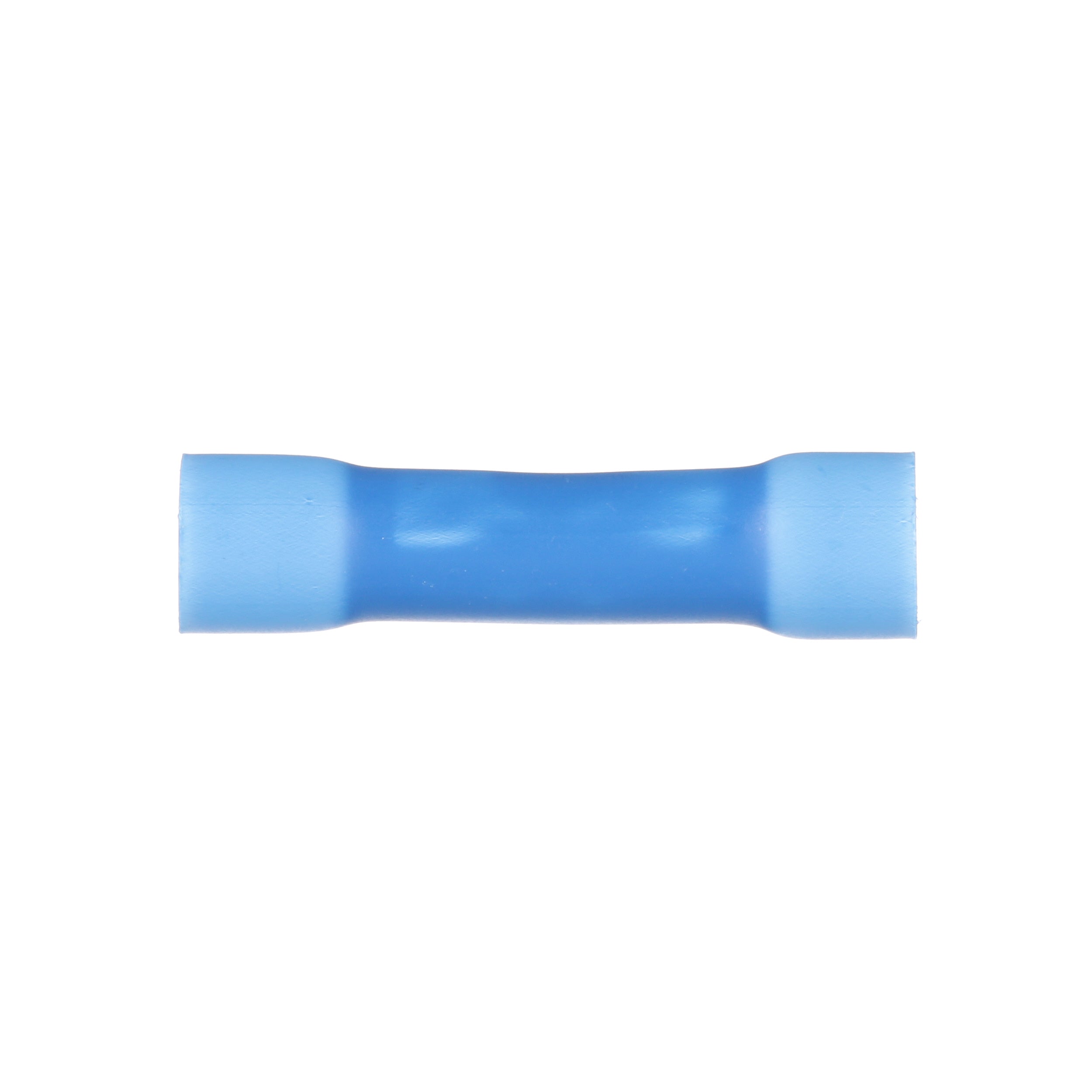

Panduit ESV14BX-Q StrongHold Butt Splice 16 to 14 AWG

Product Description

The PANDUIT ESV14BX-Q StrongHold Butt Splice is designed to splice two solid or stranded wires together to repair or lengthen wires. It accepts 16 to 14 AWG conductors and features a brazed/expanded/funnel entry barrel. The vinyl insulation has a 0.2 in diameter and the mounting hole size is 0.31 in.

• Designed to splice two solid or stranded wires together to repair or lengthen wires
• Butted configuration provides low profile for limited space applications
• Brazed seam protects terminal barrel from splitting during the crimp process

Product Highlights

This butt splice is suitable for use with CT-100A, CT-600-A, CT-1550, CT-1551, CT-2300/ST and CT-2500/L crimp tools.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: ESV14BX-Q

Technical Specifications

• Application: For CT-100A, CT-600-A, CT-1550, CT-1551, CT-2300/ST and CT-2500/L crimp tools
• Conductor Size: 16 to 14 AWG
• Conductor Type: Solid/Stranded Copper
• Finish: Tin Plated
• Length: 1.04 in
• Material: Copper
• Temperature Rating: 221 deg F
• Voltage Rating: 600 V
• Type: Butt Splice
• Wire Size: 16 - 14
• Connection: Expanded
• Insulation: Vinyl
