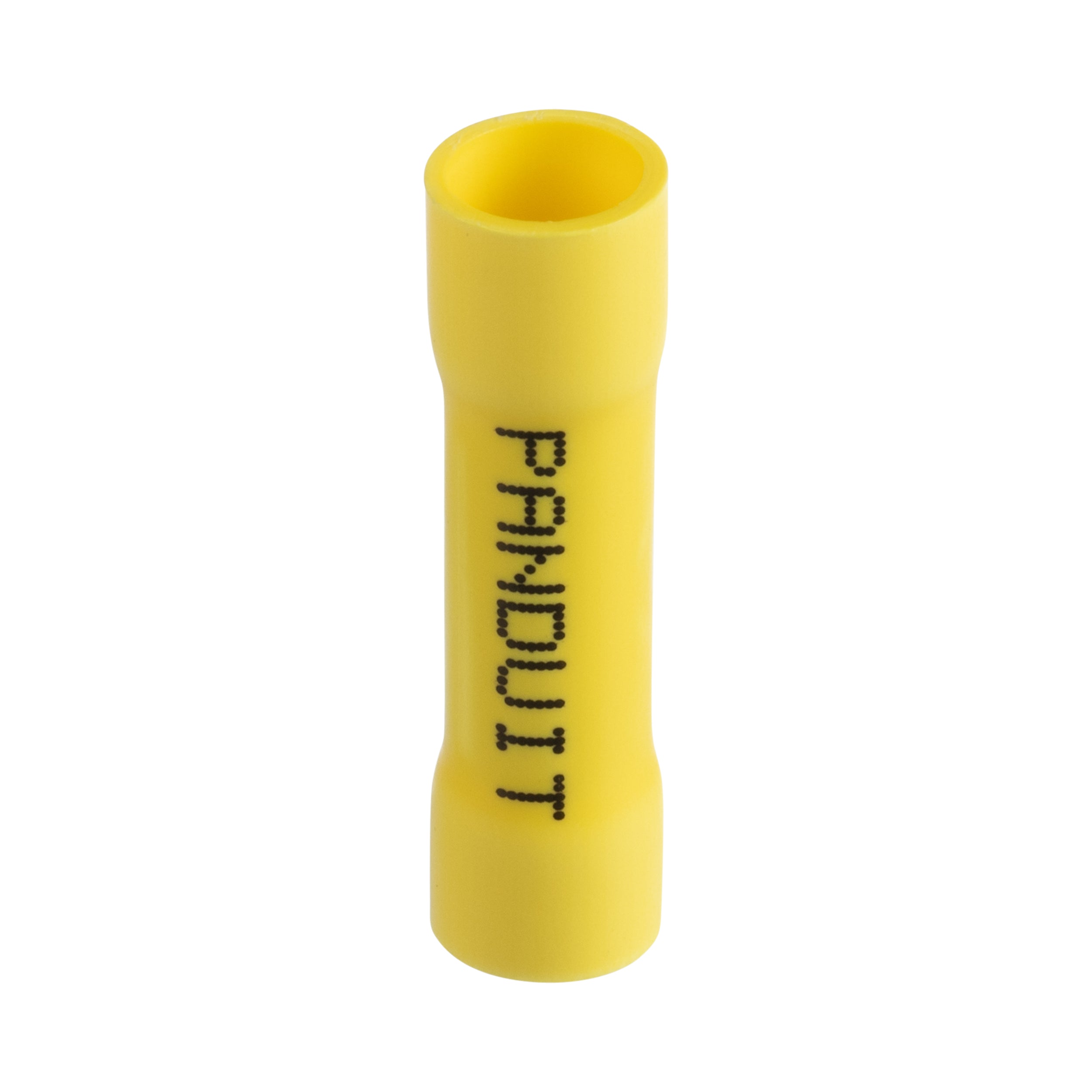

Panduit ESV10BX-Q Stronghold Butt Splice 12-10 AWG PK25

Product Description

The PANDUIT ESV10BX-Q StrongHold Butt Splices are contractor-grade vinyl insulated splices suitable for general-purpose applications. Designed to splice two solid or stranded wires together to repair or lengthen wires. Accommodates 12-10 AWG wires and comes in packages of 25. The butted configuration provides a low profile for limited space applications.

• Designed to splice two solid or stranded wires together
• Butted configuration provides low profile
• Internal wire stop assures proper length of insertion

Product Highlights

The PANDUIT ESV10BX-Q butt splice is vinyl insulated and tin-plated, ensuring secure conductivity for 12-10 AWG wires.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: ESV10BX-Q
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: ESV10BX-Q
• Manufacturer: Panduit
• Brand: Panduit
• Sub Brand: StrongHold™
• Country of Origin: Mexico
• Made in USA: No
• Color: Yellow
• Connection: Expanded
• Finish: Tin-Plated
• Insulation: Vinyl
• Material: Copper
• Standard: UL Listed, CSA Certified
• UPC: 074983279784
• GTIN: 00074983279784
• Item Type: Butt Splice
• Wire Size: 12 - 10 AWG
• Application: For CT-100A, CT-600-A, CT-1550, CT-1551, CT-2300/ST and CT-2500/L crimp tools
• Conductor Type: Solid/Stranded Copper
• Length: 1.18 in
• Temperature Rating: 221 deg F
• Voltage Rating: 300 V
• Manufacturer Part Number: Panduit ESV10BX-Q
• Insulation Material: Vinyl
• Barrel Length: 1.18 in, 30 mm
• Maximum Voltage: 300 V
• Barrel Type: Funnel Entry
• Product: Splices
• Product Type: Butt Splice
