Panduit EDV18-250B-Q Insulated Vinyl Female - 250 Series Disc

Product Description

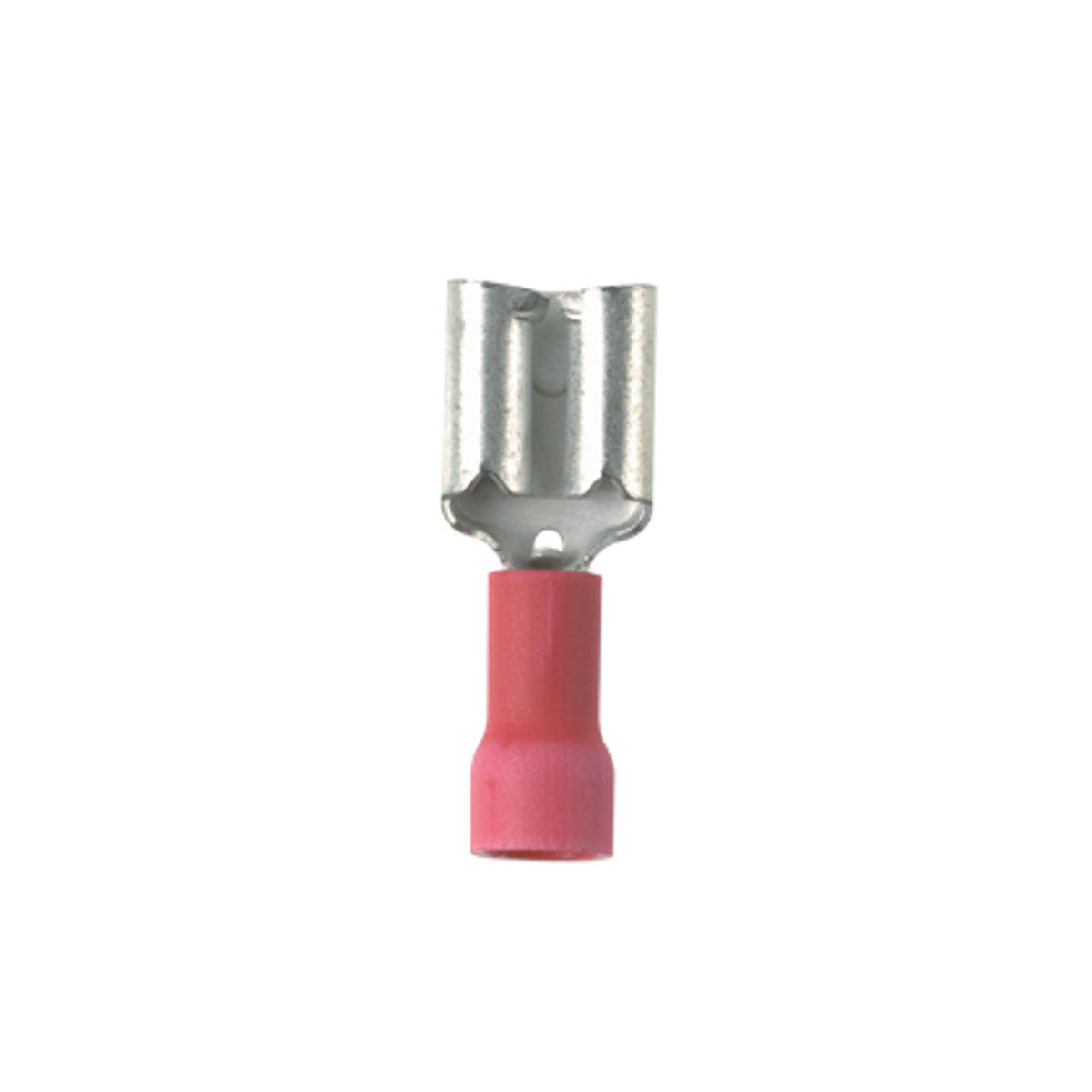

The PANDUIT EDV18-250B-Q StrongHold Female Disconnect features a vinyl barrel insulated design and accommodates 22 - 18 AWG wires with a 0.250 x 0.032 tab size. The disconnect can be inserted and removed from the male tab without tools. It is constructed from brass with tin plating and barrel insulated.

• Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
• Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
• Internal barrel serrations assure good wire contact and maximum tensile strength

Product Highlights

This StrongHold female disconnect has a vinyl barrel insulation and is compatible with 22 - 18 AWG wires.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: EDV18-250B-Q
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: EDV18-250B-Q
• Manufacturer: Panduit
• Brand: Panduit
• Sub Brand: StrongHold
• Country of Origin: Mexico
• Made in USA: No
• Connection: Funnel Entry
• Finish: Tin-Plated
• Insulation: Vinyl - Barrel Insulated
• Material: Brass
• Mounting: 0.25
• Standard: cULus, E78522
• UPC: 613056366305
• GTIN: 00613056366305
• Item Type: Loose Piece Disconnect Terminal
• Wire Size: 18 AWG
• Application: For use with CT-1525, CT-2300/ST and CT-2500/L crimping tools
• Conductor Size: 18 AWG
• Conductor Type: Stranded Copper
• Insulated: Barrel Insulated
• Tab Size: 0.25 in W x 0.032 in THK
• Temperature Rating: 221 deg F
• Terminal Type: Crimp
• Type: Type EDV-B
• Voltage Rating: 600 V
• American Wire Gauge: 18AWG
• Width: 0.29"
• Length: 0.81"
