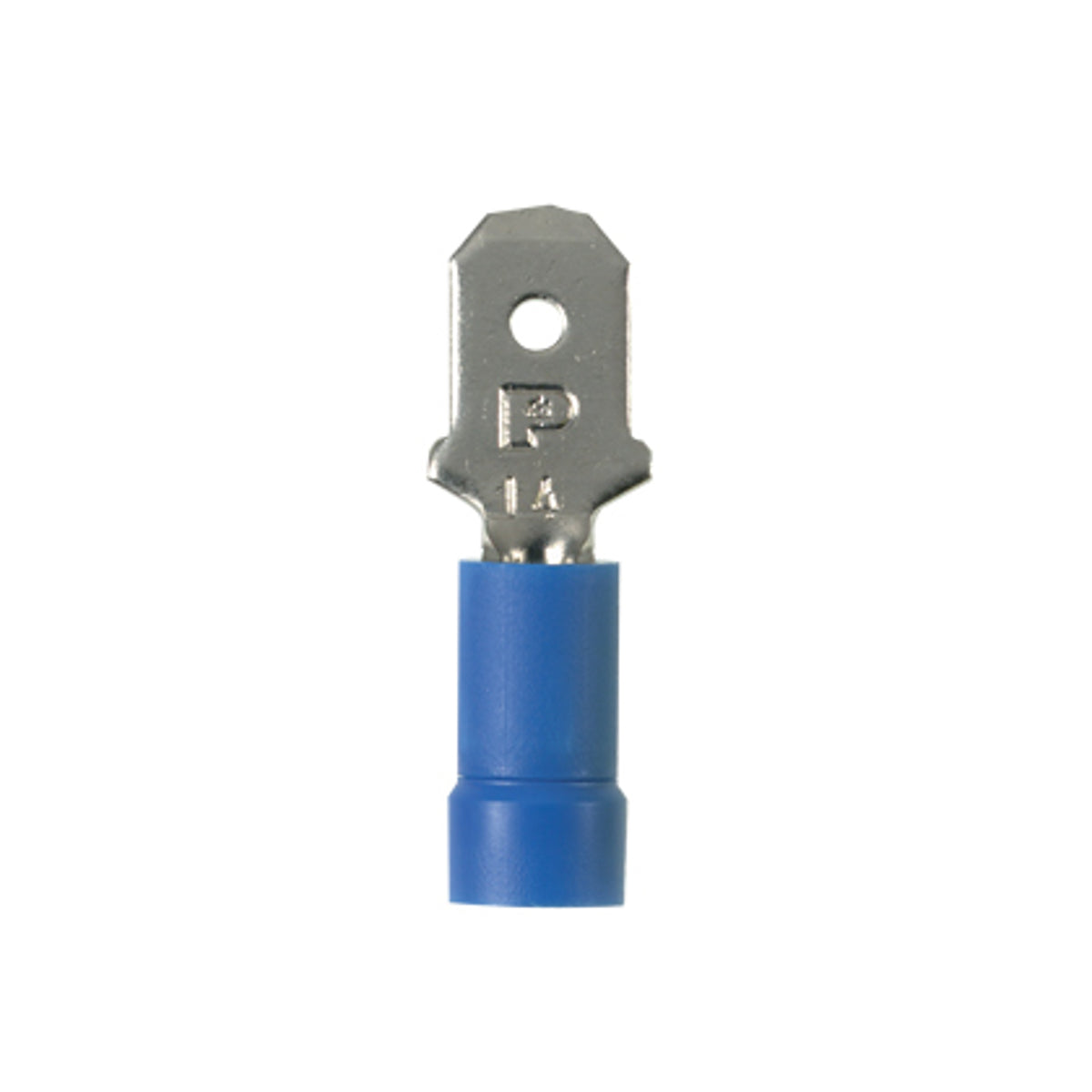

Panduit EDV14-250M-Q Stronghold Male Disconnect Terminal

Product Description

The PANDUIT EDV14-250M-Q Stronghold Male Disconnect is a vinyl barrel insulated disconnect terminal. Designed for 16 - 14 AWG wires with a .250 x .032 tab size. Features a brazed seam, funnel entry, and internal serrations on the barrel. Suitable for use with stranded copper conductors and has a voltage rating of 600 VAC.

• Insulated with a blue vinyl barrel for electrical protection.
• Designed with internal barrel serrations for enhanced wire contact and tensile strength.
• Features a funnel entry for easy wire insertion.

Product Highlights

The PANDUIT Stronghold disconnect ensures secure and reliable connections for a variety of electrical applications.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: EDV14-250M-Q
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: EDV14-250M-Q
• Manufacturer: Panduit
• Brand: Panduit
• Sub Brand: StrongHold™
• Country of Origin: Mexico
• Made in USA: No
• Color: Blue
• Connection: Funnel Entry
• Finish: Tin-Plated
• Insulation: Vinyl - Barrel Insulated
• Material: Brass
• Standard: cULus, E78522
• Item Type: Disconnect
• Wire Size: 14 AWG
• Application: For CT-1550, CT-1551, CT-2300/ST and CT-2500/L crimping tools
• Conductor Size: 16 to 14 AWG
• Conductor Type: Stranded Copper
• Series: DV-M
• Tab Size: 0.25 in W x 0.032 in THK
• Temperature Rating: 221 deg F
• Terminal Type: Male
• Type: Disconnect
• Voltage Rating: 600 VAC
• Barrel Type: Brazed Seam
• Color Coding: Blue
• Max Operating Temperature: 105 degrees C
• Overall Length: 0.96 in
• Width: 0.25 in
• Buy American Compliant: Y
