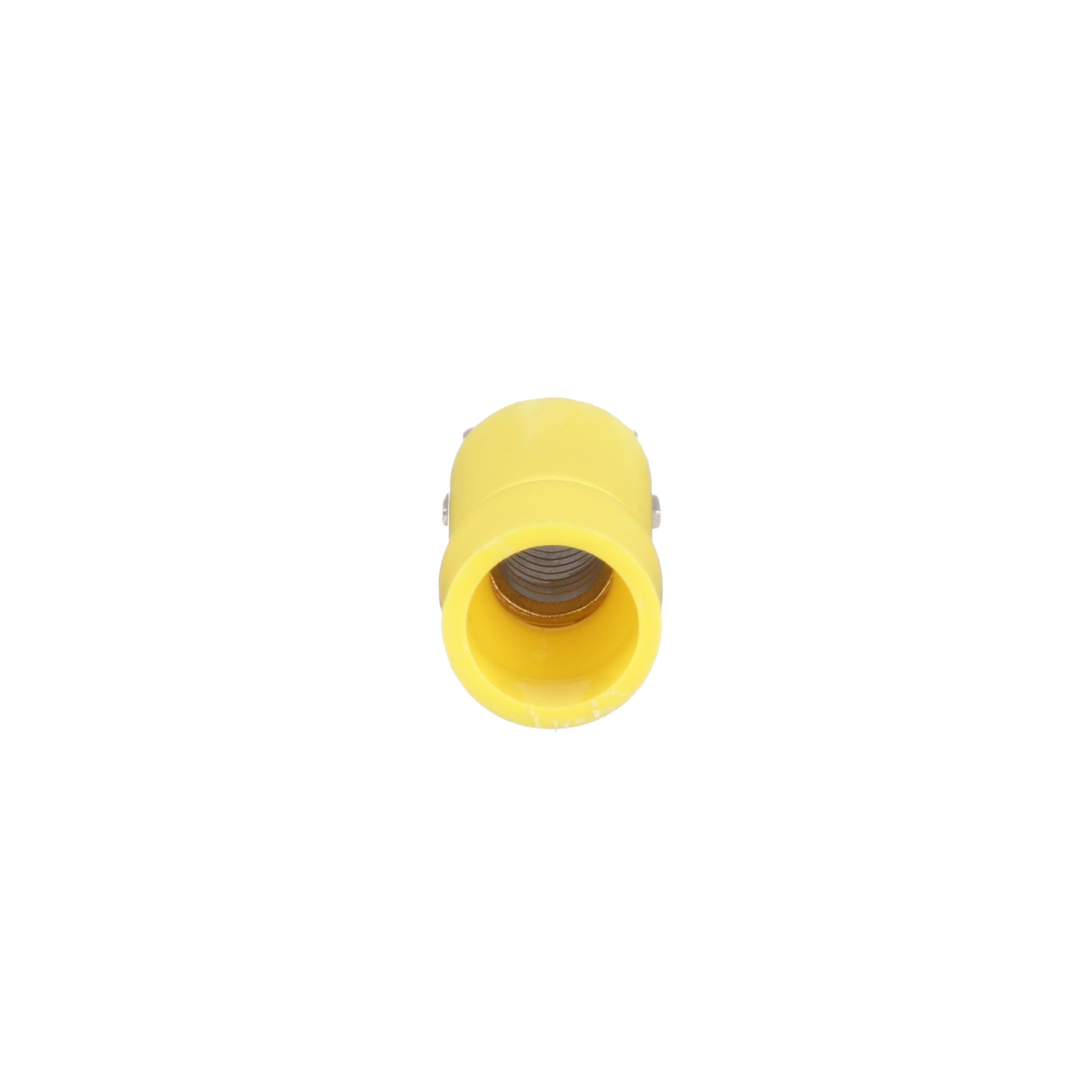

Panduit EDV10-250M-Q StrongHold Vinyl Insulated Male Disconnect 12-10 AWG

Product Description

The Panduit EDV10-250M-Q StrongHold disconnect is a vinyl insulated male disconnect designed for 12 to 10 AWG stranded copper conductors. It features a brazed seam and funnel entry barrel for ease of use. The disconnect offers reliable connection and disconnection for electrical repairs.

• For 12 to 10 AWG stranded copper conductors
• Vinyl insulation
• Tab size of 0.25 in W x 0.032 in THK

Product Highlights

StrongHold disconnect with vinyl insulation for reliable electrical connections and disconnections.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: EDV10-250M-Q
• Country of Origin: Mexico

Technical Specifications

• Brand: PANDUIT
• MPN: EDV10-250M-Q
• AWG: 12-10
• Tab Size: 0.25 in W x 0.032 in THK
• Base Material: Copper
• Finish/Coating: Nickel-Plated
• Conductor Size: 12 to 10 AWG
• Conductor Type: Stranded Copper
• Finish: Nickel Plated
• Material: Copper
• Series: DV-M
• Specifications: 0.235 in Dia Vinyl Insulation, 9/32 in L Wire Strip
• Standards/Approvals: ARRA Compliant|Buy American Act Compliant|cULus Listed|File No. E78522|RoHS Compliant
• Temperature Rating: 194 deg F
• Terminal Type: Male
• Type: Barrel Insulated Loose Piece
• Voltage Rating: 600 VAC
• Terminal Connection: Male
• Insulation Material: Vinyl
• Application: For CT-1550, CT-1551, CT-2300/ST and CT-2500/L crimp tools
