Panduit DVF14-250-C Pan-Term DVF14-250-C Loose Piece Disconnect

Product Description

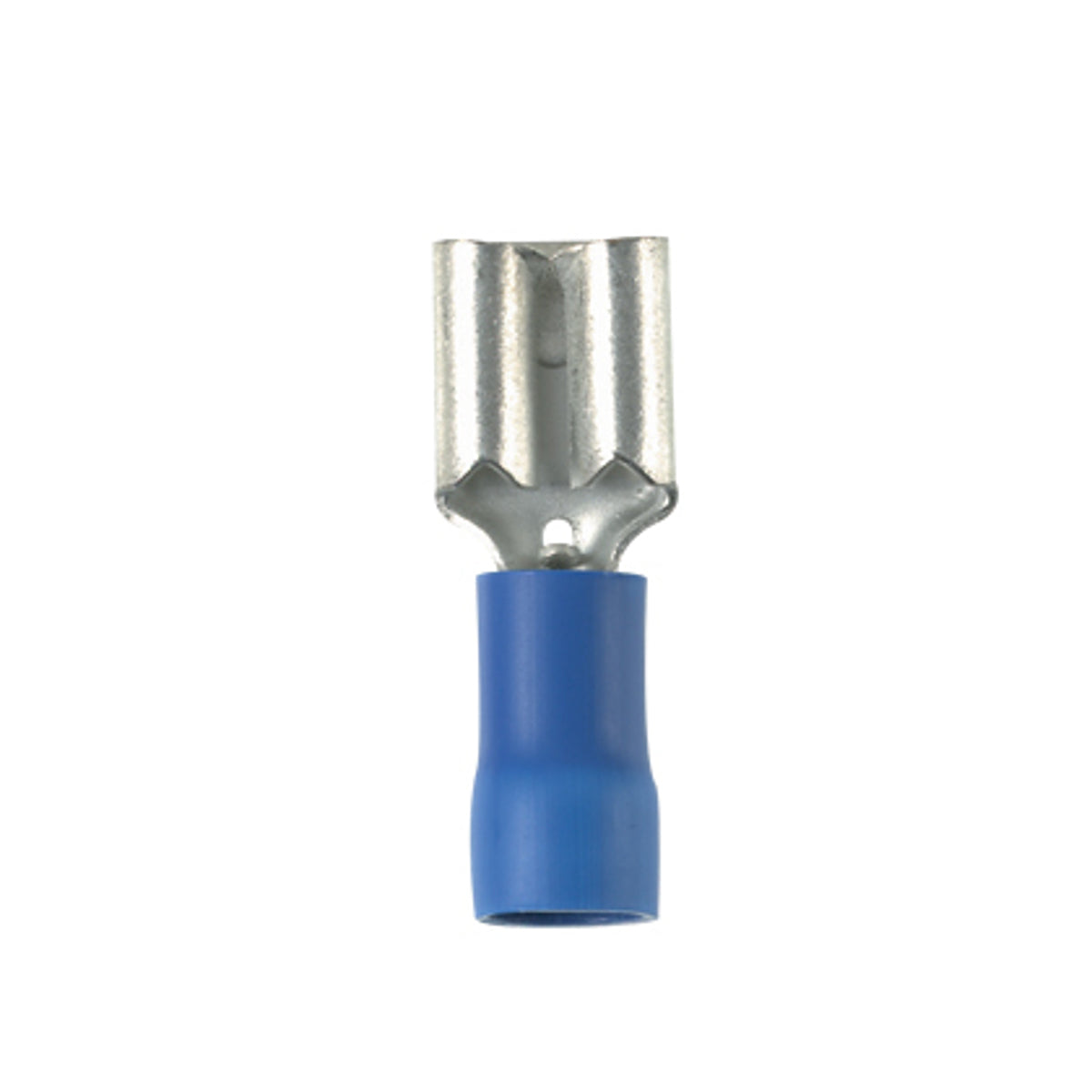

The Panduit DVF14-250-C Pan-Term vibration resistant female disconnect is made of brass with tin-plating and blue vinyl housing. Designed for a wire range of 16-14 AWG (1.5-2.5 mm), it features a 0.25 x 0.032 inch tab size and a funnel entry barrel configuration. The disconnect measures 0.81 inches long and 0.29 inches wide.

• Vibration resistant design ensures secure connections.
• Funnel entry simplifies wire insertion and prevents wire strand damage.
• Barrel insulated with blue vinyl for electrical protection.

Product Highlights

The Panduit Pan-Term disconnect provides reliable interconnections with its vibration-resistant design and easy wire insertion.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: DVF14-250-C
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: DVF14-250-C
• Manufacturer: Panduit
• Brand: Panduit
• Sub Brand: Pan-Term®
• Country of Origin: Mexico
• Made in USA: No
• Connection: Funnel Entry
• Finish: Tin-Plated
• Insulation: Vinyl
• Material: Brass
• Standard: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
• UPC: 074983820726
• GTIN: 00074983820726
• Item Type: Disconnect
• Temperature Rating: 194 Degrees Fahrenheit (90 Degrees Celsius)
• Voltage Rating: 300 V
• Wire Size: #14 AWG
• Application: For making quick and repeatable interconnections
• Conductor Size: 14 AWG
• Conductor Type: Stranded
• Tab Size: 0.25 in W x 0.032 in THK
