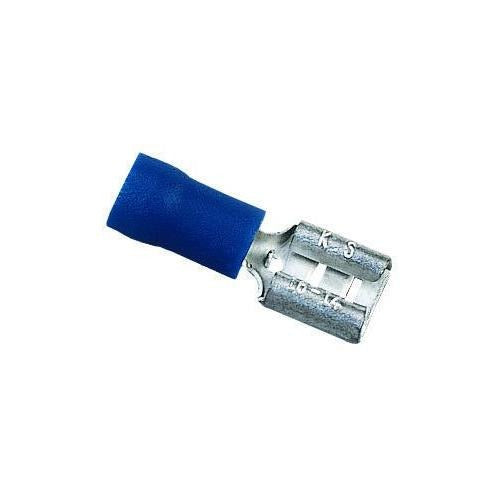

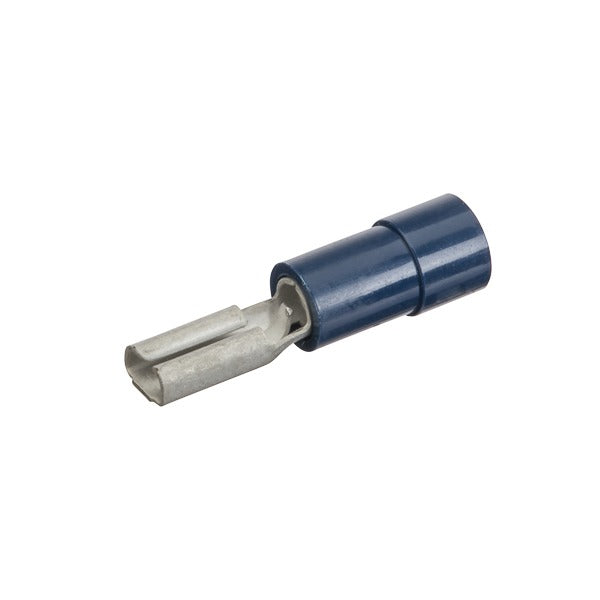

Panduit DVF14-188-C Female Disconnect 0.187 x 0.02 (100)

Brand: PANDUIT
SKU: DVF14-188-C
Availability: In Stock

Ships same day if ordered by 12 pm
$106.88
$106.88
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Panduit DVF14-188-C is a vibration-resistant female disconnect intended for crimp termination of 16–14 AWG stranded conductors. It features a tin-plated brass body with barrel vinyl insulation, a 0.187 x 0.02 in tab, and a funnel-entry/sleeved barrel with an internal wire stop. Typical dimensions are 0.76 in long by 0.23 in wide; the terminal is rated 300 V and 194°F and is supplied in 100-piece packs.

  • Accepts 16–14 AWG (1.5–2.5 mm2) stranded conductors; tab size 0.187 x 0.02 in (4.8 x 0.5 mm).
  • Tin-plated brass construction with vinyl barrel insulation, funnel-entry/sleeved barrel and insulation grip sleeve for strain relief.
  • Rated 300 V, 194°F (90°C); typical dimensions 0.76 in L x 0.23 in W x 0.1 in H; supplied in 100-piece packs.

Product Highlights

Vibration-resistant crimp female disconnect for 16–14 AWG with 0.187 x 0.02 in tab, 300 V rating, supplied in 100 packs.

Product Information

Standard Information

  • Brand: PANDUIT
  • Manufacturer Part Number: DVF14-188-C
  • Country of Origin: Mexico
Technical Specifications
Brand
Panduit
Manufacturer Part Number
DVF14-188-C
Type
Female disconnect
Terminal Type
Crimp
Series
DVF
Tab Size
0.187 in x 0.02 in (4.8 x 0.5 mm)
Conductor Size / Wire Range
16-14 AWG (1.5-2.5 mm2)
Conductor Type
Stranded
Material
Brass
Finish
Tin plated
Insulation
Vinyl, barrel insulated
Insulation Diameter
0.162 in
Barrel Configuration
Funnel entry / sleeved barrel
Barrel Feature
Insulation grip sleeve; internal wire stop
Dimensions
0.76 in L x 0.23 in W x 0.1 in H
Voltage Rating
300 V
Temperature Rating
194 °F (90 °C)
Wire Strip Length
9/32 in
Package Quantity
100 per pack
Standards / Approvals
UL 310; UL Listed 20H3 E78522; CSA LR31212 / C22.2 No. 153; UL94 V-0; RoHS Compliant; ARRA Compliant; Buy American Act Compliant
Item Type
Loose piece disconnect
UNSPSC Code
39121400
Country of Origin
Mexico
UPC
074983820764
