Panduit DVF14-187-C Female Disconnect Terminal .187 x .032 in 16-14 AWG 100 Pack

Brand: PANDUIT
SKU: DVF14-187-C
Availability: In Stock

Ships same day if ordered by 12 pm
$103.03
$103.03
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

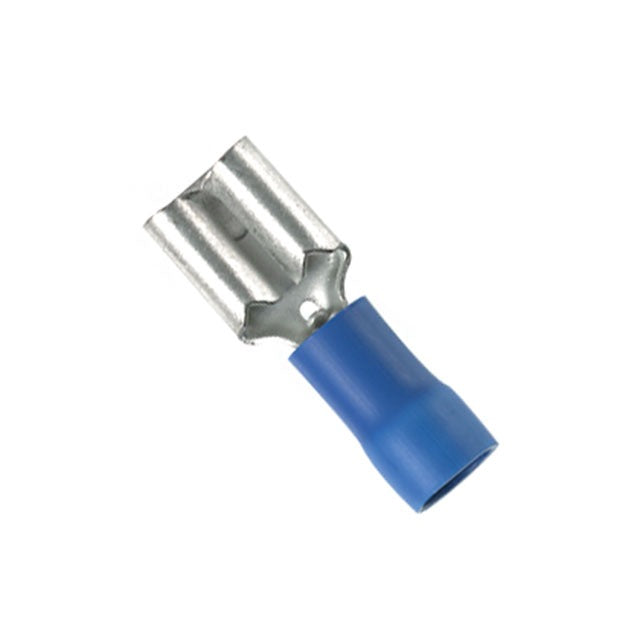

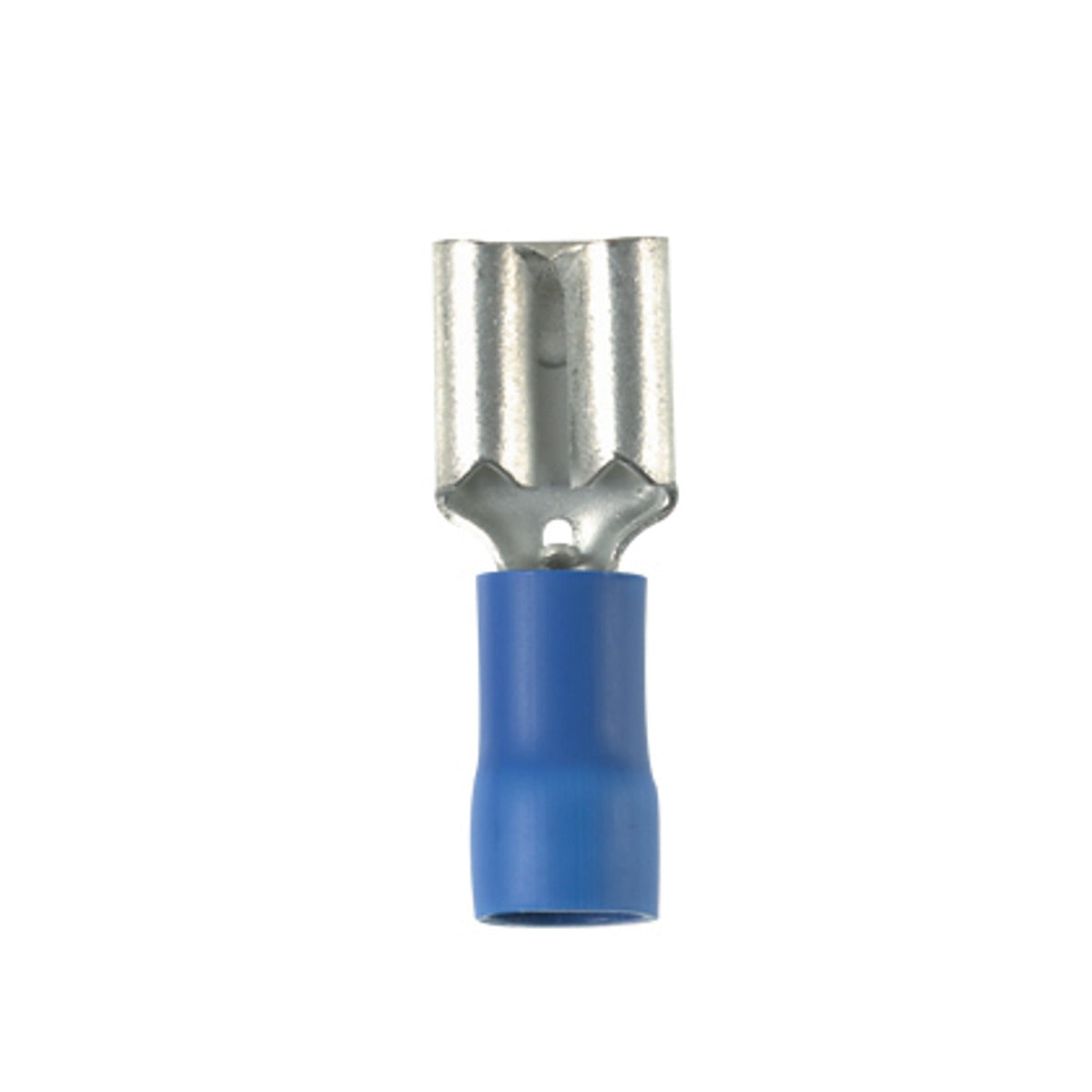

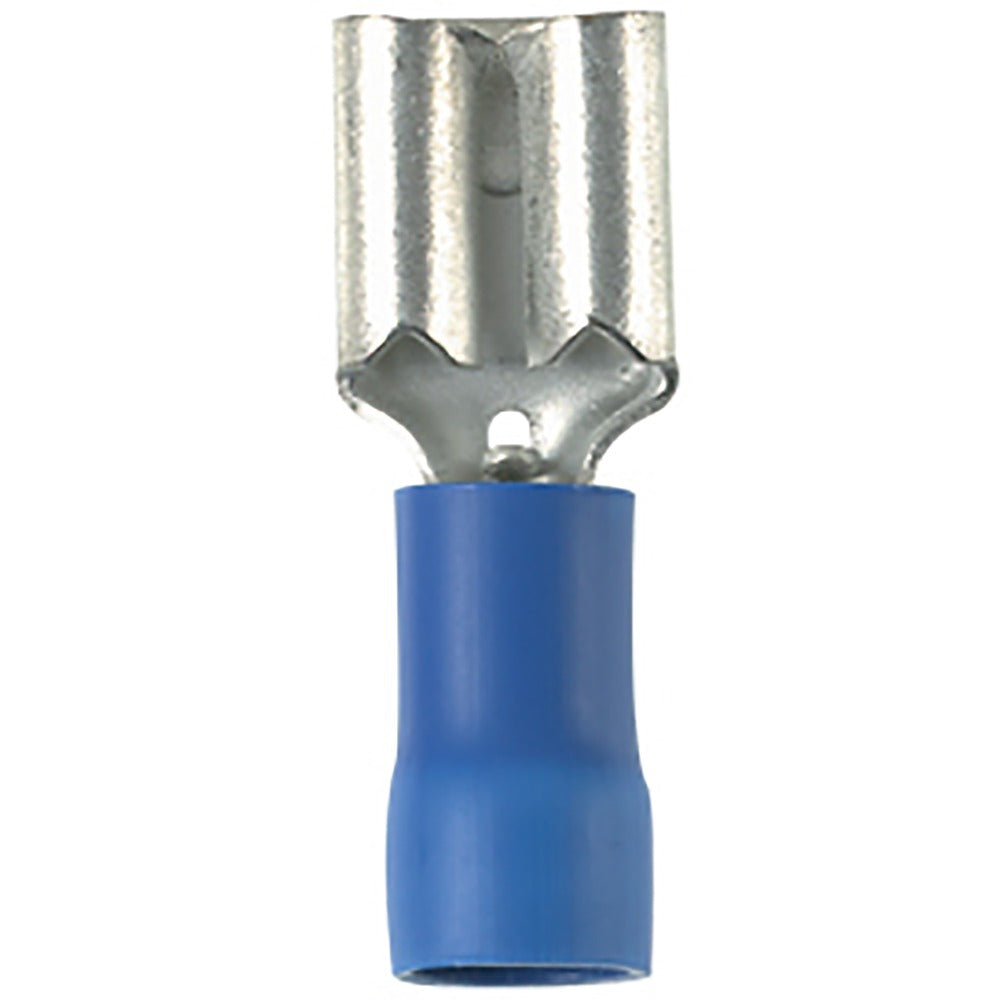

Panduit DVF14-187-C is a female disconnect terminal for crimp termination on 16-14 AWG conductors. The connector has a .187 x .032 inch tab with a vinyl barrel-insulated design and a tin-plated brass contact. Supplied in 100-piece packaging, the part measures approximately 0.760 inches overall and is rated to 300 V. Typical applications include quick-connect wire-to-wire and panel interconnects.

  • Female disconnect for 16-14 AWG with .187 x .032 in tab and crimp termination
  • Tin-plated brass contact with vinyl barrel insulation; insulation diameter ~0.162 in
  • Rated 300 V; overall length 0.760 in; UL and CSA certifications

Product Highlights

Insulated crimp female disconnect, .187 x .032 in tab, brass tinned contact, 300 V rating, 100-piece packaging

Product Information

Standard Information

  • Brand: PANDUIT
  • Manufacturer Part Number: DVF14-187-C
Technical Specifications
Manufacturer
Panduit
Manufacturer Part Number
DVF14-187-C
Type
Female disconnect terminal
Conductor size (AWG)
16-14 AWG
Tab size
0.187 x 0.032 in (4.8 x 0.8 mm)
Tab thickness
0.032 in (0.81 mm)
Length - Overall
0.760 in (19.30 mm)
Termination
Crimp
Insulation Type
Vinyl, barrel insulated (non-mating end insulated)
Insulation Diameter
0.162 in (4.11 mm)
Base Material
Brass
Contact Finish
Tinned
Voltage Rating
300 V
Certifications
UL 310 Listed; UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
Maximum Operating Temperature (C)
90
Packaging
100 pieces (bottle/pack)
Mounting Type
Free-hanging (in-line)
Series
Pan-Term
UNSPSC Code
39121400
UPC
074983820825
