Panduit dv18-250b-my Female Disconnect 22-18 Awg 1000 Pack

Product Description

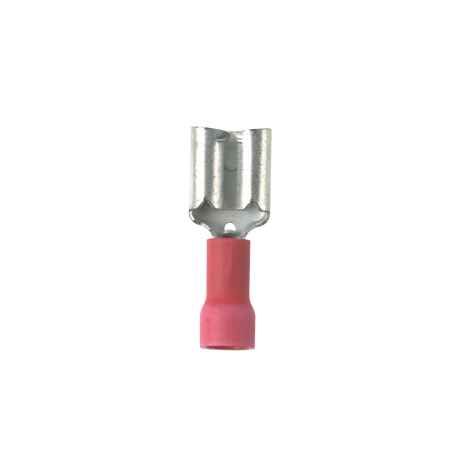

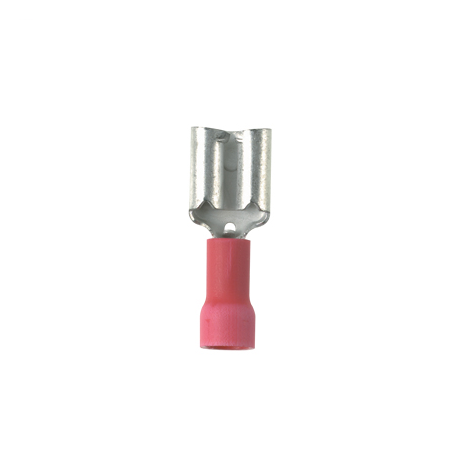

The PANDUIT dv18-250b-my is a vibration-resistant female disconnect terminal designed for reliable electrical connections in demanding environments. Constructed from brass with a tin-plated finish, the connector features a red vinyl barrel insulation and a funnel-entry barrel configuration for easier wire insertion. It accepts a 0.250 x 0.032 inch tab size and supports wire gauges from 22 to 18 AWG. The butted seam barrel construction and vinyl housing are suited for use up to 105 degrees C. Licensed electricians and electrical contractors install these terminals using standard crimping tools in panel wiring, control cabinet assembly, and harness fabrication work.

These female disconnects are appropriate for residential, commercial, and light industrial electrical applications where a secure, insulated push-on connection to a 0.250 inch male tab terminal is required. The red color coding follows standard AWG range identification, making it straightforward to sort and verify terminations during panel builds or harness assembly. The funnel-entry design reduces wire miss-insertion on production lines or in the field. Each package contains 1000 terminals, making this SKU suited for contractors and shops with ongoing volume needs.

Key Features

• Brass construction with tin-plated finish for corrosion resistance and reliable electrical contact
• Vibration-resistant design suited for environments with mechanical stress
• Funnel-entry barrel configuration aids wire insertion and reduces mis-terminations
• Red vinyl barrel insulation with color coding for 22-18 AWG wire range
• 0.250 x 0.032 inch tab size for standard male disconnect tabs
• Rated up to 105 degrees C maximum operating temperature
• Sold in packages of 1000 for volume applications

Compatibility

Designed as an OEM-style replacement or standard-stock female disconnect for applications using 0.250 inch tab male terminals with 22-18 AWG copper wire.

Installation Notes

Installation should be performed by a qualified electrician following applicable NEC guidelines. De-energize all circuits before terminating or removing disconnect terminals. Use a calibrated ratcheting crimp tool rated for insulated disconnect terminals in the 22-18 AWG range to ensure a proper mechanical and electrical connection. Do not attempt to re-crimp or re-use terminals that have already been installed and removed.

Technical Specifications

• Tab Size: 0.250 x 0.032 inches
• Wire Range: 22-18 AWG
• Overall Length: 0.81 inches
• Width: 0.29 inches
• Height: 0.12 inches
• Max Operating Temperature: 105 degrees C
• Barrel Type: Butted Seam
• Barrel Configuration: Funnel Entry
• Insulation Material: Vinyl
• Color Coding: Red
• Finish: Tinned
• Base Material: Brass
• Package Quantity: 1000
• Package Weight: 1.9 pounds

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: dv18-250b-my
