Panduit DV18-250B-CY Pan-Term Loose Piece Disconnect 600V 1

Product Description

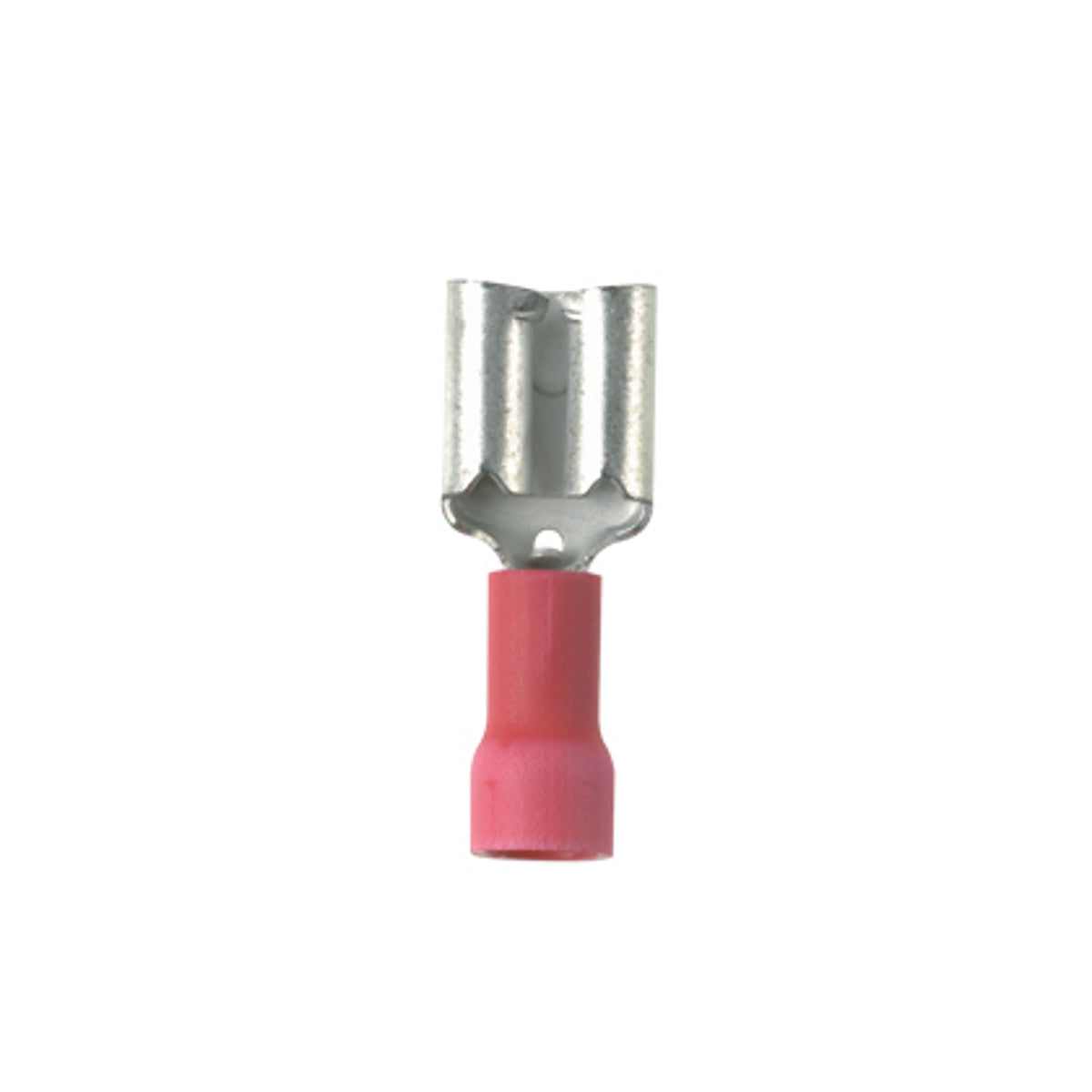

The Panduit DV18-250B-CY is a female disconnect terminal designed for secure electrical connections. It is made of tin-plated brass and features a vinyl insulation for added protection. This disconnect is suitable for use with stranded copper wire ranging from twenty-two to eighteen AWG. The product measures zero point eighty-one inches long and zero point twenty-nine inches wide. It is designed to accommodate a tab size of zero point two fifty inches wide by zero point zero thirty-two inches thick.

• Temperature rating of up to 221 degrees Fahrenheit (105 degrees Celsius).
• Voltage rating of 600 volts.
• Compliant with UL and CSA standards.

Product Highlights

This disconnect terminal supports efficient and reliable electrical connections in various applications, including automotive and industrial uses.

Product Information

Standard Information

• Catalog Number: DV18-250B-CY
• Manufacturer: Panduit

Technical Specifications

• Material: Brass
• Insulation: Vinyl
• Finish: Tin-Plated
• Connection Type: Funnel Entry
• Wire Size: #18 to #22 AWG
• Dimensions: 0.81 inches by 0.29 inches
• Wire Strip Length: 9/32 inches
• Standards: UL 310 Listed, CSA Certified
• Cross Reference Products: 3M 71F-250-32-P, 3M FDV18-250
