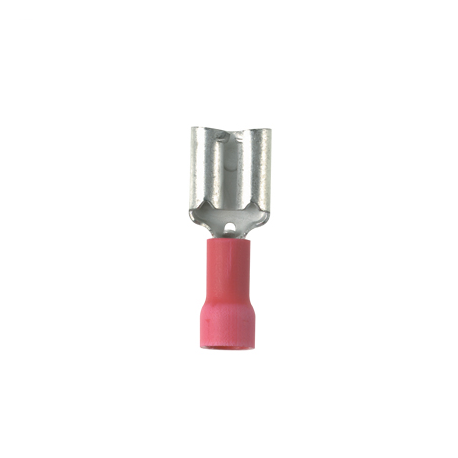

Panduit DV18-206B-CY Female Disconnect Vinyl Insulated (100 Pack)

Product Description

Panduit DV18-206B-CY is a vibration-resistant female disconnect designed for 22-18 AWG conductors. The tin-plated brass terminal has a vinyl-insulated barrel with a funnel-entry, butted-seam construction and a 0.187/0.205 x 0.02 in tab. Overall dimensions include a 0.75 in length, 0.25 in width, and 0.12 in height; maximum operating temperature is 105 degrees Celsius. Typical applications include wire termination in control panels, appliances, and automotive electrical systems.

• Vibration-resistant female disconnect constructed from tin-plated brass with vinyl-insulated barrel
• Funnel-entry, butted-seam barrel with tab size 0.187/0.205 x 0.02 in (4.8/5.2 x 0.5 mm) for secure mating
• Fits 22-18 AWG (0.5-1.0 mm2) conductors; overall length 0.75 in, width 0.25 in, height 0.12 in; max operating temperature 105 degrees Celsius

Product Highlights

Funnel-entry butted-seam barrel; tin-plated brass with vinyl insulation; fits 22-18 AWG; 0.187/0.205 x 0.02 in tab; 0.75 in length.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: DV18-206B-CY
