PANDUIT Panduit DV18-205B-CY Female Disconnect Terminal .187/.205 x .032 Inch 1000 Pack DV18-205B-C
PANDUIT Panduit DV18-205B-CY Female Disconnect Terminal .187/.205 x .032 Inch 1000 Pack DV18-205B-C

Panduit DV18-205B-CY Female Disconnect Terminal .187/.205 x .032 Inch 1000 Pack DV18-205B-C

Brand: PANDUIT
SKU: DV18-205B-CY
Availability: In Stock

Ships same day if ordered by 12 pm
$76.88
$76.88
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

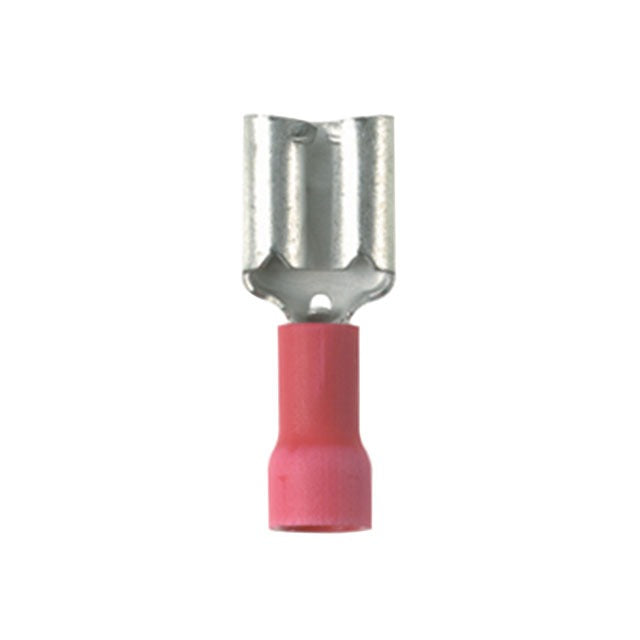

Panduit DV18-205B-CY is a female quick-disconnect terminal sized .187/.205 x .032 inches designed for 18 AWG wire and supplied in a 1000 pack. The connector features a tin-plated brass contact with a vinyl-insulated barrel, butted seam and funnel entry for crimp termination. It is UL and CSA listed, rated to 600 V and 105 C (221 F) for general wire-to-wire and wire-to-terminal quick-disconnect applications.

  • Tab receptacle size .187/.205 x .032 in for 18 AWG conductors
  • Tin-plated brass contact with vinyl-insulated barrel and butted seam
  • UL and CSA certifications; maximum voltage 600 V, temperature rating 105 C (221 F)

Product Highlights

Female quick-disconnect terminal, tin-plated brass contact, vinyl-insulated barrel, pack of 1000

Product Information

Standard Information

  • Brand: PANDUIT
  • Manufacturer Part Number: DV18-205B-CY
  • Country of Origin: Hong Kong
Technical Specifications
Manufacturer
PANDUIT
MPN
DV18-205B-CY
Type
Female disconnect / Quick-disconnect terminal
Series
Pan-Term
Tab Size
.187/.205 x .032 in
Tab Thickness
0.032 in
Wire Gauge
18 AWG
Insulation Material
Vinyl (barrel insulated)
Insulation Diameter
0.15 in (3.8 mm)
Length Overall
0.75 in (19.1 mm)
Contact Material
Brass
Contact Finish
Tin plated
Barrel Construction
Funnel entry barrel, butted seam
Maximum Voltage
600 V
Temperature Rating
105 C (221 F)
Standards/Certifications
UL 310 Listed; UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
Mounting Type
Free hanging (in-line)
Pack Quantity
1000
Packaging
Pack
RoHS Status
RoHS compliant
Replacement MPN
DV18-205B-C
