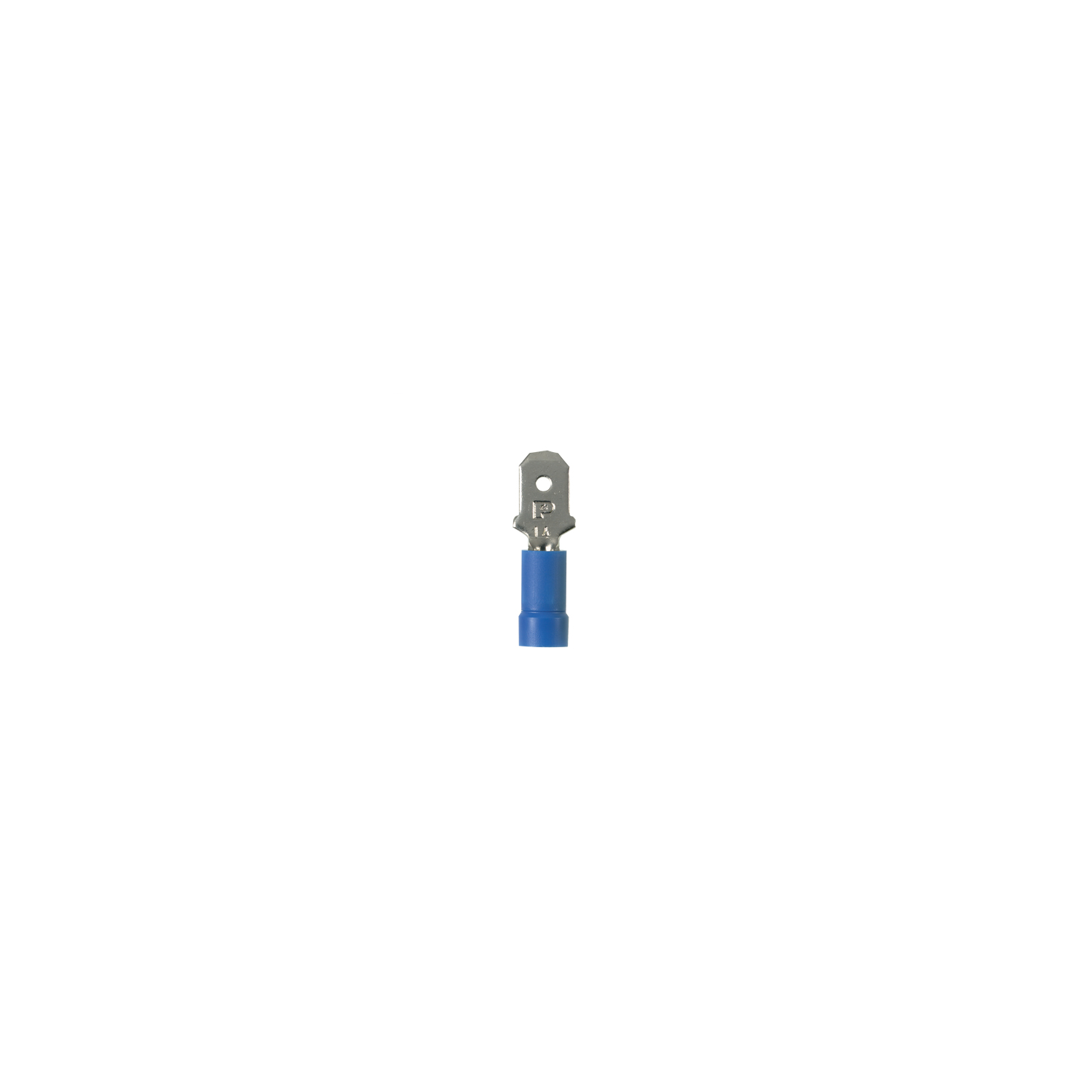

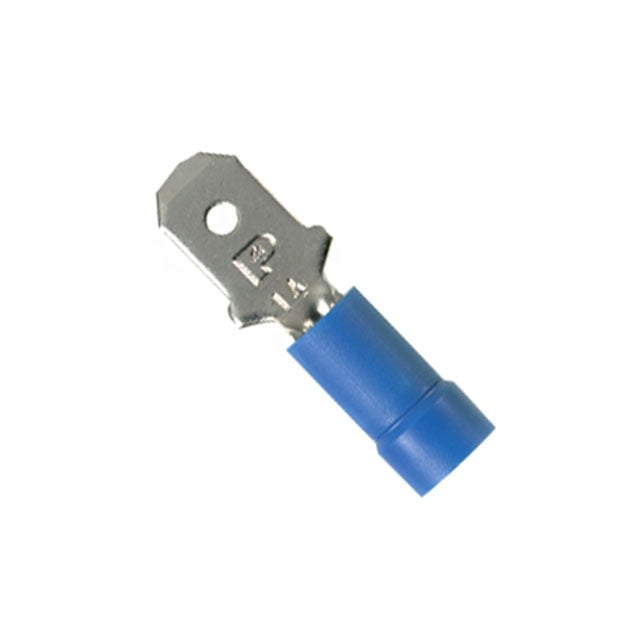

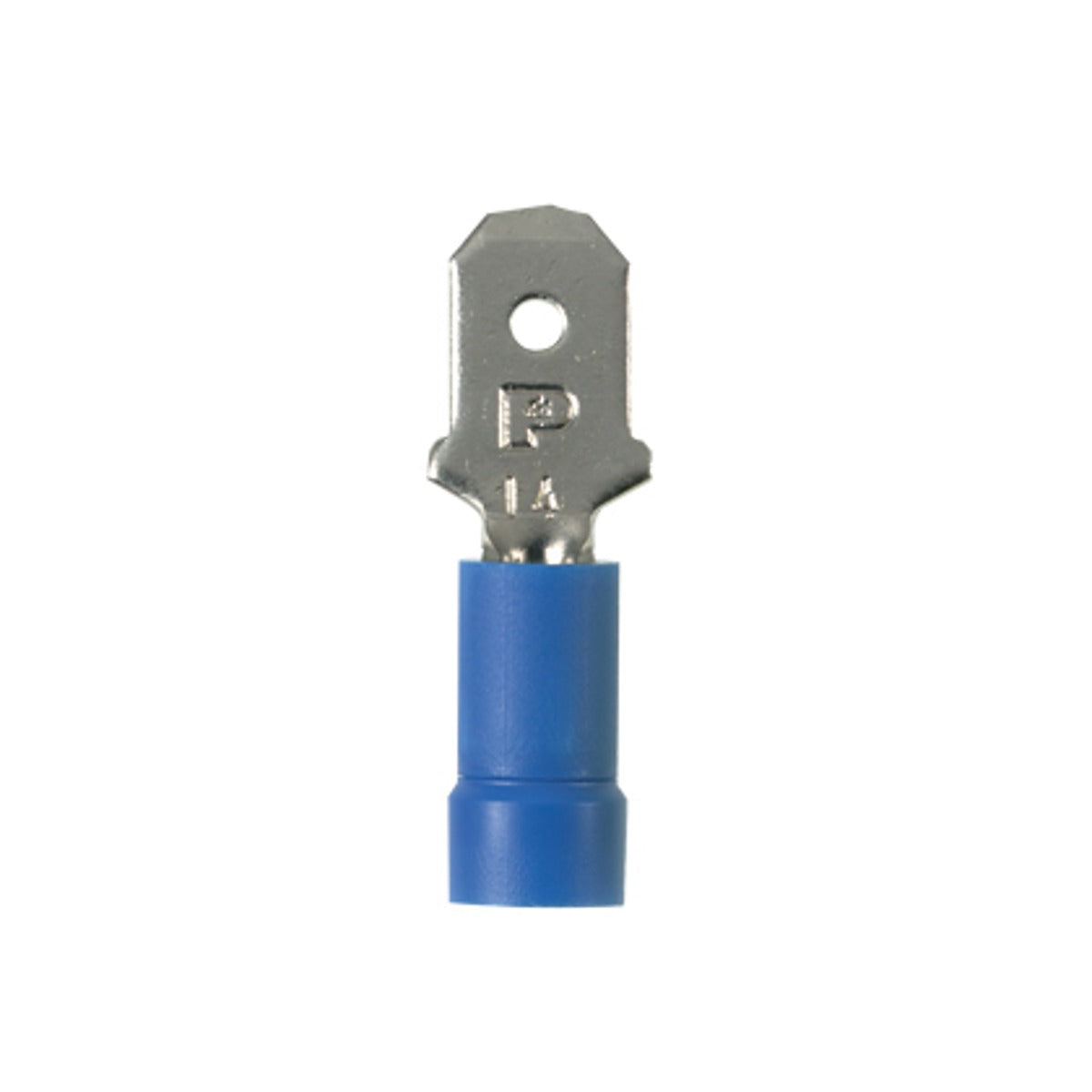

Panduit DV14-250MB-M Disc M .25 x .032 16-14 AWG (1000 Pack)

Brand: PANDUIT
SKU: DV14-250MB-M
Availability: In Stock

Ships same day if ordered by 12 pm
$336.00
$336.00
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Panduit DV14-250MB-M is a barrel-insulated male disconnect terminal for 16 to 14 AWG stranded conductors. It accepts a 0.250 x 0.032 in quick-connect tab and features a funnel-entry vinyl barrel with insulation support to reduce wire damage. The contact is nickel plated on copper and the terminal is UL and CSA rated for up to 600 V and 105 degrees Celsius.

  • Accepts 0.250 x 0.032 in tab; compatible with 16–14 AWG stranded conductors
  • Vinyl barrel insulation with funnel-entry and butted seam to aid wire insertion and reduce bending damage
  • Nickel-plated copper contact; UL 310 and CSA certified; rated to 600 V and 105°C

Product Highlights

Barrel-insulated male quick-disconnect for 16–14 AWG with .250 x .032 in tab and UL/CSA listings

Product Information

Standard Information

  • Brand: PANDUIT
  • Manufacturer Part Number: DV14-250MB-M
  • Country of Origin: Mexico
Technical Specifications
Manufacturer
Panduit
MPN
DV14-250MB-M
Brand
Panduit
Series
Pan-Term (DV-MB)
Type
Barrel insulated male disconnect
Terminal Type
Male
Tab Size
.250 x .032 in (6.35 x 0.81 mm)
Wire Gauge
16-14 AWG (1.5-2.5 mm2)
Material
Copper
Contact Finish
Nickel plated
Insulation
Vinyl barrel insulated, funnel-entry
Insulation Diameter
0.180 in (4.57 mm)
Barrel Configuration
Funnel entry, butted seam barrel
Conductor Type
Stranded
Voltage Rating
600 V
Temperature Rating
105 deg C (221 deg F)
Overall Length
0.96 in (24.4 mm)
Width
0.25 in (6.4 mm)
Mounting Type
Free hanging (in-line)
Certifications
UL 310 Listed; UL Listed 20H3 E78522; CSA Certified LR31212; C22.2 No.153
Packaging Quantity
1000 per box
Country of Origin
Mexico
Part Status
Obsolete
UPC
074983822263
