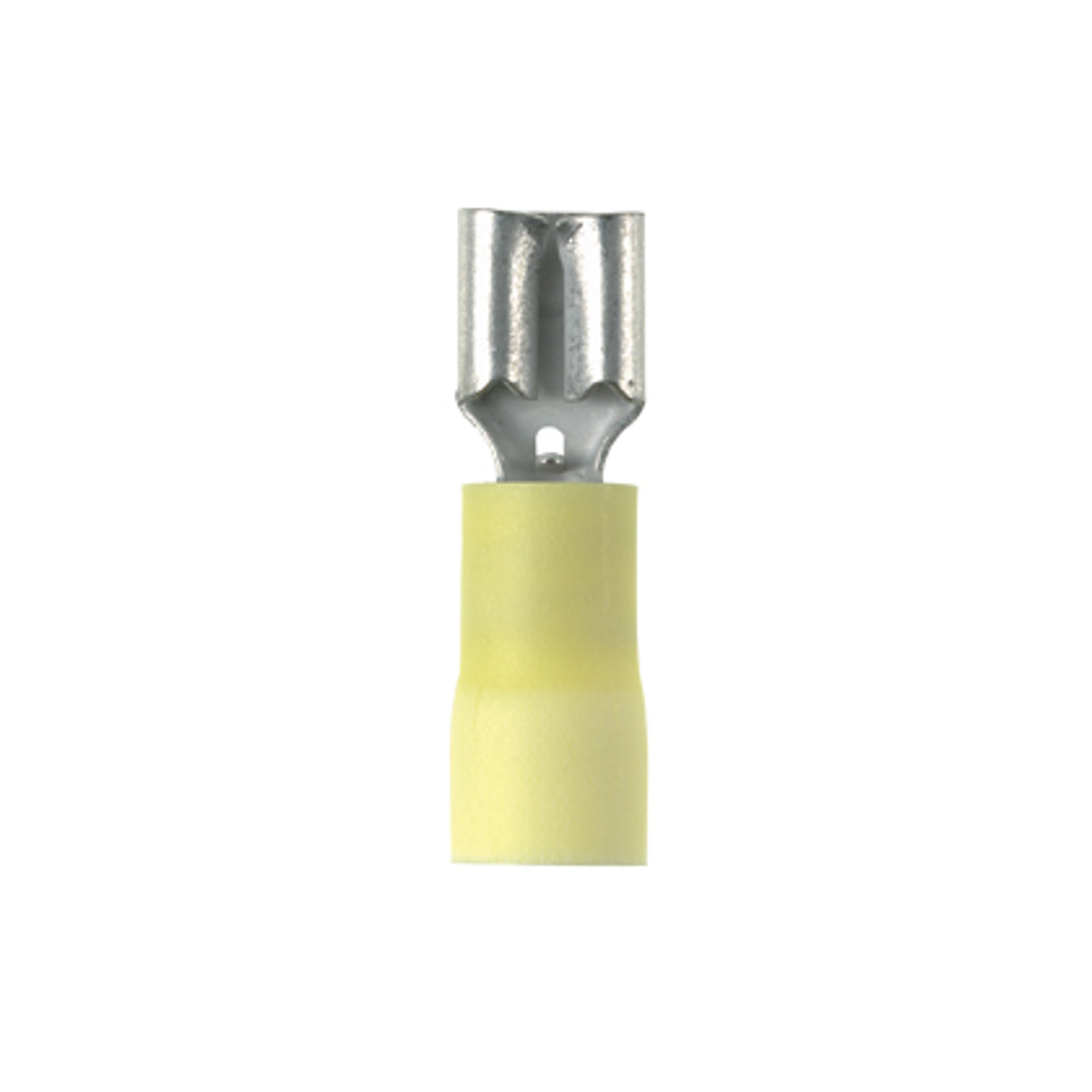

Panduit DV10-250-L Pan-Term Female Disconnect 10 AWG .25 x .032 Tab

Product Description

Panduit DV10-250-L is a Pan-Term female disconnect designed for secure electrical connections. It features a vinyl insulated barrel and a funnel entry for easy insertion. The internal wire stop ensures the correct length of wire insertion for a reliable connection. The barrel has serrations that enhance wire contact and tensile strength.

• Disconnect can be used without tools, allowing quick insertions and removals.
• Internal wire stop guarantees proper wire length for improved connections.
• UL flammability rated, max temperature of 221 degrees Fahrenheit.

Product Highlights

This product is suitable for various applications where secure wire connections are necessary, especially in environments that experience high vibrations.

Product Information

Standard Information

• Type: Copper - Other
• Manufacturer: Panduit

Technical Specifications

• Wire Size: 10 AWG
• Voltage Rating: 600 V
• Temperature Rating: 221 degrees Fahrenheit (105 degrees Celsius)
• Material: Brass
• Finish: Tin-Plated
• Insulation: Vinyl
• Tab Size: 0.25 in W x 0.032 in THK
• Connection: Funnel Entry
