Panduit dv10-250-d Female Disconnect 12-10 Awg 500-pack

Product Description

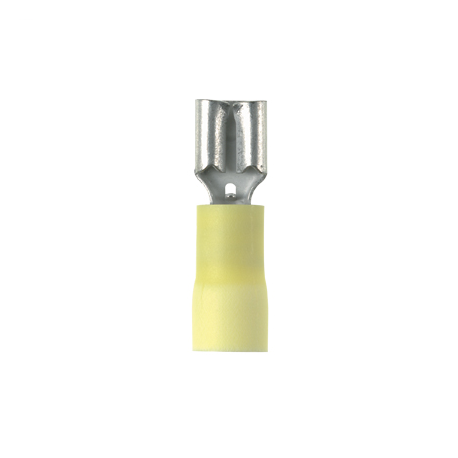

The PANDUIT dv10-250-d is a vibration-resistant female disconnect terminal designed for secure, reliable electrical connections in demanding environments. Constructed from brass with a tin-plated finish, it features a yellow vinyl barrel insulation and a funnel-entry sleeved barrel configuration that guides wire insertion and reduces installation errors. The tab size measures 0.250 x 0.032 inches, and the connector accommodates wire ranges of 12-10 AWG. At 1.03 inches in overall length and 0.3 inches wide, this compact disconnect is suited for panel wiring, control circuits, and branch circuit terminations where vibration resistance is a priority. Licensed electricians and experienced industrial maintenance technicians are the primary installers.

This disconnect is used in residential, commercial, and light industrial electrical applications where a reliable push-on terminal connection is required. The yellow color coding aligns with standard wire range identification for 12-10 AWG conductors, making sorting and inspection straightforward on the job. The funnel-entry barrel design is particularly useful in high-volume termination work where speed and consistency matter. Each package contains 500 units, making this product well-suited for contractors and shops that terminate wire in quantity.

Key Features

• Vibration-resistant design maintains connection integrity in dynamic or high-vibration installations
• Brass construction with tin-plated finish provides corrosion resistance and reliable conductivity
• Yellow vinyl barrel insulation with color coding matched to 12-10 AWG wire range
• Funnel-entry sleeved barrel simplifies wire insertion and reduces mis-terminations
• Tab size of 0.250 x 0.032 inches fits standard female disconnect receptacles
• Sold in packages of 500 for high-volume termination work

Compatibility

Designed as an OEM-style female disconnect terminal for use with 0.250-inch tab male receptacles on 12-10 AWG copper conductors in standard push-on disconnect applications.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements. De-energize and lock out the circuit before terminating any conductors. Use a calibrated ratcheting crimping tool appropriate for insulated disconnect terminals to ensure a proper crimp without damaging the vinyl insulation. Do not solder crimped terminals, as this can cause brittleness at the barrel and degrade vibration resistance.

Technical Specifications

• Wire Range: 12-10 AWG
• Tab Size: 0.250 x 0.032 inches
• Overall Length: 1.03 inches
• Width: 0.3 inches
• Height: 0.13 inches
• Material: Brass
• Finish: Tin-Plated
• Insulation Color: Yellow
• Barrel Type: Sleeved, Funnel Entry
• Max Operating Temperature: 150 degrees C
• Package Quantity: 500
• Package Weight: 2.050 pounds

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: dv10-250-d
