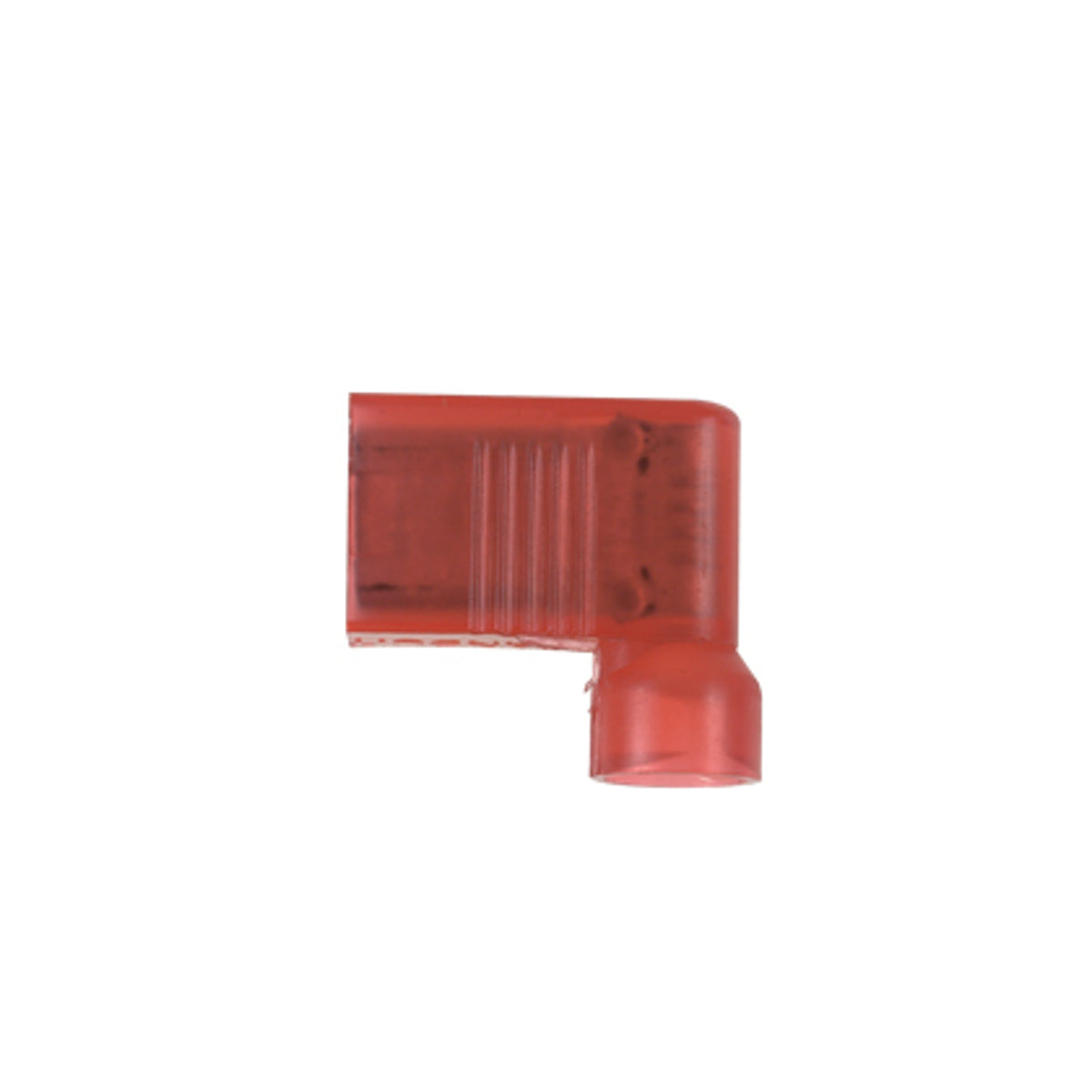

Panduit DNFR18-250FIB-M Pan-Term Disconnect, 90, Ins., Nylon, 18-22 AWG, .25x.032 inches

Product Description

The PANDUIT DNFR18-250FIB-M is a Pan-Term female disconnect. This vibration-resistant, right-angle style disconnect is made of brass with tin plating and fully insulated in nylon. It supports a wire range of 22-18 AWG. The disconnect features a funnel entry barrel configuration and a butted seam barrel.

• Continuously molded design provides reliable, consistent performance
• Disconnect can be inserted and removed without tools
• Internal barrel serrations assure good wire contact and maximum tensile strength

Product Highlights

The PANDUIT DNFR18-250FIB-M disconnect ensures reliable electrical connections with its durable construction and user-friendly design.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: DNFR18-250FIB-M
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: DNFR18-250FIB-M
• Manufacturer: Panduit
• Brand: Panduit
• Sub Brand: Pan-Term
• Country of Origin: Mexico
• Made in USA: No
• Color: Red
• Connection: Funnel Entry
• Finish: Tin-Plated
• Insulation: Nylon
• Material: Brass
• Standard: UL 310, CSA 22.2 No.153
• UPC: 074983826131
• GTIN: 00074983826131
• Item Type: Disconnect
• Temperature Rating: 221 Degrees Fahrenheit (105 Degrees Celsius)
• Voltage Rating: 600 V
• Wire Size: 18 AWG
• Application: For making quick and repeatable interconnections
• Conductor Type: Stranded
• Dimensions: 0.58 in L x 0.37 in W x 0.6 in H
• Insulated: Fully Insulated
• Specifications: 0.178 in Dia Nylon Insulation, 11/32 in Mounting Hole Size, 9/32 in L Wire Strip
• Standards/Approvals: ARRA Compliant|Buy American Act Compliant|CSA File No. LR31212/C22.2 File No. 153|RoHS Compliant|UL 310/20H3 File No. E78522|UL94 V-2 HB Flammability Rated
• Tab Size: 0.25 in W x 0.032 in THK
• Terminal Type: Crimp
• Type: Type DNFR-FIB Loose Piece Vibration-Resistant
• Wire Gauge: 18-22 AWG
• Series: Pan-Term
• Mounting Type: Free Hanging (In-Line), Right Angle
• Contact Material: Brass
• Gender: Female
• Contact Finish: Tin
• Insulation Diameter: 0.178" (4.52mm)
• Tab Thickness: 0.032" (0.81mm)
• Base Product Number: DNFR18
• Maximum Operating Temperature: 105 °C, 221 °F
• Finish/Coating: Tinned
• Insulation Material: Nylon-Fully Insulated
• Minimum Wire Size: 22 AWG
• Wire Insulation Diameter: .18 in, 4.5 mm
• Barrel Type: Butted Seam
• Product Type: Female Disconnect-Right Angle
