Panduit DNFR18-250FIB-L Pan-Term Disconnect, 18-22 AWG, 0.25 inches Tab, PK50

Product Description

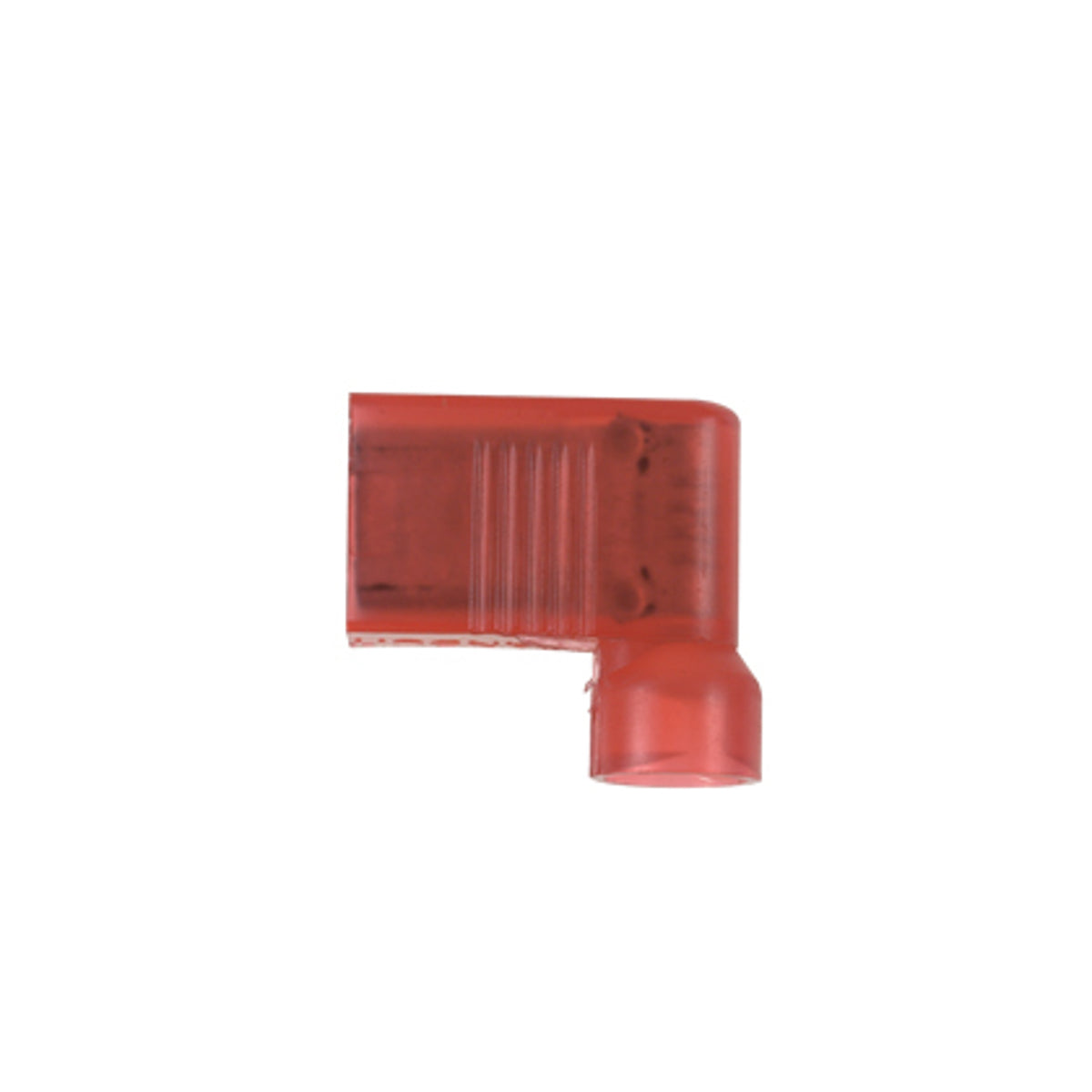

The PANDUIT DNFR18-250FIB-L Pan-Term disconnect is a vibration resistant, right angle style female disconnect made of brass with tin-plating and full nylon insulation. It supports a wire range of 18-22 AWG and has a 0.25" tab size. The disconnect features a funnel entry barrel configuration and comes in a pack of 50.

• Disconnect can be inserted and removed from the male tab without tools.
• Nylon insulation provides a tight grip around the wire for strain relief.
• Fully insulated design provides protection from electrical shorts.

Product Highlights

The DNFR18-250FIB-L disconnect ensures secure and repeatable interconnections with its vibration-resistant design and full insulation.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: DNFR18-250FIB-L
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: DNFR18-250FIB-L
• Manufacturer: Panduit
• Brand: Panduit
• Sub Brand: Pan-Term®
• Country of Origin: Mexico
• Made in USA: No
• Color: Red
• Connection: Funnel Entry
• Finish: Tin-Plated
• Insulation: Nylon
• Material: Brass
• Standard: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
• UPC: 074983118038
• GTIN: 00074983118038
• Item Type: Disconnect
• Temperature Rating: 221 Degrees Fahrenheit (105 Degrees Celsius)
• Voltage Rating: 600 V
• Wire Size: #18 AWG
• Application: For making quick and repeatable interconnections
• Conductor Size: 18 AWG
• Conductor Type: Stranded
• Insulated: Fully Insulated
• Tab Size: 0.25 in W x 0.032 in THK
• Terminal Type: Crimp
• Type: Type DNFR-FIB Loose Piece Vibration-Resistant
• Standards/Approvals: ARRA Compliant|Buy American Act Compliant|CSA File No. LR31212/C22.2 File No. 153|RoHS Compliant|UL 310/20H3 File No. E78522|UL94 V-2 HB Flammability Rated
• Flammability Rating: HB
• Insulation Coverage: Full Coverage
• Maximum Temperature: 221 °F
• Maximum Wire Size: 18 AWG
• Minimum Wire Size: 22 AWG
• Overall Length: 0.58 in
• Package Qty: 50
• Strip Length: 5/16 in
• Tab Thickness: 0.032 in
• Disconnect Style: Flag Quick Disconnect
• Contact Finish: Tin
• Contact Material: Brass
