Panduit DNFR14-250B-L Pan-Term Disconnect, 90, 14-16 AWG, 0.250 x 0.032 inches

Product Description

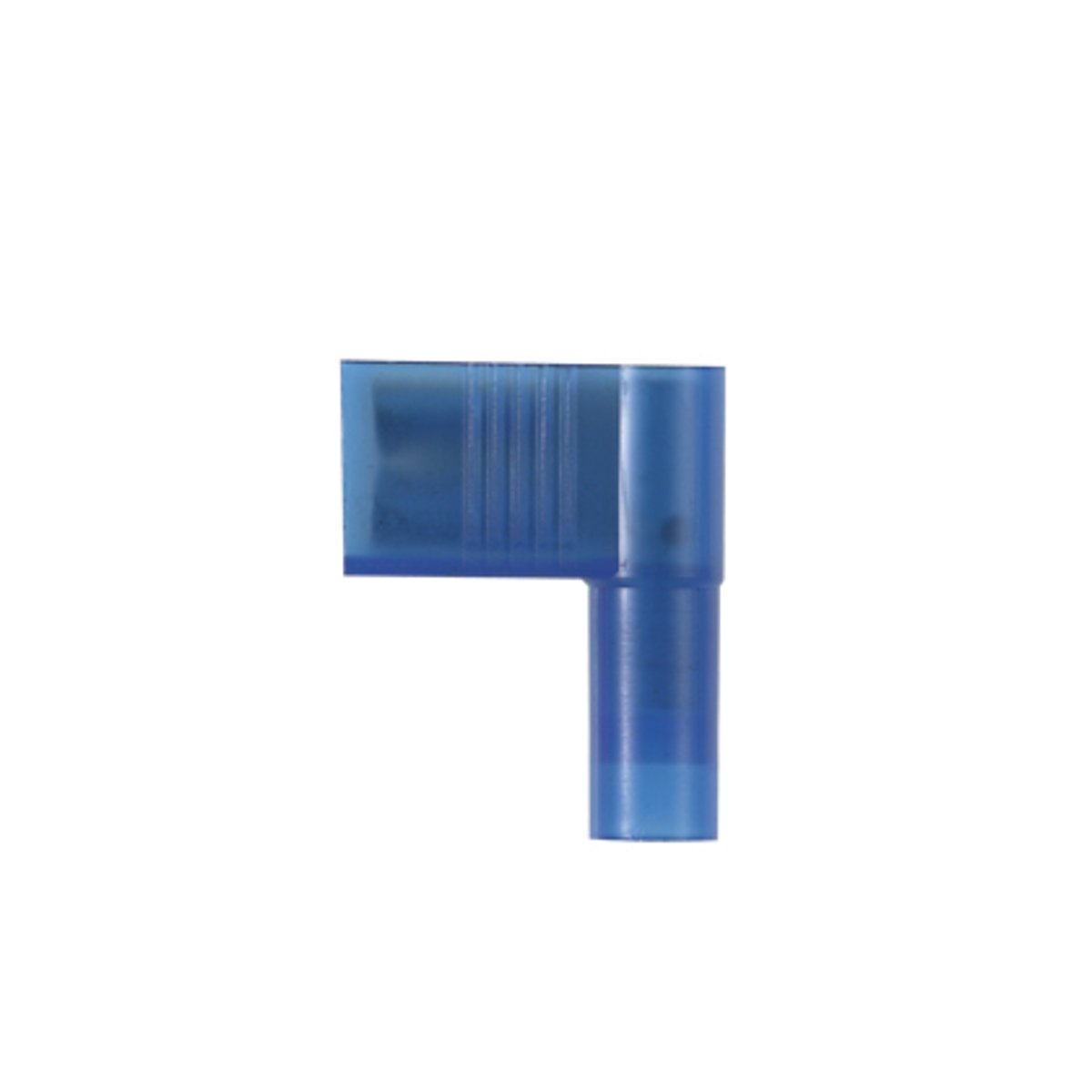

The Panduit DNFR14-250B-L is a female disconnect. This vibration resistant, right angle style disconnect is made of brass with a tin-plated finish and insulated with blue nylon. It supports a wire range of 14-16 AWG. It features a funnel entry configuration and a butted seam barrel.

• Vibration resistant
• Right angle style female disconnect
• Supports wire range of 16-14 AWG
• Funnel entry configuration

Product Highlights

The Panduit DNFR14-250B-L female disconnect ensures reliable performance with its durable construction and secure fit. Ideal for various electrical connections.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: DNFR14-250B-L
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: DNFR14-250B-L
• Manufacturer: Panduit
• Brand: Panduit
• Sub Brand: Pan-Term
• Country of Origin: Mexico
• Made in USA: No
• Color: Blue
• Connection: Funnel Entry
• Finish: Tin-Plated
• Insulation: Nylon
• Material: Brass
• Standard: UL 310, CSA 22.2 No.153
• UPC: 074983124572
• GTIN: 00074983124572
• Item Type: Disconnect
• Temperature Rating: 221 Degrees Fahrenheit (105 Degrees Celsius)
• Voltage Rating: 600
• Wire Size: 14-16 AWG
• Cross Reference Products: Lawson 88736|Midland NF14-250FFD|Panduit DNFR14-250B-L|Teledyne FR6B-250F
• IGCC: 4543
• Type: Disconnect
• Weight: 0.21
• Mounting: Sep-32 In.
• Family group: CONNECTORS
• WES Product code: 2885068650
• Product Category: Products
• Connectors: Crimp Terminals, Housings, Splices, & Lugs
• Crimp Terminals, Housings, & Splices: Crimp Quick Disconnect Tab Terminals
• Manufacturer Part Number: Panduit DNFR14-250B-L
• Maximum Operating Temperature: 105 °C, 221 °F
• Finish/Coating: Tinned
• Insulation Material: Nylon
• Minimum Wire Size: 16 AWG
• Wire Insulation Diameter: .13 in, 3.3 mm
• Barrel Type: Butted Seam
• Product Type: Female Disconnect-Right Angle
• Tab Size: .25 in, 6.3 mm
• SKU: PANDNFR14-250B-L
• Environmental Initiative: ROHS
• Compliant: Yes
• Date of this Information: Unknown
• Number of Ports: 1
• Termination Type: Crimp
• Connector Style: Disconnect
• Number of Pins: 1
• Contact Material: Copper
• Number of Poles: 1
• Compatible Mounting Type: Wire
• Series: Pan-Term
• Part Status: Active
• Terminal Type: Angled - 90°, Flag
• Contact Finish: Tin
• Tab Width: 0.250" (6.35mm)
• Insulation Diameter: 0.155" (3.94mm)
• Tab Thickness: 0.032" (0.81mm)
• Base Product Number: DNFR14
