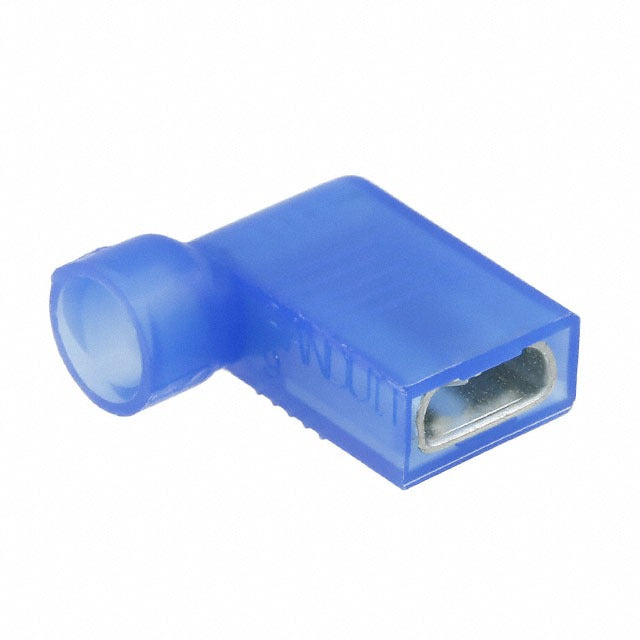

Panduit DNFR14-206FIB-C Quick Connect Female Crimp Connector Fully Insulated (0.187 inches/0.205 inches Tab, 90° Angle, Bulk)

Product Description

Panduit DNFR14-206FIB-C is a fully insulated Pan-Term quick connect female crimp connector for 14–16 AWG conductors. It features two tab widths (0.187 in / 0.205 in) on a 90° angled flag terminal with a brass contact and tin finish. The connector has a 0.178 in insulation diameter, 0.020 in tab thickness, and is supplied in bulk for free-hanging or right-angle mounting.

• Fully insulated Pan-Term female quick connect for 14–16 AWG; termination type: crimp
• Two tab widths: 0.187" (4.75 mm) and 0.205" (5.21 mm); tab thickness 0.020" (0.51 mm)
• Brass contact with tin finish; insulation diameter 0.178" (4.52 mm); angled 90° flag mounting; bulk packaging

Product Highlights

Pan-Term series, fully insulated female quick connect; 14–16 AWG; dual tab widths and 90° angled flag design.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: DNFR14-206FIB-C
