Panduit DNF18-250M-C Male Tab Wire Disconnect

Brand: PANDUIT
SKU: DNF18-250M-C
Availability: In Stock

Ships same day if ordered by 12 pm
$120.49
$120.49
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

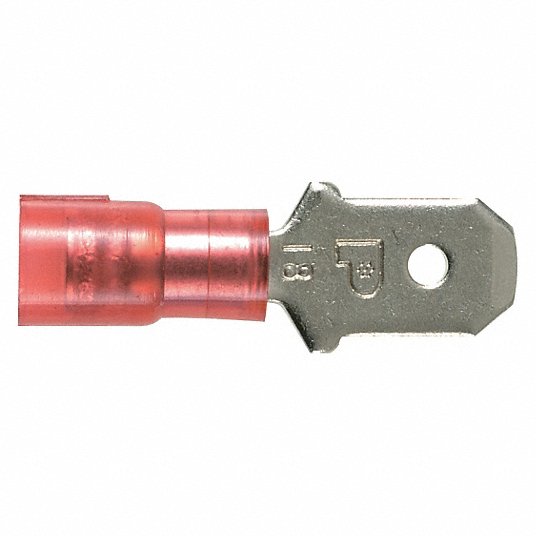

The Panduit DNF18-250M-C is a vibration resistant male tab disconnect made of copper with nickel plating. It features barrel insulation in a red, nylon housing. This disconnect helps prevent wire strands from falling out and protects the connection from short circuits. It supports a wire range of 22-18 AWG.

  • Vibration resistant
  • Made of copper and is nickel-plated
  • Supports a wire range of 22-18 AWG
  • Metal Insulation Grip Sleeve Crimps to Wire Insulation

Product Highlights

The Panduit DNF18-250M-C male tab disconnect offers a secure and protected connection for a range of wiring applications.

Product Information

Standard Information

  • Brand: PANDUIT
  • Manufacturer Part Number: DNF18-250M-C
  • Country of Origin: Mexico
Technical Specifications
Manufacturer
Panduit
Manufacturer Part Number
DNF18-250M-C
Category
Connectors, Interconnects
Termination
Crimp
Wire Gauge
18-22 AWG
Series
Pan-Term ®
Insulation
Non-Mating End Insulated
Packaging
Bulk
Mounting Type
Free Hanging (In-Line)
Part Status
Active
Features
Serrated Termination
Terminal Type
Standard
Contact Material
Copper
Tab Width
0.250" (6.35mm)
Contact Finish
Nickel
Tab Thickness
0.032" (0.81mm)
Insulation Diameter
0.138" (3.51mm)
Length - Overall
0.900" (22.86mm)
Base Product Number
DNF18
Terminals
Quick Connects, Quick Disconnect Connectors
Maximum Operating Temperature
105 °C, 221 °F
Material
Copper
Finish/Coating
Nickel
Insulation Material
Nylon - Barrel Insulated
Minimum Wire Size
18 AWG
Wire Size
18 AWG
Wire Insulation Diameter
.14 in, 3.5 mm
Barrel Type
Insulation Grip Sleeve
Finish
Nickel
Product Type
Male Tab Disconnect
Tab Size
.25 in, 6.3 mm
Brand
PANDUIT
Barrel ID
0.08 in
Barrel Size
Standard
Barrel Style
Funnel Entry
Disconnect Style
Quick Disconnect
Disconnect Type
Male Tab
Flammability Rating
HB; V-2
Insulation Color
Red
Insulation Coverage
Partial Coverage
Maximum Temperature
221 °F
Maximum Voltage
600 V
Overall Length
0.9 in
Package Qty
100
Seam Style
Seamless
Special Features
Metal Insulation Grip Sleeve Crimps to Wire Insulation, Providing Protection to the Crimp Joint During High Vibration Applications; Serrated Internal Barrel; Vibration Resistant
Standards
C22.2 No.153; CSA Certified LR31212; UL 310 Listed; UL Listed 20H3 E78522
Strip Length
1/4 in
Termination Style
Crimp
UNSPSC
39121409
Minimum Temperature
-60 °F
