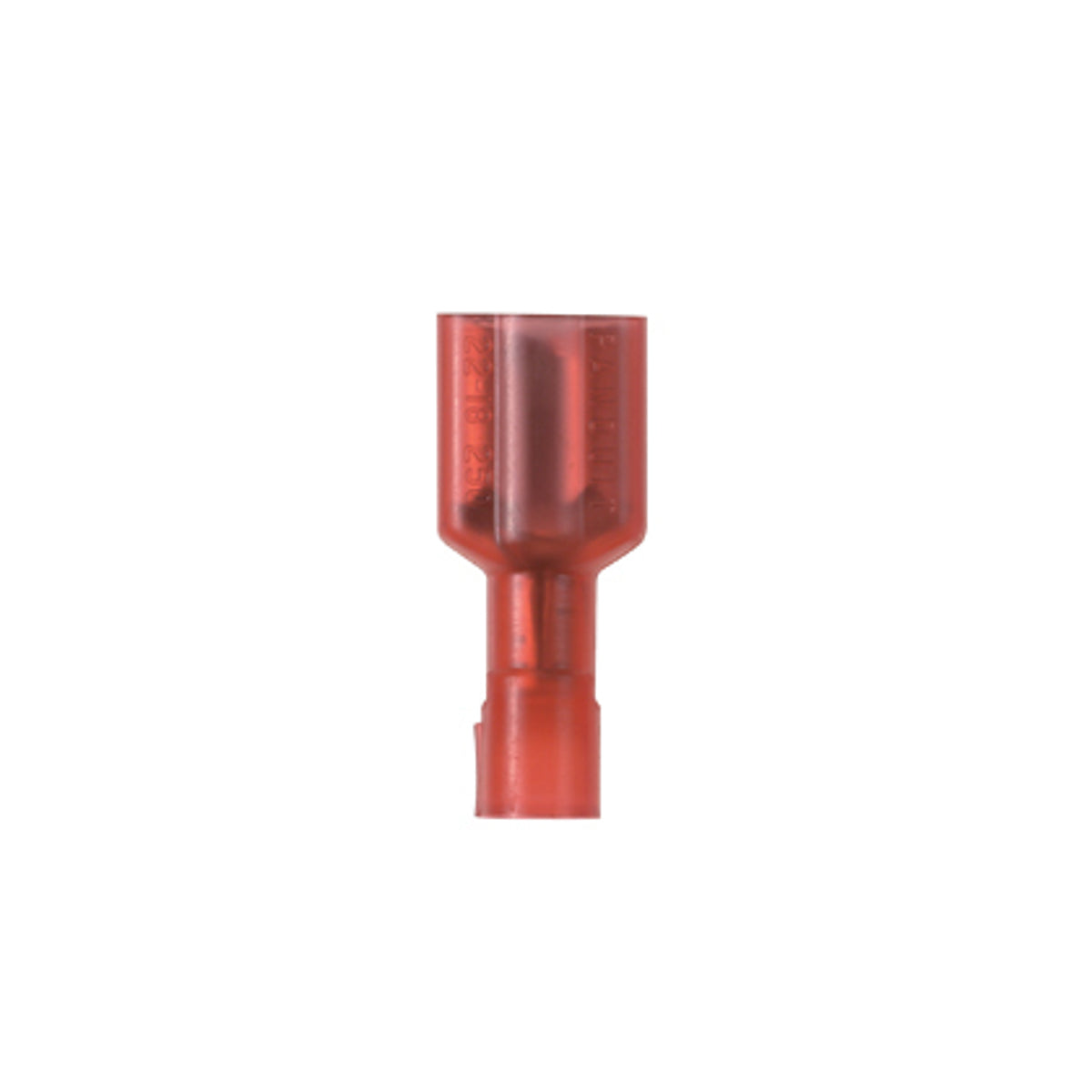

Panduit DNF18-250FIB-C Female Disconnect

Product Description

The Panduit DNF18-250FIB-C is a female disconnect designed for reliable electrical connections. This component features a funnel entry for ease of use and a fully insulated body, ensuring safety during operation. The internal wire stop ensures that wires are inserted to the proper length, which enhances the quality of the connection. The barrel is serrated to provide optimal wire contact and strength, allowing for effective performance.

• Funnel entry design for quick wire insertion
• Fully insulated construction for safety
• High tensile strength with serrated barrel

Product Highlights

The DNF18-250FIB-C is ideal for making quick and secure connections in various electrical systems.

Product Information

Standard Information

• Manufacturer: Panduit
• Part Number: DNF18-250FIB-C

Technical Specifications

• Type: Copper - Other
• Voltage Rating: 600 V
• Temperature Rating: 221 Degrees Fahrenheit (105 Degrees Celsius)
• Wire Size: #18 AWG
• Insulation Material: Nylon
• Color: Red
• Material: Brass
• Standards/Approvals: UL 310, CSA 22.2 No.153
