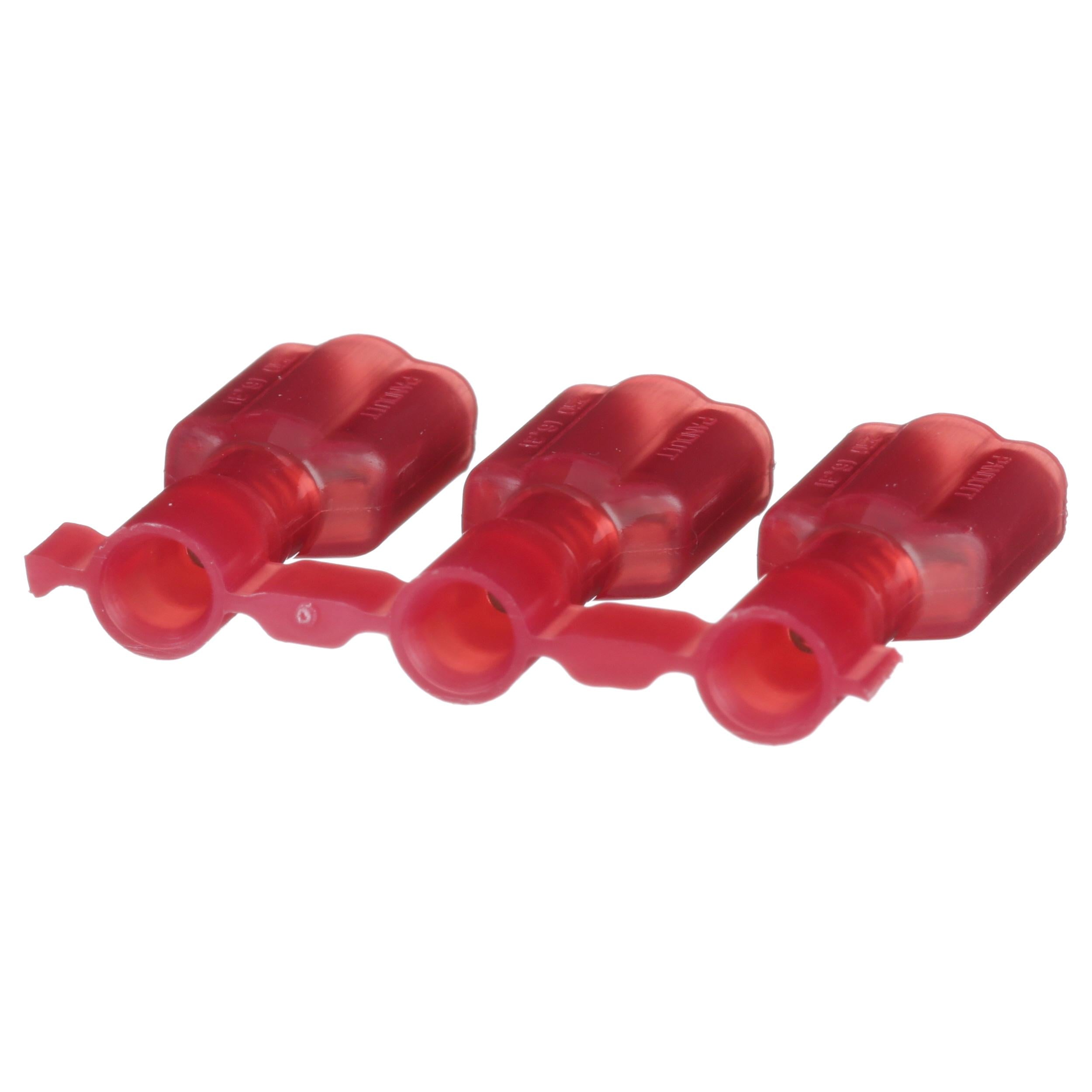

Panduit DNF18-250FIB-3K Female Disconnect

Product Description

The Panduit DNF18-250FIB-3K Female Disconnect is designed for reliable electrical connections. This product is a molded, insulated female disconnect with funnel entry for quick wire insertion. It is suitable for applications requiring high-quality terminations and ease of use.

• Fully insulated design protects against electrical shorts.
• Compatible with standard male tabs for ease of use.
• Internal wire stop ensures proper wire insertion into the terminal barrel.

Product Highlights

This disconnect allows tool-free insertion and removal, reducing installation costs. The internal design features serrations to enhance contact and prevent tension loss.

Product Information

Standard Information

• Brand: Panduit
• MPN: DNF18-250FIB-3K

Technical Specifications

• Type: Type DNF-FIB Reel Vibration-Resistant
• Conductor Size: 18 AWG
• Voltage Rating: 600 V
• Temperature Rating: 221 Degrees Fahrenheit
• Color: Red
• Material: Brass
• Insulation: Fully Insulated
• Finish: Tin-Plated
• Dimensions: 0.84 inches L x 0.35 inches W x 0.22 inches H
