Panduit DNF18-188FIB-C Conn QC RCPT 18-22AWG 0.187

Product Description

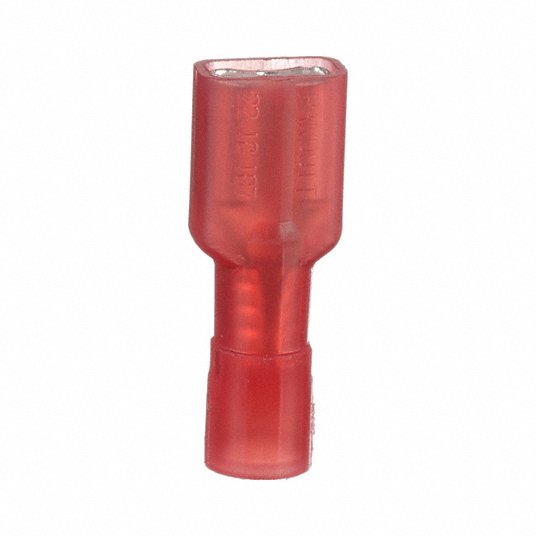

The PANDUIT DNF18-188FIB-C is a quick connect female disconnect. These fully insulated disconnects feature a protective wrap around their barrel and terminal, helping to prevent accidental contact and prevent wire strands from falling out. The fully insulated body protects the connection from electrical noise, short circuits, and corrosion damage.

• Serrated Termination
• Fully Insulated
• Funnel entry

Product Highlights

The DNF18-188FIB-C female disconnect is nylon fully insulated and supports 22 - 18 AWG wire size.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: DNF18-188FIB-C
• Country of Origin: Mexico

Technical Specifications

• Category: Connectors, Interconnects
• Terminals: Quick Connects, Quick Disconnect Connectors
• Termination: Crimp
• Manufacturer: Panduit Corp
• Wire Gauge: 18-22 AWG
• Series: Pan-Term
• Insulation: Fully Insulated
• Packaging: Bulk
• Mounting Type: Free Hanging (In-Line)
• Part Status: Active
• Features: Serrated Termination
• Terminal Type: Standard
• Color: Red
• Gender: Female
• Contact Material: Brass
• Tab Width: 0.187" (4.75mm)
• Contact Finish: Tin
• Tab Thickness: 0.020" (0.51mm)
• Insulation Diameter: 0.136" (3.45mm)
• Length - Overall: 0.780" (19.81mm)
• Base Product Number: DNF18
• RoHS Status: ROHS3 Compliant
• ECCN: EAR99
• Moisture Sensitivity Level (MSL): Not Applicable
• HTSUS: 8536.90.4000
• REACH Status: REACH Unaffected
• Mfr. #: DNF18-188FIB-C
• Mfr.: Panduit
• Barrel Style: Funnel Entry
• Disconnect Style: Quick Disconnect
• Disconnect Type: Female Socket
• Display Sell UOM: PK
• Flammability Rating: HB
• Insulation Color: Red
• Insulation Coverage: Full Coverage
• Insulation Material: Nylon
• Maximum Temperature: 221 F
• Maximum Voltage: 600 V
• Maximum Wire Size: 18 AWG
• Minimum Wire Size: 22 AWG
• Overall Length: 0.78 in
• Package Qty: 100
• Seam Style: Butted
• Standards: ARRA; CSA LR31212, C22.2 No.153; RoHS; UL 310, UL 20H3 E78522
• Strip Length: 5/16 in
• Material: Copper, Nylon
• Allowable Gauge Range: 22 - 18
• ADI Part Number: P9-18188FIBC
• Brand Name: Panduit
• Packaged Quantity: 100
• Product Name: Terminal Connector
• Product Type: Terminal Connector
• American Wire Gauge: 18AWG
• Contact Plating: Tin
• Width: 0.3"
• Length: 0.78"
