Panduit DNF18-188-M Conn QC RCPT 18-22AWG 0.187

Product Description

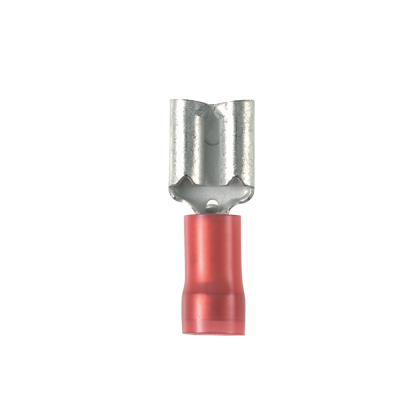

The PANDUIT DNF18-188-M is a 0.187" (4.75mm) quick connect female crimp connector designed for 18-22 AWG wires. It features a non-mating end insulation and serrated termination for a secure connection. This vibration resistant female disconnect is made of brass and is tin-plated. It has a tab size of 0.187 x 0.020".

• Serrated Termination
• Vibration resistant
• Supports a wire range of 22-18 AWG

Product Highlights

The PANDUIT DNF18-188-M ensures reliable electrical connections with its durable construction and user-friendly design.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: DNF18-188-M

Technical Specifications

• Category: Connectors, Interconnects
• Terminals: Quick Connects, Quick Disconnect Connectors
• Termination: Crimp
• Manufacturer: Panduit Corp
• Wire Gauge: 18-22 AWG
• Series: Pan-Term ®
• Insulation: Non-Mating End Insulated
• Packaging: Bulk
• Mounting Type: Free Hanging (In-Line)
• Part Status: Obsolete
• Features: Serrated Termination
• Terminal Type: Standard
• Color: Red
• Gender: Female
• Contact Material: Brass
• Tab Width: 0.187" (4.75mm)
• Contact Finish: Tin
• Tab Thickness: 0.020" (0.51mm)
• Insulation Diameter: 0.137" (3.48mm)
• Length - Overall: 0.760" (19.30mm)
• Base Product Number: DNF18
• Product Category: Products
• Connectors: Crimp Terminals, Housings, Splices, & Lugs
• Crimp Terminals, Housings, & Splices: Crimp Quick Disconnect Tab Terminals
• Maximum Operating Temperature: 194 °F, 90 °C
• Material: Brass
• Finish/Coating: Tinned
• Insulation Material: Nylon - Barrel Insulated
• Minimum Wire Size: 18 AWG
• Wire Size: 18 AWG
• Barrel Type: Insulation Grip Sleeve
• Finish: Tinned
• Product Type: Female Disconnect
• Tab Size: .19 in, 4.8 mm
• SKU: PANDNF18-188-M
• UNSPSC Code: 26120000
• Brand: PANDUIT
