Panduit DNF14250FIBC Splice Connector, 1 x Terminal Female, 100

Product Description

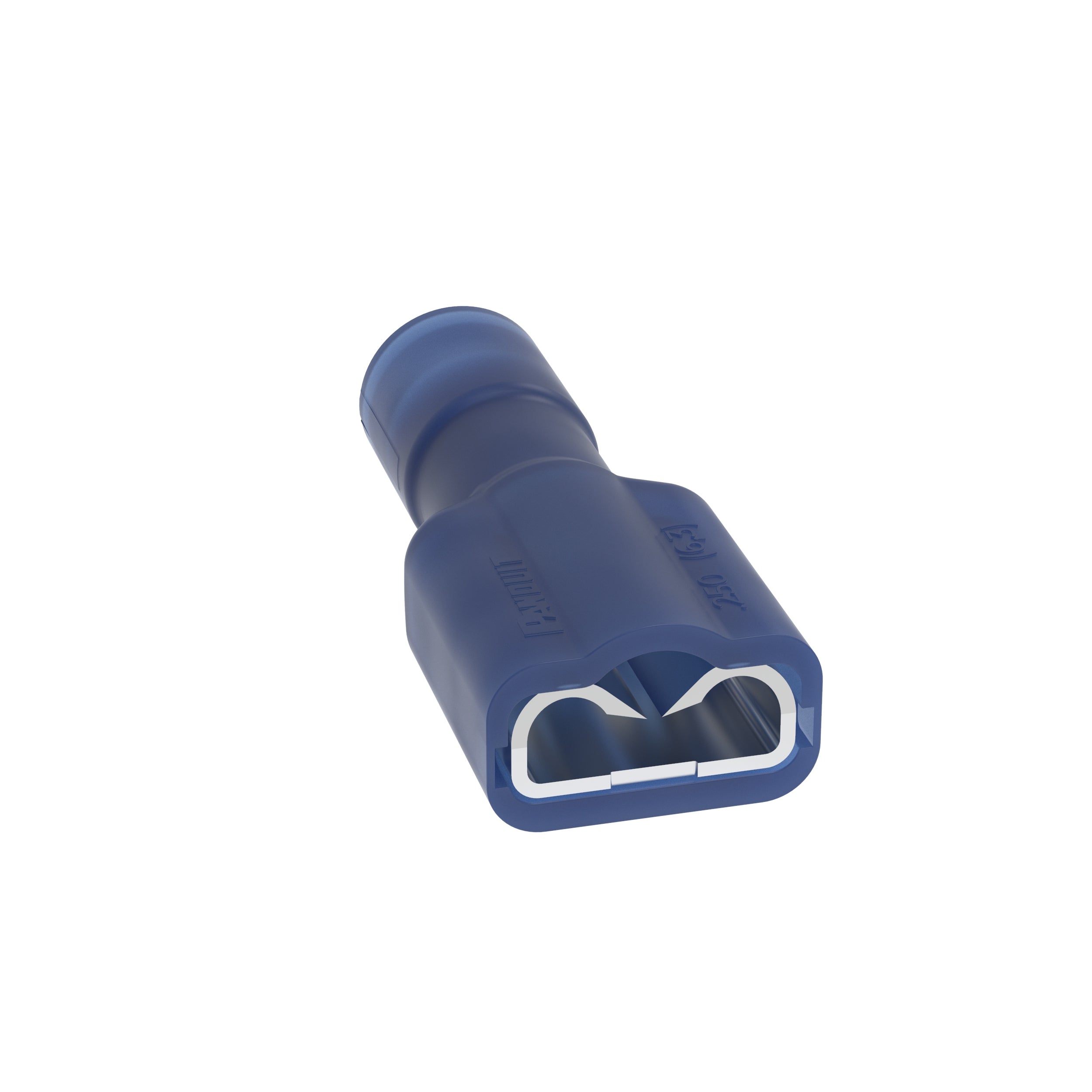

Panduit DNF14-250FIB-C is a female disconnect that ensures reliable electrical connections. This connector has a funnel entry design for easy wire insertion and is made from durable brass with a tin plating that provides a strong connection. The fully insulated blue nylon housing protects against electrical shorts.

• Supports wire sizes ranging from 16 to 14 AWG
• Dimensions: Length is 0.84 inches, width is 0.35 inches
• Packaged in bottles of 100 for convenience

Product Highlights

Ideal for various electrical applications, the disconnect features a butted seam barrel construction that improves the quality of the connection.

Product Information

Standard Information

• Brand: Panduit
• Manufacturer: PANDUIT CORP

Technical Specifications

• Connector Type: Terminal Female
• Connection: Funnel Entry
• Material: Brass
• Insulation: Nylon
• Voltage Rating: 600 V
• Temperature Rating: 221 Degrees Fahrenheit (105 Degrees Celsius)
• Tab Size: 0.250 x 0.032 inches (6.3 x 0.8 mm)
• Packaged Quantity: 100
