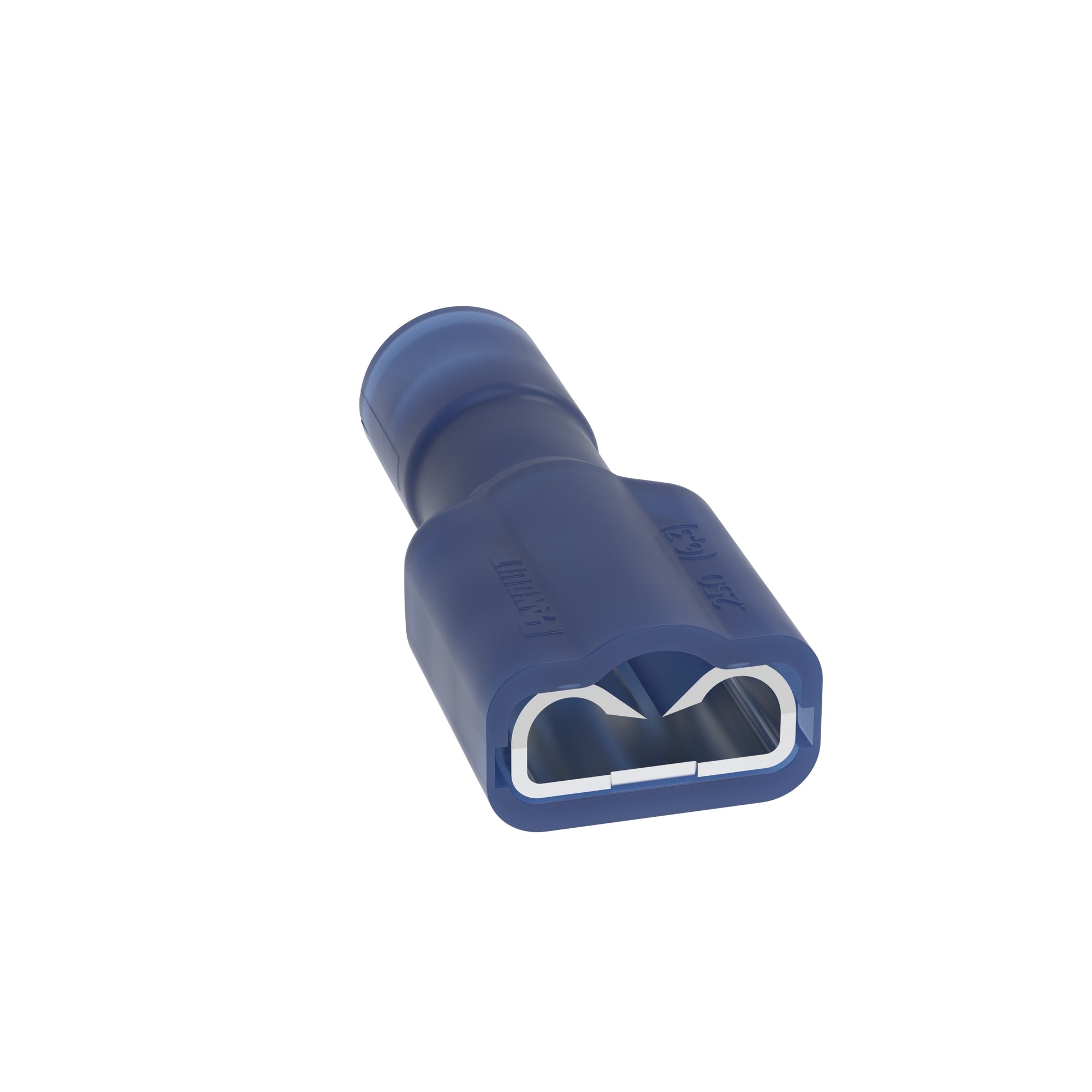

Panduit DNF14250FIBC Splice Connector, 1 x Terminal Female, 100

Product Description

The Panduit DNF14-250FIB-C splice connector is a reliable choice for quick electrical connections. This female disconnect is made from brass and has a tin-plated finish. It features a fully insulated blue nylon housing. The connector supports a wire range of 16 to 14 AWG. It has a tab size of 0.250 x 0.032 inches. The design includes a funnel entry for easier wire insertion, and it provides a secure connection in high vibration environments.

• Vibration resistant design for secure connections
• Funnel entry for easy installation
• Comes packaged in bottles of 100 units

Product Highlights

This product is ideal for projects requiring reliable electrical connections with a quick installation process.

Product Information

Standard Information

• Brand: Panduit
• Manufacturer Part Number: DNF14-250FIB-C

Technical Specifications

• Material: Brass
• Insulation Type: Nylon
• Connector Type: Terminal Female
• Wire Size Compatibility: 16-14 AWG
• Tab Size: 0.250 x 0.032 inches
• Dimensions: 0.84 inches long x 0.35 inches wide
• Voltage Rating: 600V
• Temperature Rating: 221 degrees Fahrenheit (105 degrees Celsius)
• Packaged Quantity: 100 units
