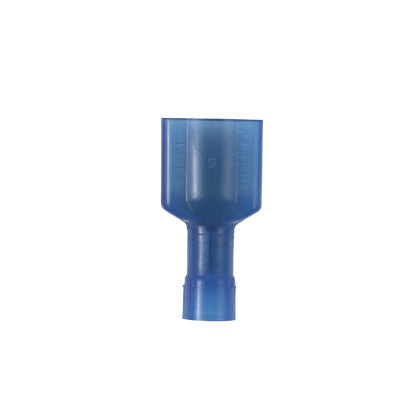

Panduit DNF14-250FIMB-Q Loose Piece Disconnect

Product Description

The Panduit DNF14-250FIMB-Q is a loose piece disconnect designed for reliability. This product features a barrel insulated design, crafted to support stranded conductors within a range of sixteen to fourteen AWG. The tab dimensions are 0.25 inches by 0.032 inches, fitting standard connectors seamlessly. This disconnect operates safely under a voltage rating of six hundred volts and has a temperature rating of two hundred twenty-one degrees Fahrenheit.

• Fully insulated nylon housing
• Nickel-plated brass construction
• Compatible with standard barrel configurations

Product Highlights

Ideal for various electrical applications where secure and insulated connections are critical. The disconnect ensures protection against electrical shorts while providing a reliable modular design that aids in quick connections and disconnections without tools.

Product Information

Standard Information

• Brand: Panduit
• Manufacturer Part Number: DNF14-250FIMB-Q

Technical Specifications

• Material: Brass
• Insulation: Nylon
• Color: Blue
• Dimensions: 0.91 inches x 0.45 inches
• Voltage Rating: 600 VAC
• Conductor Size: 16 to 14 AWG
• Temperature Rating: 221 Degrees Fahrenheit
• Tab Size: 0.25 inches W x 0.032 inches THK
• Type: Barrel Insulated Loose Piece Vibration-Resistant
• Brand: Pan-Term
