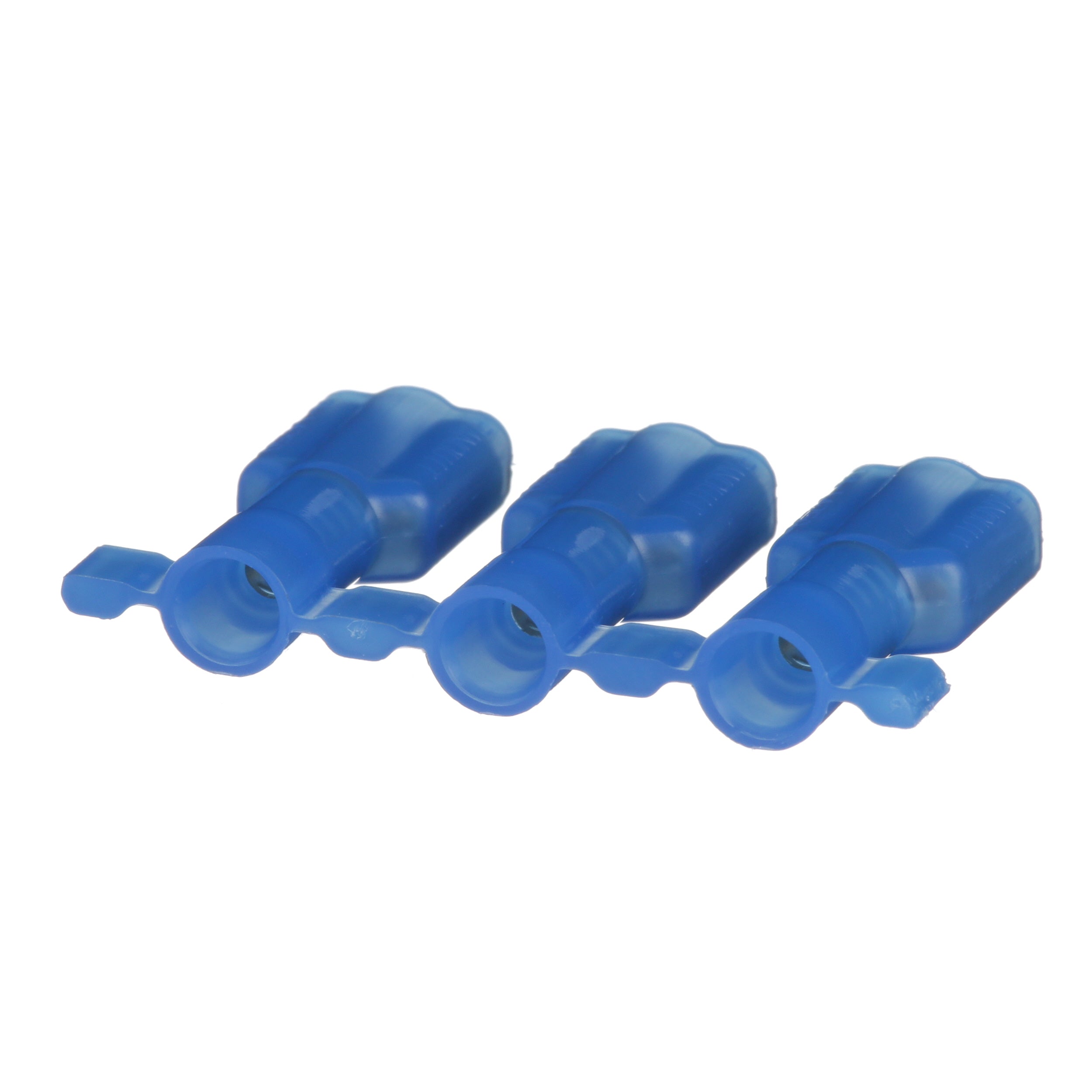

Panduit DNF14-250FIB-3K Female Disconnect 600V 0.25 x 0.032

Product Description

The Panduit DNF14-250FIB-3K is a female disconnect designed for reliable connection in various applications. This device offers a continuously molded and fully insulated construction featuring a funnel entry for easy wire insertion. The design allows for consistent processing through Panduit applicators. The internal wire stop ensures an accurate wire insertion length, improving connection quality and minimizing installation time.

• Type: Female Disconnect
• Voltage Rating: 600V
• Wire Size Compatibility: 14 AWG

Product Highlights

This product is suitable for use in electrical applications requiring high reliability and efficiency. The funnel entry design aids in quick and easy insertion while the fully insulated construction guarantees safety during operation.

Product Information

Standard Information

• Manufacturer: Panduit
• Catalog Number: DNF14-250FIB-3K

Technical Specifications

• Conductor Type: Stranded
• Material: Brass
• Color: Blue
• Insulation: Nylon
• Finish: Tin-Plated
• Temperature Rating: 221 Degrees Fahrenheit (105 Degrees Celsius)
• Dimensions: 0.84 inches length x 0.35 inches width x 0.22 inches height
• Tab Size: 0.25 inches width x 0.032 inches thickness
• Type: Butted Seam/Funnel Entry
