Panduit DNF10-250FIMB-Q Disc M Nyl 12-10AWG .250x.032 BS PK25

Product Description

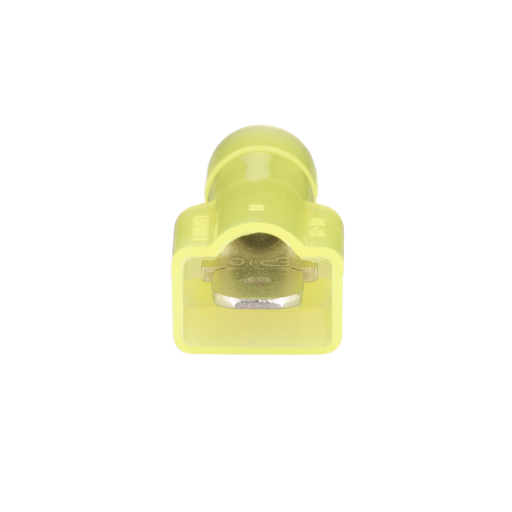

The Panduit DNF10-250FIMB-Q is a fully insulated male tab disconnect, designed for robust connectivity in various electrical applications. This disconnect is made of copper and features a nickel-plated finish. It comes within a yellow nylon housing, ensuring durability and ease of use. The tab size measures 0.250 x 0.032 inches, making it compatible with wire sizes ranging from twelve to ten AWG.

• Fully insulated for protection against electrical shorts
• Standard barrel configuration with a butted seam
• Supports a temperature rating of 221 degrees Fahrenheit

Product Highlights

The product features a standard design that allows for easy insertion and removal from compatible terminals without the need for tools, resulting in lower installed costs. The oversized nylon housing ensures a tight grip around the wire for maximum strain relief.

Product Information

Standard Information

• Manufacturer: Panduit
• Part Number: DNF10-250FIMB-Q

Technical Specifications

• Type: Fully Insulated Loose Piece Vibration-Resistant
• Wire Range: 12-10 AWG
• Tab Size: 0.250 x 0.032 inches
• Length: 0.96 inches
• Width: 0.22 inches
• Material: Copper
• Insulation Material: Nylon
• Voltage Rating: 600 VAC
• Temperature Rating: 221 Degrees Fahrenheit (105 Degrees Celsius)
• Standard: UL 310 Listed, CSA Certified
