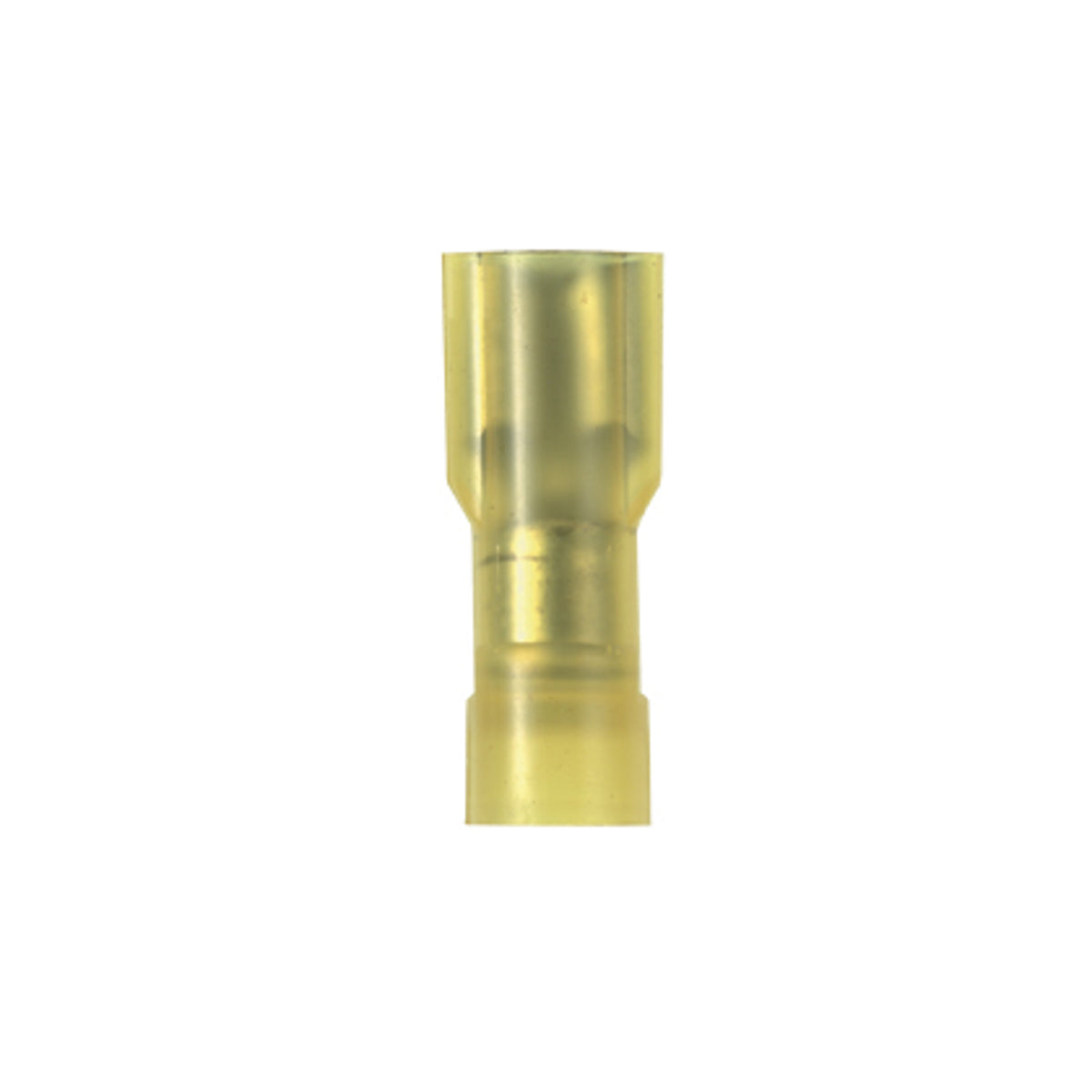

Panduit DNF10-250FIB-L Female Disconnect

Product Description

The Panduit DNF10-250FIB-L Female Disconnect is designed for quick and reliable electrical connections. This fully insulated disconnect provides protection from electrical shorts and can be easily inserted and removed from the male tab without the use of tools. It accommodates wire sizes of twelve to ten AWG and features a butted seam design along with a funnel entry for ease of use.

• Compatible with #10 AWG wire
• Rated up to 600 volts
• Meets UL and CSA standards

Product Highlights

This disconnect is ideal for low-cost installations and enhances connection quality with its internal wire stop, ensuring proper length of insertion into the terminal barrel.

Product Information

Standard Information

• Brand: Panduit
• Part Number: DNF10-250FIB-L

Technical Specifications

• Material: Brass
• Color: Yellow
• Insulation: Nylon
• Voltage Rating: 600 V
• Temperature Rating: 221 degrees Fahrenheit (105 degrees Celsius)
• Dimensions: 0.96 inches long x 0.35 inches wide x 0.23 inches high
• Wire Size: #10 AWG
• Tab Size: 0.250 inches x 0.032 inches
• Standards: UL 310, CSA 22.2 No.153
